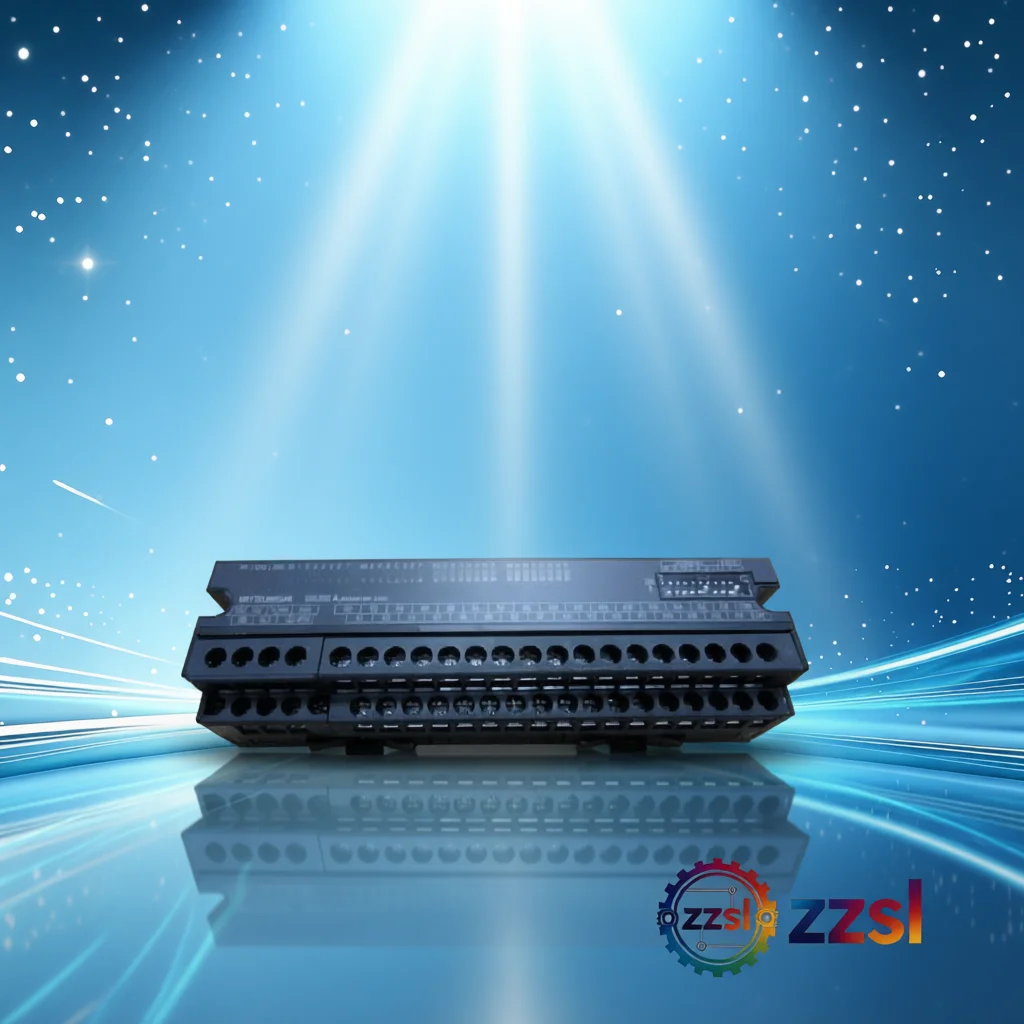

Mitsubishi Remote I AJ65SBTB1-32D
Home > Products > Mitsubishi > CC-Link Remote I/O Need Mitsubishi AJ65SBTB1-32D? Remote I for MELSEC-A Series, CC-Link Network. Supplied with full tra…
Contact us for current availability and best price of AJ65SBTB1-32D.
Specifications
| Brand | Mitsubishi |
|---|---|
| Model Number | AJ65SBTB1-32D |
| Official Product Name | CC-Link Remote I/O Module (DC Input) |
| Applicable System | MELSEC-A Series, CC-Link Network |
| Product Type | Remote I/O Module |
| Equivalent Standard | CC-Link (IEC 61158) |
| Product Status | In Stock |
| Rated Input Voltage | 24VDC |
| Rated Input Current | Approx. 7mA per point |
| Minimum ON Voltage | 15VDC |
| Maximum OFF Voltage | 5VDC |
| Response Time (OFF→ON) | 0.1ms |
| Response Time (ON→OFF) | 0.2ms |
| Communication Speed | Up to 10 Mbps |
| Number of Occupied Stations | 1 station |
| Power Supply Voltage | 24VDC (external) |
| Current Consumption | 50mA (internal) |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 75°C |
| Mounting Method | DIN rail |
| Input Points | 32 points (DC input) |
Product Description
It provides 32 DC input points (sink/source type) with a rated input voltage of 24VDC. The module supports CC-Link communication at speeds up to 10 Mbps, enabling fast and reliable data exchange with a master station. Its compact design and DIN rail mounting capability make it suitable for distributed control applications. The AJ65SBTB1-32D features a response time of 0.1ms (OFF to ON) and 0.2ms (ON to OFF), ensuring quick signal processing. It has a rated input current of approximately 7mA per point at 24VDC, with a minimum ON voltage of 15VDC and a maximum OFF voltage of 5VDC. The module is equipped with LED indicators for power and I/O status, simplifying diagnostics and maintenance. This module is part of Mitsubishi's MELSEC-A series and is widely used in factory automation, process control, and material handling systems. It is compatible with CC-Link master stations such as the QJ61BT11N and AJ61BT11. The AJ65SBTB1-32D is a reliable and cost-effective solution for expanding I/O capacity in existing CC-Link networks. The Mitsubishi AJ65SBTB1-32D is a CC-Link remote I/O module designed for industrial automation systems.
Basic Product Information
- CC-Link communication up to 10 Mbps
- Rated input voltage: 24VDC
- LED indicators for power and I/O status
- Compact design for space-saving installation
- 32 DC input points (sink/source type)
Technical Specifications
Version & Model Difference
The AJ65SBTB1-32D is part of the AJ65SBTB1 series. There are no major version differences, but later revisions may have improved component tolerances. The AJ65SBTB1-32D is the standard model with 32 DC inputs. Other models in the series include the AJ65SBTB1-16D (16 inputs) and AJ65SBTB1-32T (32 transistor outputs). The 'D' suffix indicates DC input type.
