Mitsubishi · PLC Module
FX3U-48MRDS

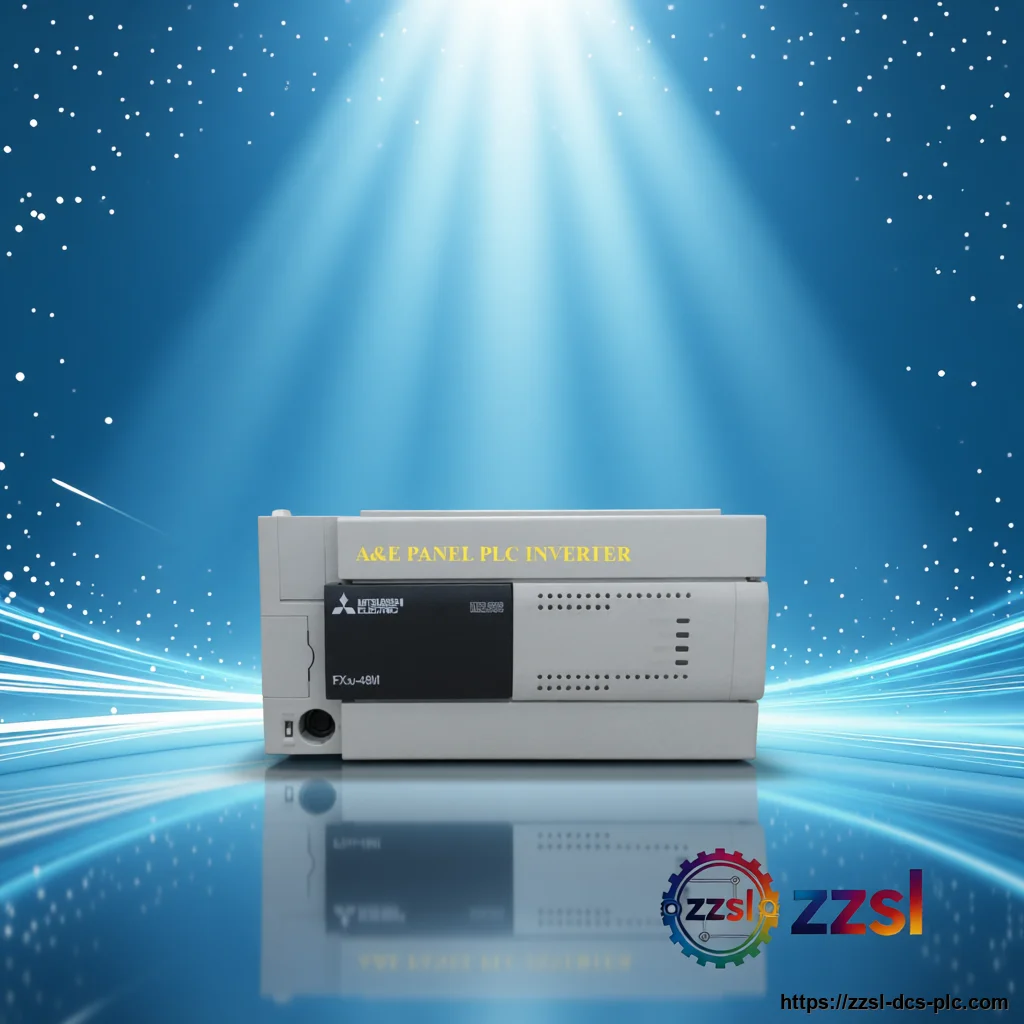

Mitsubishi Programmable logic controller base FX3U-48MR/DS
Mitsubishi
Mitsubishi Programmable logic controller base FX3U-48MR/DS
['Home', 'PLC', 'Mitsubishi MELSEC FX', 'FX3U', 'FX3U-48MR/DS'] Need Mitsubishi FX3U-48MR/DS? Programmable lo…
Specifications
| Brand | Mitsubishi Electric |
|---|---|
| Model Number | FX3U-48MR/DS |
| Official Product Name | MELSEC-F FX3U PLC Base Unit |
| Applicable System | Factory automation / PLC control |
| Product Type | Programmable logic controller (PLC) base unit |
| Equivalent Standard | CE / UL / cUL |
| Product Status | Active |
| Integrated digital inputs | 24 (DC 24 V) |
| Integrated digital outputs | 24 (relay) |
| Total I/O points | 48 |
| Program memory | 64 K steps |
| Local I/O points | 256 |
| Local + remote I/O points | 384 |
| Power consumption | 35 W |
| Protection class | IP10 |
| Dimensions (W x H x D) | 182 x 90 x 86 mm |
| Weight | 0.85 kg |
| Power supply | 24 V DC |
Product Description
Basic Product Information
- 24 relay outputs (total 48 points)
- DC 24 V power supply
- 64 K steps program memory (RAM)
- Built-in USB and RS-422 interfaces, expandable
- 24 DC 24 V sink/source inputs
Technical Specifications
Version & Model Difference
- ['FX3U-48MR/DS (DC supply, relay out) vs FX3U-48MT/DS (DC supply, transistor out): output type differs.', 'The /DS suffix denotes DC-powered sink/source input with relay outputs.']
Application Scenarios
- Machine and process control
- Conveyor and packaging automation
- Building and facility management
- Yes, local I/O up to 256 points and total local plus remote up to 384 points.
