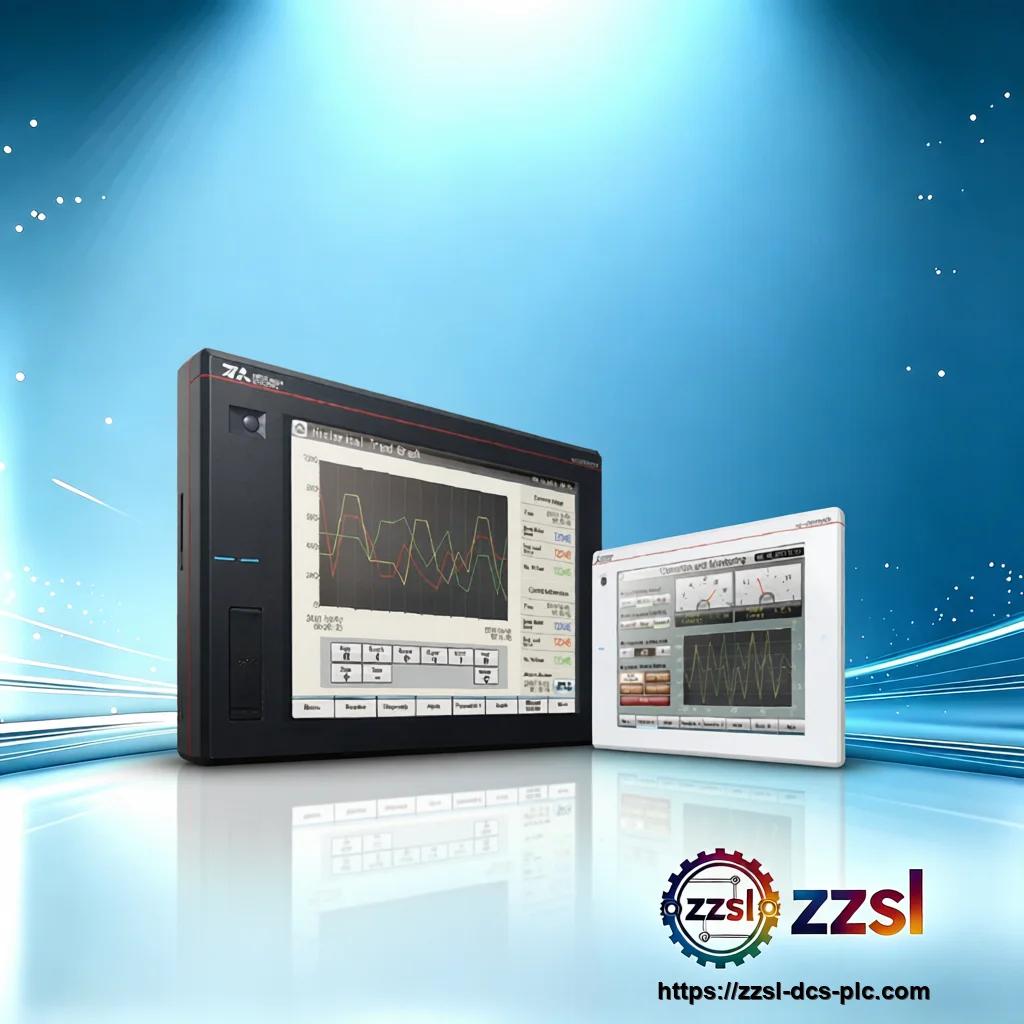

Mitsubishi Touch panel HMI GT2715-XTBA
DISPLAYGT2715-XTBAMITSHUBISHI
Mitsubishi
Mitsubishi Touch panel HMI GT2715-XTBA
Home > Mitsubishi > HMI / GOT Touch Panels > GT2715-XTBA Need Mitsubishi GT2715-XTBA? Touch panel HMI for MELSEC PLC / FA control systems. Supplied wi…
Contact us for current availability and best price of DISPLAYGT2715-XTBAMITSHUBISHI.
Specifications
| Brand | Mitsubishi (Mitsubishi Electric) |
|---|---|
| Model Number | GT2715-XTBA |
| Official Product Name | GOT2000 Series GT27 Graphic Operation Terminal GT2715-XTBA |
| Applicable System | MELSEC PLC / FA control systems (GOT2000 HMI) |
| Product Type | Touch panel HMI / graphic operation terminal |
| Equivalent Standard | Successor GT3715-XRBA (GT37 series); contact us for cross-reference and alternatives |
| Product Status | In Stock |
| Display Size | 15 inch |
| Resolution | 1024 x 768 pixels (XGA) |
| Display Type | TFT colour LCD, 65536 colours, LED backlight |
| Touch Panel | Analog resistive film digitizer, multi-touch gesture support |
| Supply Voltage | 100 V AC to 240 V AC |
| Internal Memory | 57 MB ROM, 128 MB RAM |
| Interfaces | 2 x USB Type A (host), USB mini-B (device), RS-232 (9-pin D-sub male), RS-422/485 (9-pin D-sub female), RJ45 Ethernet, SD card slot |
| Communication Protocol | RS-232, RS-422, RS-485, Ethernet, CC-Link |
| Panel Colour | Black frame |
| Degree of Protection | IP67 |
| Mounting Mode | Flush / panel mounting |
| Dimensions (W x H x D) | 397 x 300 x 60 mm |
| Weight | approx. 4.5 kg |
| Conformance | UL, cUL, CE (EMC/LVD/RoHS), KC, LR, NK, DNV, ABS, RINA, BV |
| Series / Family | GOT2000 series, GT27 sub-range |
Product Description
It offers multi-touch gesture functions such as pinch-zoom and scroll, and supports two-point operation to prevent accidental commands on critical switches. Ethernet, RS-232, RS-422/485, USB host/device and an SD memory card slot are all standard, plus CC-Link communication. A 100-240 VAC supply, IP67 protection and a backup/restore function for controller programs make it suited to factory-floor panels. The GT2715-XTBA is a 15-inch GOT2000 series graphic operation terminal (HMI) from Mitsubishi Electric's GT27 line, with a 1024 x 768 XGA TFT colour display in 65536 colours and an LED backlight.
Basic Product Information
- Advanced model with multi-touch gesture functions including zoom, scroll and two-point operation for critical commands
- Standard Ethernet, RS-232, RS-422/485, USB host and USB device interfaces plus SD memory card slot
- CC-Link communication capability and high-capacity data processing for logging, script, alarm and device data transfer
- Backup/restore function to save and batch-restore PLC programs and parameters via SD card or USB memory
- Black frame, flush panel mounting and IP67 degree of protection
- 15-inch XGA (1024 x 768) TFT colour LCD, 65536 colours, LED backlight with analog resistive film touch digitizer
Technical Specifications
Version & Model Difference
Within the GT27 range the GT2715-XTBA is the 15-inch multi-touch model; the GT2715-XTBA-040 is a version without the extension interface, and GT2710/GT2712 are the smaller 10.4-inch and 12.1-inch siblings. The later GT37 series (e.g. GT3715-XRBA) is listed as the successor model. A (C) coated-frame variant exists (material number 291777). All units share the GOT2000 software platform, so screen data is portable across sizes with adjustment.
Application Scenarios
- Machine control panels and operator stations on factory automation lines
- Production data display, alarm management and recipe handling in manufacturing cells
- PLC program and parameter backup/restore for maintenance and troubleshooting
- Process monitoring in packaging, assembly, machine-tool and material-handling systems
- Mitsubishi QX41P 32-Point DC Input Module (MELSEC-Q Series)
- Mitsubishi CM450DX1-24A 1200 V 450 A IGBT Module
- Mitsubishi GT1455-QTBDE GOT1000 5.7-Inch TFT Touch Screen HMI
- Mitsubishi FR-A8ERS-60 RS-485 Communication Option Board
- Mitsubishi FR-D720S-042SC-EC FR-D700 Inverter
- Mitsubishi Electric SBB172FABMC DC Inverter Rotary Compressor (R134A)
- Mitsubishi FX3U-48MR/DS PLC CPU Unit (24I/24O Relay)
- Mitsubishi FX5U-32MR/ES MELSEC iQ-F PLC CPU Unit
Frequently Asked Questions
What display does the GT2715-XTBA use?
It has a 15-inch XGA (1024 x 768 pixel) TFT colour LCD with 65536 colours and an LED backlight, fitted with an analog resistive film touch panel that supports multi-touch gestures.
Which controllers can the GT2715-XTBA connect to?
As a GOT2000 GT27 HMI it connects to Mitsubishi MELSEC FX, Q, L and iQ-R series PLCs, and to third-party controllers via RS-232, RS-422/485, Ethernet or CC-Link.
Does it support backup and restore of PLC data?
Yes. The backup/restore function saves CPU programs and parameters to an SD memory card or USB memory, and can batch-restore them to the controller after a CPU failure.
What power supply and protection rating does it require?
It operates on 100 to 240 V AC and carries an IP67 protection rating for the front panel when flush-mounted.
