MDX61B0150-503-4-00

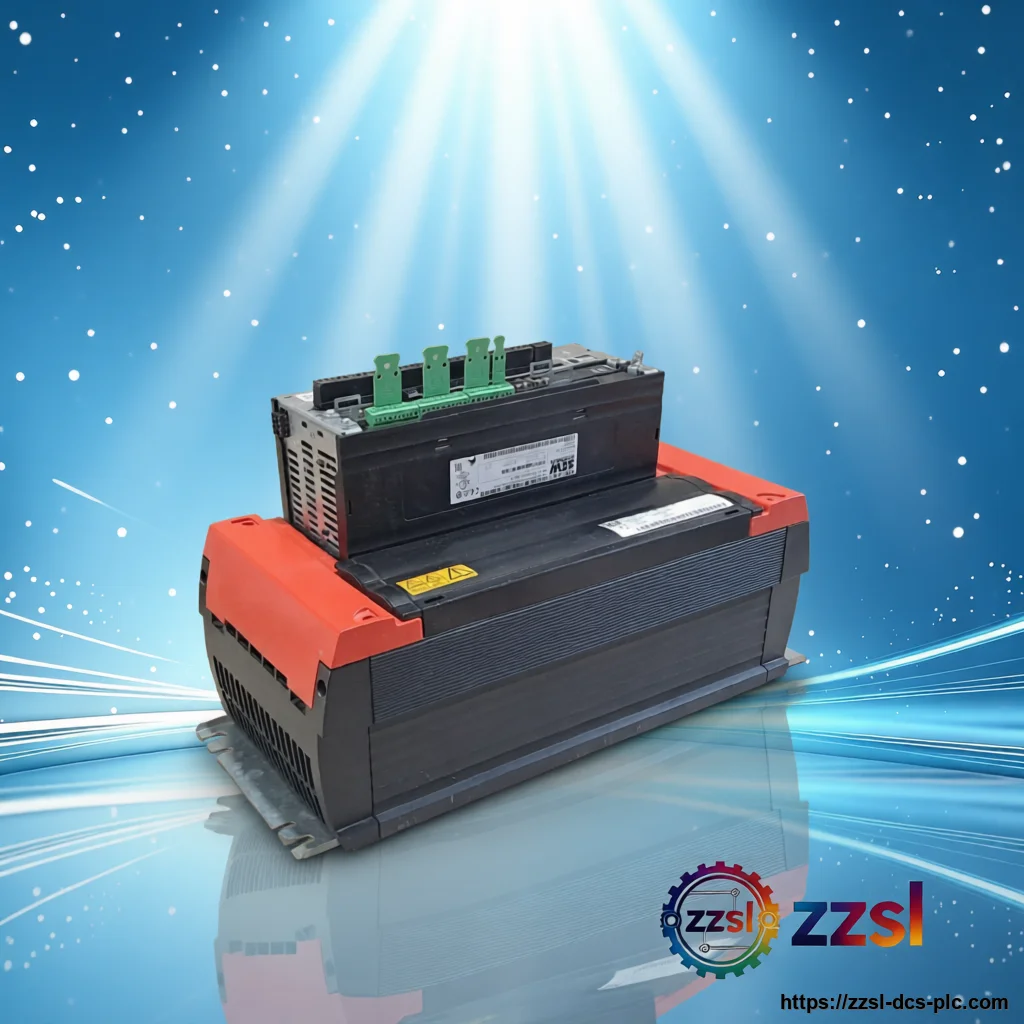

SEW Variable Frequency Drive MDX61B0150-503-4-00
SEW-EURODRIVE
SEW Variable Frequency Drive MDX61B0150-503-4-00
Home > Products > SEW > MOVIDRIVE MDX61B Need SEW MDX61B0150-503-4-00? Variable Frequency Drive for MOVIDRIVE MDX61B Drive System. Supplied with full …
Specifications
| Brand | SEW-Eurodrive |
|---|---|
| Model Number | MDX61B0150-503-4-00 |
| Official Product Name | MOVIDRIVE MDX61B Frequency Inverter |
| Applicable System | MOVIDRIVE MDX61B Drive System |
| Product Type | Variable Frequency Drive (VFD) / Inverter |
| Equivalent Standard | IEC 61800-3, UL 508C, CE |
| Product Status | In Stock |
| Input Voltage | 3-phase 380-500 V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-phase 0 to input voltage |
| Output Frequency | 0 to 650 Hz (depending on control mode) |
| Rated Output Current | 32 A (at 400 V) |
| Overload Capacity | 150% for 60s, 200% for 5s |
| Brake Chopper | Integrated, minimum resistance 47 Ω |
| Control Modes | V/f, sensorless vector, closed-loop vector (with optional encoder) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | Approx. 250 x 450 x 250 mm (without options) |
| Weight | Approx. 14 kg |
| Rated Power | 15 kW (20 HP) |
Product Description
This unit delivers a rated power of 15 kW (20 HP) at an input voltage of 3-phase 380-500 V AC, making it suitable for a wide range of medium-power drive tasks. The inverter features a built-in brake chopper and supports various control modes including V/f control, sensorless vector control, and closed-loop vector control with an optional encoder card. Its robust design ensures reliable operation in harsh environments, with an IP20 protection rating for cabinet installation. The MDX61B0150-503-4-00 is part of SEW-Eurodrive's MOVIDRIVE series, known for its modularity and flexibility. It offers a wide range of options such as fieldbus interfaces (PROFIBUS, DeviceNet, EtherNet/IP, etc.), I/O expansion cards, and safe torque off functionality. The inverter is engineered for high overload capacity, providing 150% rated current for 60 seconds and 200% for 5 seconds, which is essential for applications with high starting torques or shock loads. Its integrated PLC functionality allows for simple logic operations without additional hardware. This model is widely used in material handling, conveyor systems, packaging machinery, and pump/fan applications. It is designed to work seamlessly with SEW's DR series AC motors and gearmotors, ensuring optimal performance and energy efficiency. The unit is supplied as a new original spare part, fully tested and backed by a 12-month warranty, making it a reliable choice for both OEM and aftermarket applications. The SEW MOVIDRIVE MDX61B0150-503-4-00 is a compact frequency inverter from the MOVIDRIVE MDX61B series, designed for controlling three-phase AC motors in industrial applications.
Basic Product Information
- High overload capacity: 150% rated current for 60s, 200% for 5s
- Integrated brake chopper for dynamic braking
- Supports V/f, sensorless vector, and closed-loop vector control modes
- Modular design with optional fieldbus and I/O expansion cards
- Integrated PLC functionality for simple automation tasks
- Safe torque off (STO) option for functional safety
- IP20 protection for cabinet installation
- Rated power 15 kW (20 HP) at 3-phase 380-500 V AC input
Technical Specifications
Version & Model Difference
The MDX61B0150-503-4-00 is part of the MOVIDRIVE MDX61B series, which supersedes the earlier MDX60 series. Compared to MDX60, the MDX61B offers enhanced features such as integrated PLC functionality, higher communication capabilities, and support for newer fieldbus protocols. The 'B' suffix indicates the second generation of the MDX61 series, which includes improved EMC performance and updated firmware. There are also variants like MDX61B0150-503-4-0T (with additional options) or MDX61B0150-503-4-00 with different option slots. This specific model is the base version without factory-installed options, but it has slots for adding fieldbus or I/O cards.
Application Scenarios
- SEW BE05A Brake Rectifier (BE05A)
- SEW BE5A Brake Rectifier (BE5A)
- SEW BE11A Brake Rectifier (BE11A)
Frequently Asked Questions
What is the rated power and voltage of the SEW MDX61B0150-503-4-00?
The rated power is 15 kW (20 HP) with an input voltage of 3-phase 380-500 V AC. The output is a 3-phase variable voltage and frequency supply to the motor.
Can this inverter be used with standard AC motors?
Yes, it is designed to control standard three-phase AC induction motors, particularly SEW DR series motors. It supports V/f control for general applications and vector control for higher performance.
Does the MDX61B0150-503-4-00 have a built-in brake chopper?
Yes, it includes an integrated brake chopper for connecting an external braking resistor, allowing dynamic braking of the motor. The minimum resistance for the braking resistor is 47 ohms.
What communication options are available for this drive?
The drive has slots for optional communication cards. Supported fieldbus systems include PROFIBUS DP, DeviceNet, EtherNet/IP, PROFINET, and CANopen, among others. The base unit does not include a fieldbus interface, but it can be added via option cards.
