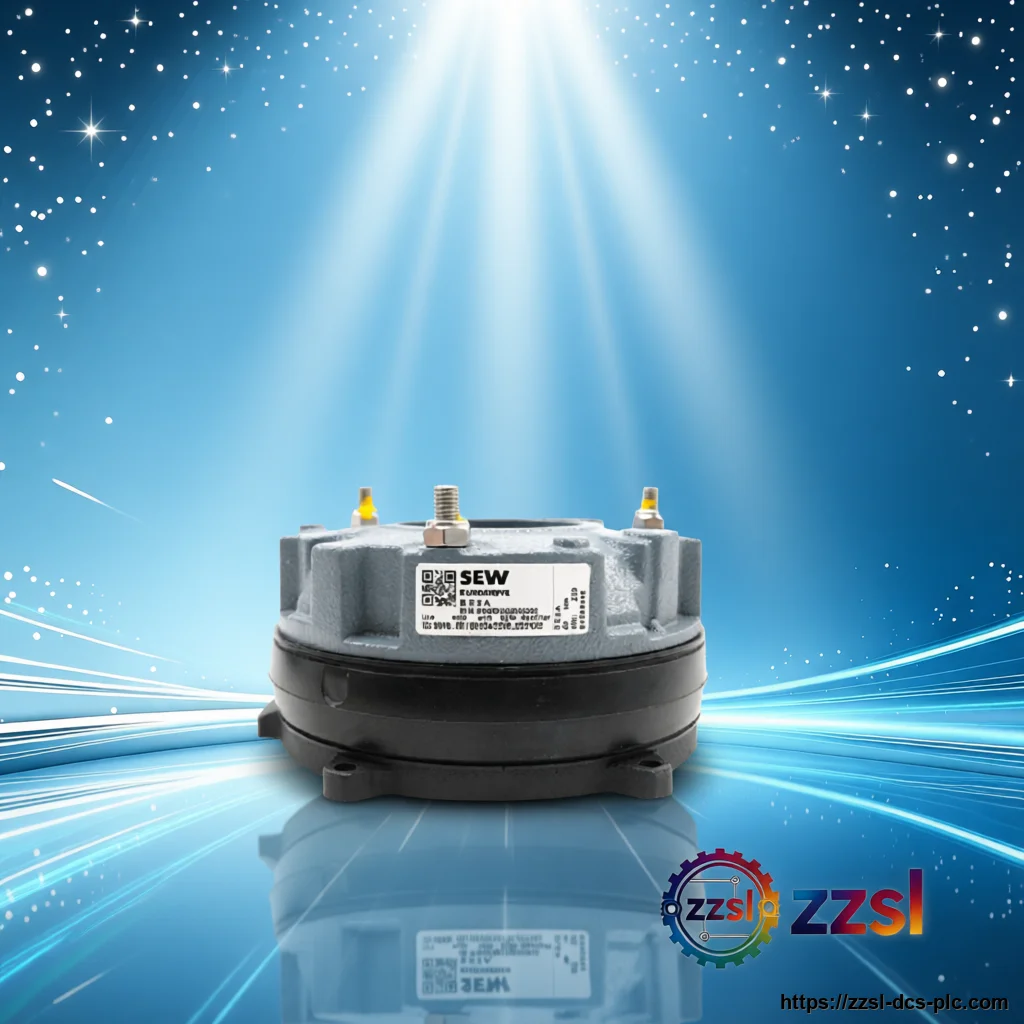

SEW Brake Rectifier BE5A
Home > Products > SEW > Brake Rectifiers Need SEW BE5A? Brake Rectifier for SEW AC Motors with electromagnetic brakes. Supplied with full traceability…
Specifications
| Brand | SEW-Eurodrive |
|---|---|
| Model Number | BE5A |
| Official Product Name | Brake Rectifier BE5A |
| Applicable System | SEW AC Motors with electromagnetic brakes |
| Product Type | Brake Rectifier |
| Equivalent Standard | SEW standard (no direct equivalent) |
| Product Status | In Stock |
| Output Voltage | 24 VDC |
| Output Current | 1.0 A (typical) |
| Brake Voltage | 24 VDC |
| Frequency | 50/60 Hz |
| Protection Class | IP20 (when installed in cabinet) |
| Ambient Temperature | -20°C to +60°C |
| Dimensions (approx.) | 60 x 40 x 30 mm (L x W x H) |
| Weight | 0.1 kg |
| Connection Type | Terminal block (screw type) |
| Input Voltage | 230 VAC (50/60 Hz) |
Product Description
It converts AC input voltage to DC output voltage to release the brake, ensuring reliable and rapid brake release and engagement. The BE5A is part of SEW's comprehensive range of brake control components, known for their robustness and long service life in demanding industrial environments. This rectifier is specifically engineered for SEW motors with brake voltages of 230VAC (50/60Hz) input, providing a DC output of 24V. It is typically used in applications where the motor brake requires a separate DC supply for operation. The BE5A features a compact design that allows for easy integration into control cabinets or directly on the motor terminal box, depending on the motor configuration. With a focus on safety and performance, the SEW BE5A ensures that the brake releases quickly and reliably, reducing wear and tear on mechanical components. It is a genuine OEM part, guaranteeing compatibility and quality. Whether for new installations or as a replacement part, the BE5A is a critical component for maintaining the operational efficiency of SEW drive systems. The SEW BE5A is a compact brake rectifier module designed for use with SEW AC motors equipped with electromagnetic spring-loaded brakes.
Basic Product Information
- Compact design for easy installation
- Suitable for 50Hz and 60Hz supply
- High reliability and long service life
- Genuine SEW-Eurodrive OEM part
- Converts 230VAC to 24VDC for brake release
Technical Specifications
Version & Model Difference
The SEW BE5A is a specific version of brake rectifier. There are other models in the BE series such as BE1A, BE2A, BE3A, and BE6A, which differ in input voltage and output voltage ratings. For example, BE1A is for 230VAC input with 24VDC output, while BE2A is for 400VAC input with 24VDC output. The BE5A is designed for 230VAC input and 24VDC output, similar to BE1A but with possibly different current ratings or connection options. Always verify the exact motor brake specifications before selecting a rectifier.
Application Scenarios
- SEW MOVIDRIVE MDX61B0150-503-4-00 Inverter (MDX61B0150-503-4-00)
- SEW BE05A Brake Rectifier (BE05A)
- SEW BE11A Brake Rectifier (BE11A)
