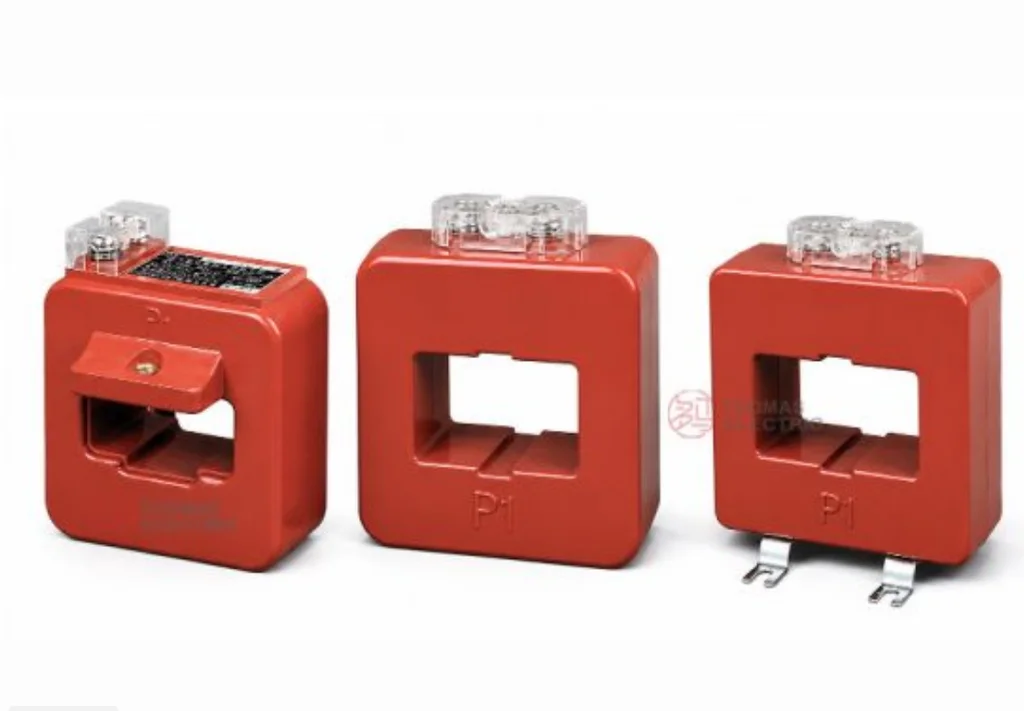

Saiwei Low Voltage Ring-Type Current Transformer LMZ-0.66
Other Brands
Saiwei Low Voltage Ring-Type Current Transformer LMZ-0.66
Home > Saiwei > Current Transformers > LMZ-0.66 Need Saiwei LMZ-0.66? Low Voltage Ring-Type Current Transformer for 0.66 kV low-voltage AC distributio…
Specifications
| Brand | Saiwei |
|---|---|
| Model Number | LMZ-0.66 |
| Official Product Name | LMZ-0.66 Low Voltage Ring-Type Current Transformer |
| Applicable System | 0.66 kV low-voltage AC distribution and metering systems |
| Product Type | Low Voltage Ring-Type Current Transformer |
| Equivalent Standard | IEC 61869-2 / GB/T 20840.2 |
| Product Status | In Stock |
| Type | Ring / donut busbar-type current transformer |
| Rated Primary Current | 250 A |
| Rated Secondary Current | 5 A |
| Ratio | 250/5 A |
| Accuracy Class | 0.5 |
| Rated Voltage | 0.66 kV |
| Rated Burden | 5-3.75 VA |
| Rated Frequency | 50/60 Hz |
| Insulation | Cast resin, busbar / window type |
| Installation | Indoor, panel mounted |
| Standards | IEC 61869-2 / GB/T 20840.2 |
| Model | LMZ-0.66 |
Product Description
Its 250/5 A ratio and 0.5 accuracy class provide a standard 5 A secondary signal for ammeters, power meters and relay protection. The busbar/window construction and cast-resin insulation give good dielectric strength and moisture resistance. With a rated burden of 5-3.75 VA it suits panel-mounted metering in LV switchgear. The Saiwei LMZ-0.66 is a ring-type (donut) low-voltage current transformer designed for 0.66 kV indoor AC distribution and metering.
Basic Product Information
- Ring-type (donut) aperture design for through-busbar or cable primary conductor
- Cast-resin insulation rated for 0.66 kV low-voltage systems
- Rated burden 5-3.75 VA with a standard 5 A secondary output at 50/60 Hz
- 250/5 A current ratio with 0.5 accuracy class for metering and protection
Technical Specifications
Version & Model Difference
The LMZ-0.66 family covers many primary currents (from about 50/5 A up to 2000/5 A) and several aperture sizes (phi22 to phi62). This listing is the 250/5 A, 0.5-class, ring-type version; verify the ratio, accuracy class and burden moulded on the nameplate, since secondary ratings differ per variant.
Application Scenarios
- LV switchgear ammeter and power meter inputs
- Energy metering in 0.66 kV distribution panels
- Motor control centre (MCC) load monitoring
- Relay protection and SCADA current sensing
Frequently Asked Questions
What ratio and accuracy is this LMZ-0.66?
This listing is the 250/5 A ring-type version with 0.5 accuracy class at a 0.66 kV rated voltage.
Where is it installed?
It is an indoor, panel-mounted current transformer for 0.66 kV low-voltage AC distribution and metering.
What is the secondary output?
A standard 5 A secondary signal at 50/60 Hz with a rated burden of 5-3.75 VA.
What standards does it follow?
LMZ-0.66 current transformers are typically built to IEC 61869-2 / GB/T 20840.2; confirm the nameplate for the exact declaration.
