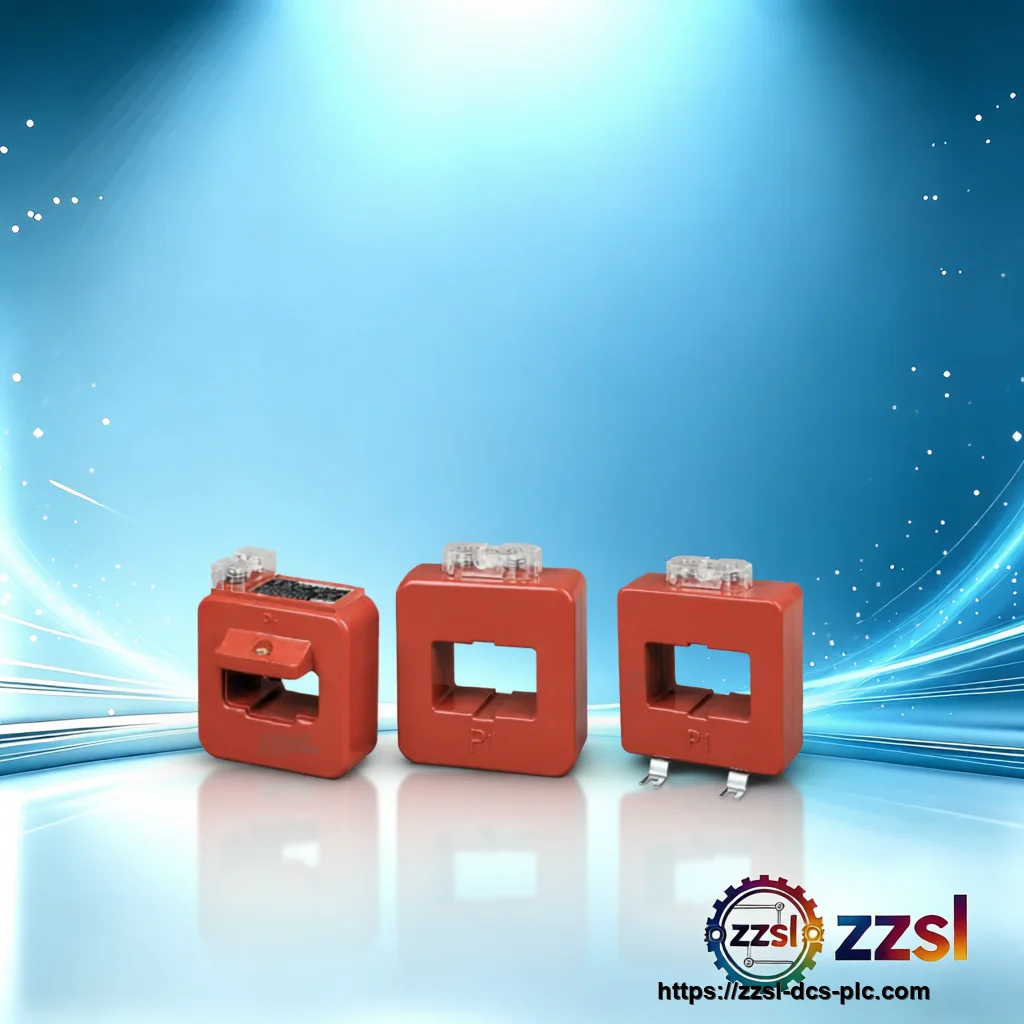

Saiwei Component LMZ-0.66
Home > Products > Current Transformers > Saiwei LMZ-0.66 Need Saiwei LMZ-0.66? Component for Low-voltage power distribution systems up to 0.66KV. Supp…
Specifications
| Brand | Saiwei |
|---|---|
| Model Number | LMZ-0.66 |
| Official Product Name | Current Transformer |
| Applicable System | Low-voltage power distribution systems up to 0.66KV |
| Product Type | Component (Current Transformer) |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Type | Donut Type |
| Ratio | 250/5 A |
| Accuracy | 0.5 |
| Rated Voltage | 0.66 kV |
| Burden | 5~3.75VA |
| Frequency | 50/60Hz |
| Insulation Level | 0.66/3KV |
| Standards | GB 1208 / GB 20840 (IEC 60044-1) |
| Rated Output | 5 VA |
| Model | LMZ-0.66 |
Product Description
Basic Product Information
- Accuracy class 0.5 for precise measurement
- Rated voltage 0.66KV suitable for low-voltage applications
- Burden rating of 5~3.75VA ensures compatibility with standard meters
- Compact and durable construction for long service life
- Donut-type design for easy installation on cables or busbars
Technical Specifications
Version & Model Difference
- The LMZ-0.66 is a standard model with a fixed ratio of 250/5A. Other ratios may be available upon request. No significant version differences exist for this model.
Application Scenarios
- Current measurement in switchgear panels
- Energy monitoring in industrial plants
- Retrofit projects for existing low-voltage distribution systems
- Metering and billing applications in commercial buildings
- Protection and control circuits in motor control centers
