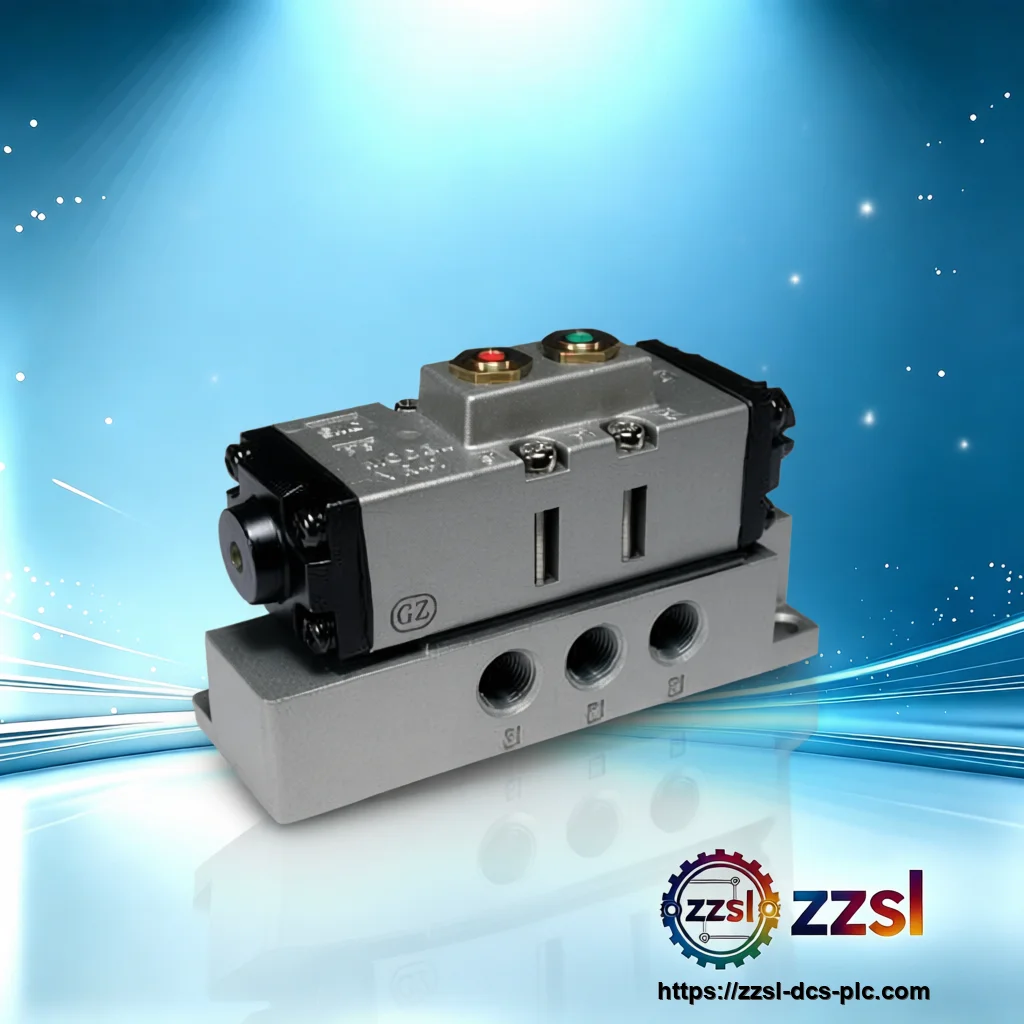

SMC Pneumatic relay valve VR4152-F01A-1
['Home', 'Pneumatic Components', 'SMC Valves', 'VR4152-F01A-1 Relay Valve'] Need SMC VR4152-F01A-1? Pneumatic relay val…
Specifications
| Brand | SMC |
|---|---|
| Model Number | VR4152-F01A-1 |
| Official Product Name | VR4152-F01A-1 Relay Valve |
| Applicable System | Pneumatic control systems |
| Product Type | Pneumatic relay valve |
| Equivalent Standard | Available on request |
| Product Status | Available |
| Operating pressure | 0 to 1.0 MPa |
| Pilot pressure | 0.15 to 1.0 MPa |
| Port size | Rc (PT) 1/8 |
| Effective area (Cv) | 7 mm2 (0.38) |
| Ambient / operating temperature | -5 to 60 deg C (no freezing) |
| Lubrication | Not required |
| Connection | Side-ported, sub-plate mounted |
| Fluid | Air |
Product Description
Functioning as the pneumatic equivalent of an auxiliary relay in an electrical system, it amplifies, branches or isolates pilot air signals in compressed-air circuits. With metric Rc (PT) 1/8 ports, an operating pressure range of 0 to 1.0 MPa and ambient tolerance from -5 to 60 deg C (no freezing), it suits a wide range of factory automation and pneumatic control applications. The SMC VR4152-F01A-1 is a pneumatic relay valve (transmitter-relay) from the VR4151/4152 series, designed to perform fixed operational sequences based on pneumatic signals received from a mechanical valve.
Basic Product Information
- Metric Rc (PT) 1/8 connection ports in a side-ported design
- Operating pressure 0 to 1.0 MPa; pilot pressure 0.15 to 1.0 MPa
- Lubrication-free (no oil required) operation
- Ambient and fluid temperature range -5 to 60 deg C (no freezing)
- Double-pilot transmitter-relay valve for fixed pneumatic sequencing
Technical Specifications
Version & Model Difference
['VR4151 series: single-pilot relay valve; VR4152 series: double-pilot relay valve', 'Suffix -01A: with sub-plate, side-ported; -01B: with sub-plate, bottom-ported', 'VR4152-F01A-1 is the double-pilot, side-ported variant with sub-plate']
Application Scenarios
- Pneumatic signal branching and isolation in automated machinery
- Fixed-sequence control actuated by mechanical valve pilot signals
- Compressed-air circuits requiring relay-style logic without electronics
- SMC MGPM32-50Z-M9BWL Compact Guide Cylinder (32 mm Bore, 50 mm Stroke)
- SMC CDQ2A80-25DMZ Compact Cylinder (CDQ2A80-25DMZ)
- SMC RS2H-R50 Shock Absorber for RS2H Series Stopper Cylinder
- SMC CDQ2A40 100DZ-XC2 Compact Cylinder (CDQ2A40-100DZ-XC2)
- SMC AN40-04 Compact Resin Pneumatic Silencer (1/2 R Male)
- SMC C96SB32-320 ISO Standard Pneumatic Cylinder (32mm x 320mm)
- SMC CDG5GA32TFSR Stainless Steel Cylinder (CG5-S Series, 32mm)
- SMC MGPM32-50Z-M9BWL Compact Guide Cylinder (MGPM32-50Z-M9BWL)
Frequently Asked Questions
What is the difference between the VR4151 and VR4152 relay valves?
The VR4151 is a single-pilot relay valve, while the VR4152 is a double-pilot version. Both perform relay functions in pneumatic systems based on received pilot signals.
What fluid and pressure range does the VR4152-F01A-1 support?
It is designed for compressed air with an operating pressure of 0 to 1.0 MPa and a pilot pressure of 0.15 to 1.0 MPa.
Does this valve require lubrication?
No. The VR4152-F01A-1 is a lubrication-free (no-oil) design, though turbine oil Class 1 ISO VG32 may be used if preferred.
What port size and connection type does it use?
It uses metric Rc (PT) 1/8 ports in a side-ported, sub-plate-mounted configuration.
