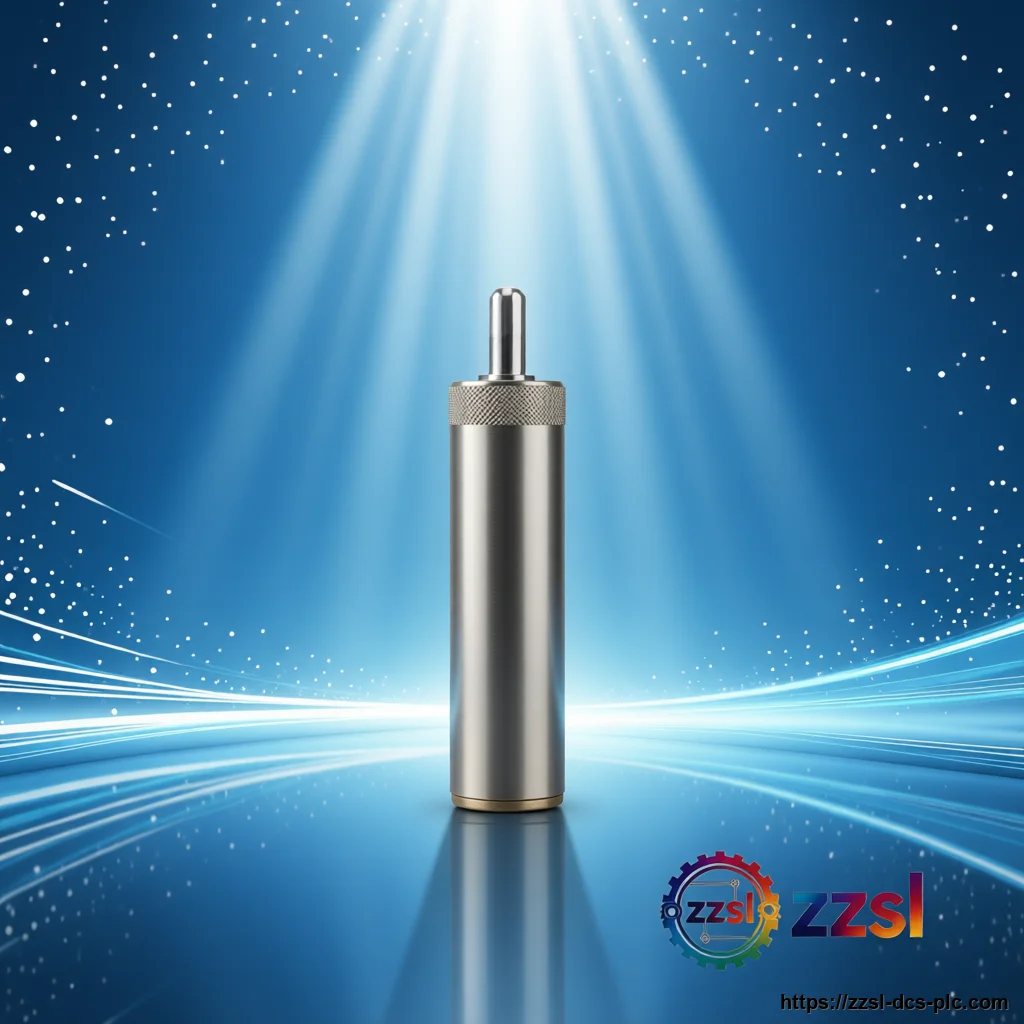

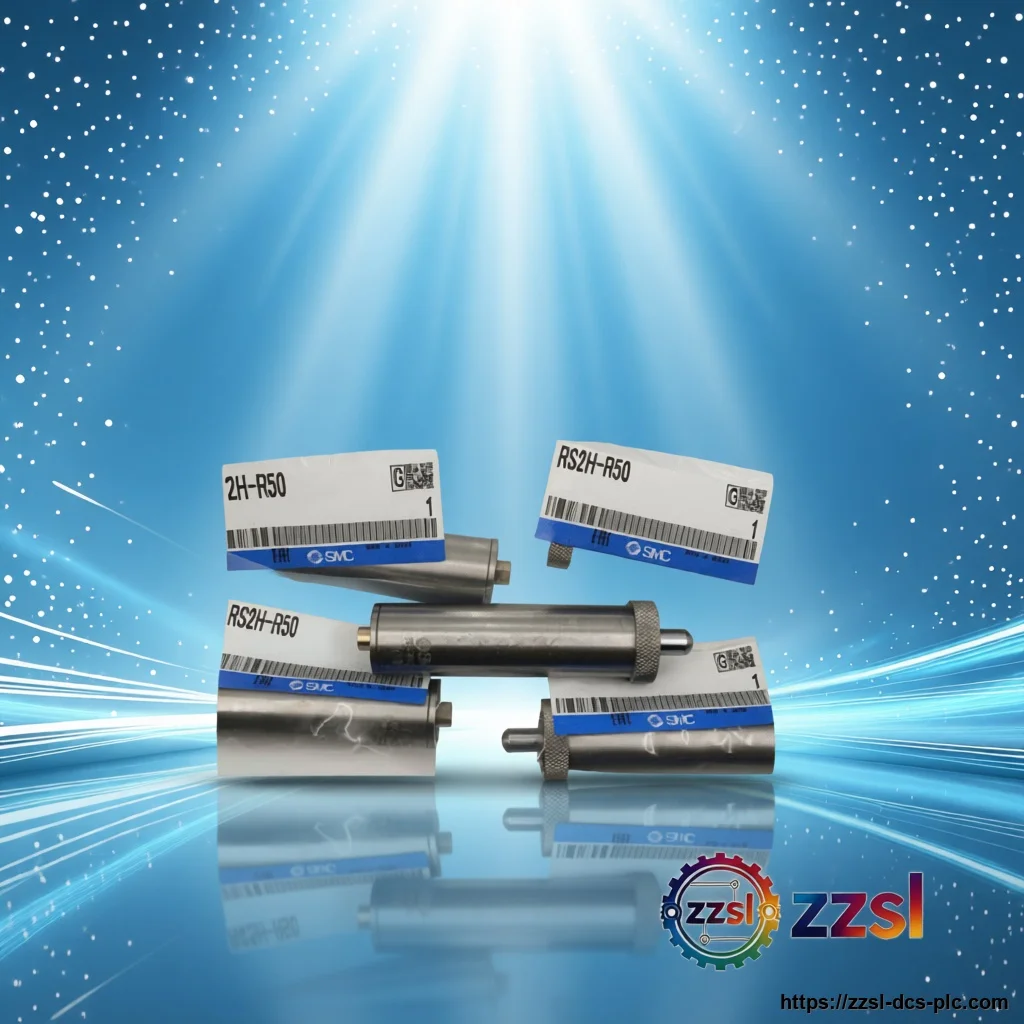

SMC Shock Absorber RS2H-R50
['Home', 'Spare Parts', 'SMC', 'RS2H-R50'] Need SMC RS2H-R50? Shock Absorber for Conveyor stopper and pallet stop stati…
Specifications
| Brand | SMC |
|---|---|
| Model Number | RS2H-R50 |
| Official Product Name | SMC RS2H-R50 Shock Absorber for RS2H Series Stopper Cylinder |
| Applicable System | Conveyor stopper and pallet stop stations (RS2H series stopper cylinders) |
| Product Type | Shock Absorber / Replaceable Part for Stopper Cylinder |
| Equivalent Standard | cross-reference available on request |
| Product Status | Available - stock and lead time confirmed per enquiry |
| Product Type | Shock absorber (replaceable part) for heavy duty stopper cylinder |
| Compatible Cylinder | SMC RS2H50 heavy duty stopper cylinder, bore 50 mm |
| Series | RS2H heavy duty stopper cylinder series (bore sizes 50, 63 and 80 mm) |
| Function | Absorbs impact energy of the transferred object and stops it smoothly; resistance adjusted via the adjustment dial |
| Replacement Method | Shock absorber replaceable by loosening the set screw (M4) |
| Compliance | RoHS compliant |
| Country of Origin | Japan (per distributor country-of-origin data) |
| Operating Conditions | Per RS2H series catalogue; operating pressure and absorbed energy depend on the cylinder size and transfer speed |
| Dimensions | available upon request |
| Weight | available upon request |
| Manufacturer | SMC Corporation, Japan |
Product Description
It is listed in the SMC catalogue as a replaceable part for the RS2H50 stopper cylinder, where it absorbs the kinetic energy of the conveyed workpiece so that pallets and workpieces are stopped smoothly. The absorber can be replaced by loosening the set screw on the cylinder, and its resistance value is adjusted by rotating the adjustment dial. The SMC RS2H-R50 is a replacement hydraulic shock absorber for the SMC RS2H series heavy duty stopper cylinder, in the 50 mm bore size.
Basic Product Information
- Absorbs the kinetic energy of conveyed workpieces for gentle, low-noise stopping
- Suitable for heavy duty stopper cylinders used on conveyors and transfer lines
- Replaceable by loosening the set screw, and adjustable through the cylinder adjustment dial
- RoHS compliant, manufactured in Japan per distributor data
- Genuine SMC replaceable shock absorber for the RS2H50 heavy duty stopper cylinder (50 mm bore)
Technical Specifications
Version & Model Difference
The SMC RS2H stopper cylinder series is offered in bore sizes 50, 63 and 80 mm with standard strokes of 30 mm (50 and 63 mm bore) and 40 mm (80 mm bore). The replaceable shock absorber is listed per bore size, so RS2H-R50 applies to the 50 mm bore version; confirm the correct part number for other bore sizes before ordering.
Application Scenarios
- Conveyor stopper stations and pallet stop positions
- Automated assembly and material handling transfer lines
- Heavy duty indexing and accumulation conveyors
- SMC MGPM32-50Z-M9BWL Compact Guide Cylinder (32 mm Bore, 50 mm Stroke)
- SMC CDQ2A80-25DMZ Compact Cylinder (CDQ2A80-25DMZ)
- SMC RS2H-R50 Shock Absorber for RS2H Series Stopper Cylinder
- SMC CDQ2A40 100DZ-XC2 Compact Cylinder (CDQ2A40-100DZ-XC2)
- SMC AN40-04 Compact Resin Pneumatic Silencer (1/2 R Male)
- SMC C96SB32-320 ISO Standard Pneumatic Cylinder (32mm x 320mm)
- SMC CDG5GA32TFSR Stainless Steel Cylinder (CG5-S Series, 32mm)
- SMC MGPM32-50Z-M9BWL Compact Guide Cylinder (MGPM32-50Z-M9BWL)
Frequently Asked Questions
What is the SMC RS2H-R50?
It is the replacement shock absorber for the SMC RS2H50 heavy duty stopper cylinder (50 mm bore). It is listed in the SMC catalogue as a replaceable part for that cylinder, where it absorbs the impact energy of the workpiece being stopped.
Which stopper cylinder does the RS2H-R50 fit?
It fits the RS2H50 cylinder, the 50 mm bore version of the RS2H heavy duty stopper cylinder series. Other bore sizes in the series (63 mm and 80 mm) use their own shock absorber part numbers.
How is the shock absorber replaced and adjusted?
The absorber is replaced by loosening the set screw on the cylinder, without dismantling the whole unit. The resistance value is adjusted by rotating the adjustment dial on the cylinder.
How do I order the SMC RS2H-R50?
Contact us with the quantity and the cylinder model (for example RS2H50 with its stroke and option code). Price, stock and delivery time for the RS2H-R50 are confirmed per order.
