MGPM32-50Z-M9BWL

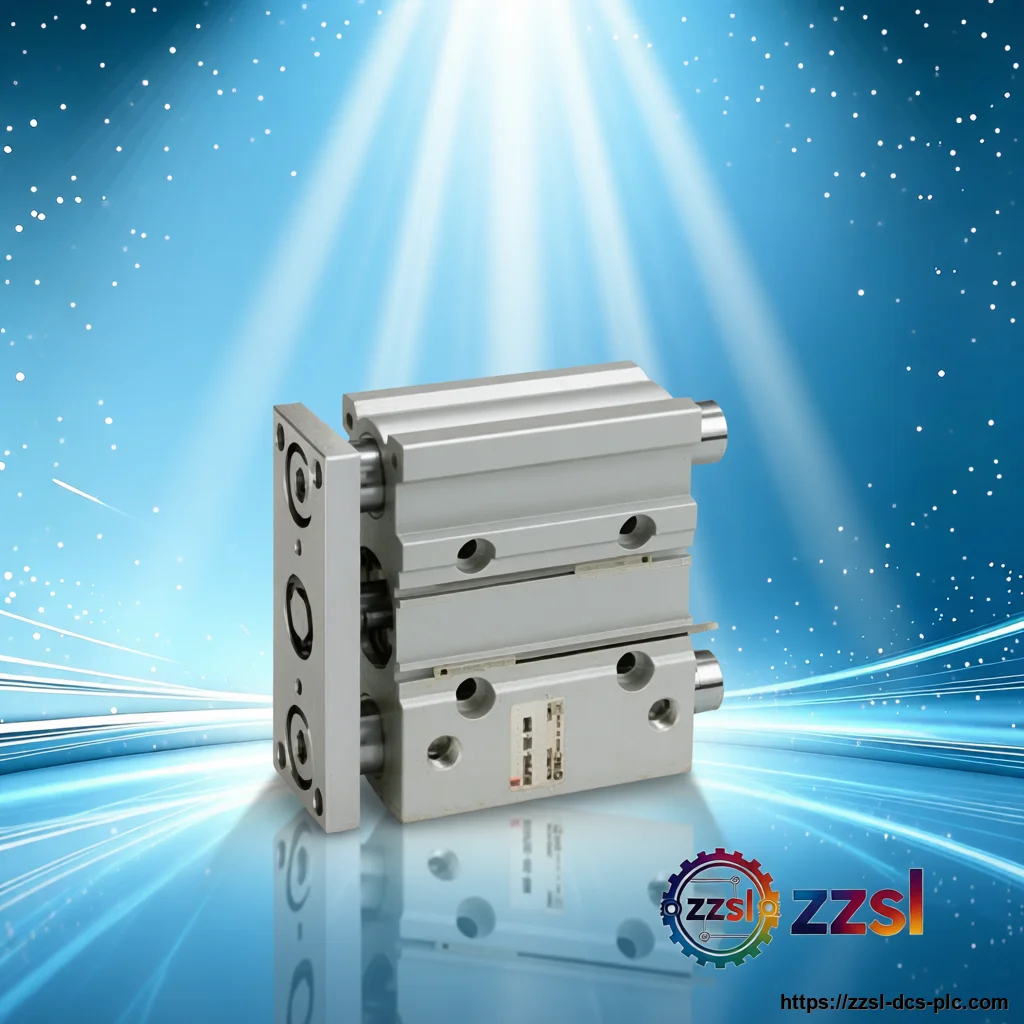

SMC Guided Pneumatic Cylinder MGPM32-50Z-M9BWL
SMC
SMC Guided Pneumatic Cylinder MGPM32-50Z-M9BWL
Home > Products > SMC > Pneumatic Cylinders > MGPM Series Need SMC MGPM32-50Z-M9BWL? Guided Pneumatic Cylinder for Pneumatic actuation systems. Sup…
Contact us for current availability and best price of MGPM32-50Z-M9BWL.
Specifications
| Brand | SMC |
|---|---|
| Model Number | MGPM32-50Z-M9BWL |
| Official Product Name | Compact Guide Cylinder MGPM Series |
| Applicable System | Pneumatic actuation systems |
| Product Type | Guided Pneumatic Cylinder |
| Equivalent Standard | ISO 15552 (partially) |
| Product Status | In Stock |
| Stroke Length | 50 mm |
| Cushion | Rubber bumper (standard) |
| Operating Pressure Range | 0.15 - 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Ambient Temperature | -10 to 60°C (no freezing) |
| Piston Speed | 50 - 500 mm/s |
| Port Size | 1/8 inch (RC1/8) |
| Auto Switch | M9BWL (solid-state, 2-wire, with LED) |
| Mounting Type | Foot (standard) |
| Cylinder Material | Aluminum alloy (body), stainless steel (rod) |
| Weight | Approx. 1.2 kg |
| Bore Size | 32 mm |
Product Description
It features a 32mm bore and 50mm stroke, providing reliable force and accuracy. The integrated guide rods prevent rotation and absorb lateral loads, making it ideal for pick-and-place, pressing, and clamping applications. This model includes a M9BWL auto switch (solid-state, 2-wire, with LED indicator) for position sensing, and is equipped with standard ports. The cylinder body is made of aluminum alloy, and the piston rod is stainless steel, ensuring durability and corrosion resistance. Operating pressure range is 0.15 to 1.0 MPa, with a maximum speed of 500 mm/s. The MGPM series is known for its compact design and high rigidity. The 'Z' designation indicates a standard type with built-in magnet for auto switch detection. This cylinder is widely used in automotive, electronics, and packaging industries, offering a long service life and minimal maintenance. The SMC MGPM32-50Z-M9BWL is a compact guided pneumatic cylinder from the MGPM series, designed for precise linear motion in automated machinery.
Basic Product Information
- 32mm bore, 50mm stroke
- Built-in magnet for auto switch detection
- M9BWL auto switch (solid-state, 2-wire, LED)
- High rigidity and accuracy
- Operating pressure up to 1.0 MPa
- Compact design with integrated guide rods
Technical Specifications
Version & Model Difference
The MGPM series has several variations: standard type (Z), low-friction type (L), and with different switch options. The 'Z' indicates standard with magnet. The M9BWL switch is a 2-wire solid-state type with LED, while other options include M9BW (without LED) or M9N (3-wire). The stroke length can vary from 10 to 200 mm, and bore sizes range from 10 to 100 mm.
