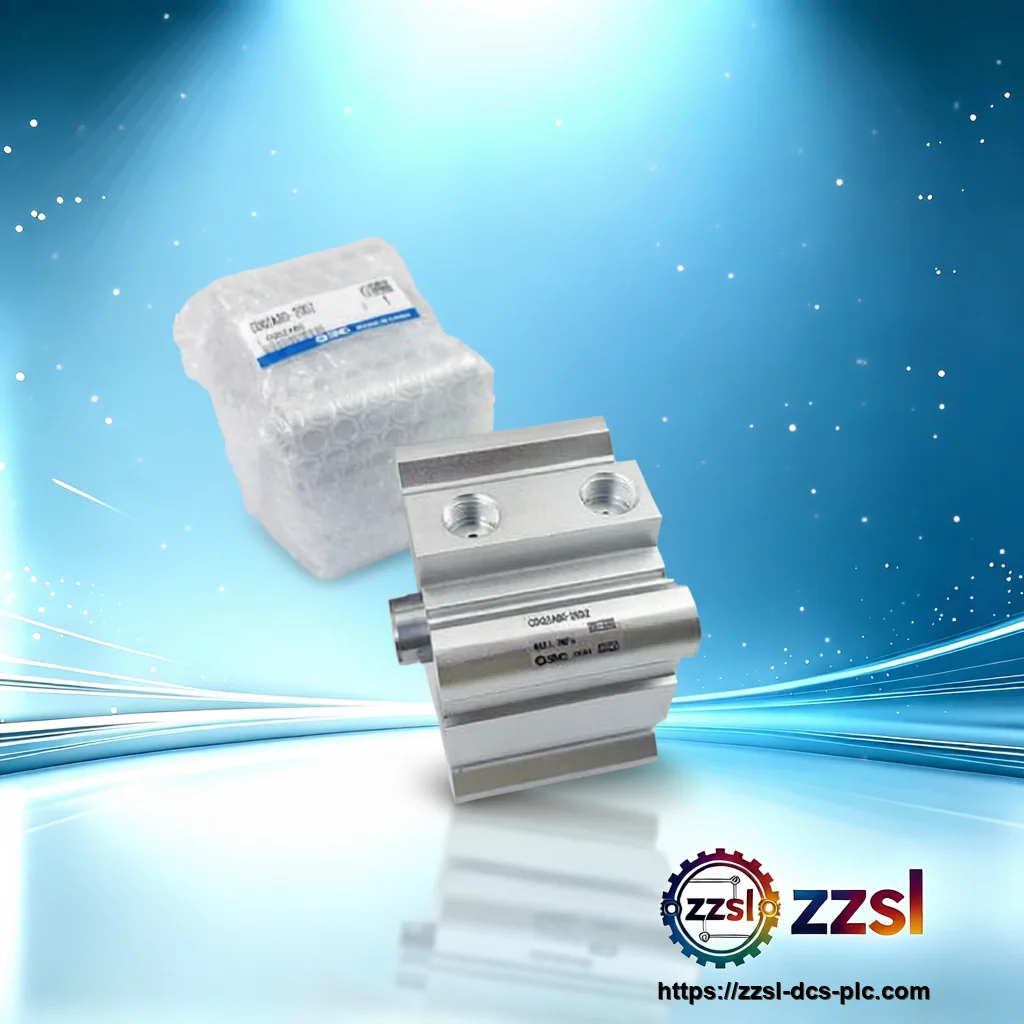

SMC Cylinder CDQ2A80-25DMZ
Home > Products > SMC > Cylinders > CDQ2A80-25DMZ Need SMC CDQ2A80-25DMZ? Cylinder for Pneumatic system. Supplied with full traceability and docume…
Specifications
| Brand | SMC |
|---|---|
| Model Number | CDQ2A80-25DMZ |
| Official Product Name | CYLINDER,CDQ2A80-25DMZ,SMC |
| Applicable System | Pneumatic system |
| Product Type | Cylinder (actuator) |
| Equivalent Standard | CDQ2A80-25D, CDQ2A80-25DM, CDQ2A80-25DZ |
| Product Status | Active |
| Stroke Length | 25 mm |
| Action Type | Double-acting, single rod |
| Cushion | Rubber bumper (standard) |
| Mounting Type | Basic (with mounting holes) |
| Operating Pressure Range | 0.05 to 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -10 to 70 degC (no switch) / -10 to 60 degC (with switch) |
| Port Size | 1/4 BSPT |
| Piston Speed | 50 to 500 mm/s |
| Material | Aluminium tube, carbon steel piston rod |
| Weight | Approx. 1.71 kg (3.78 lb) |
| Bore Size | Rc 3/8 |
Product Description
266.75 USD （参考价 / est. market price）
Basic Product Information
- Double-acting operation for controlled extension and retraction
- Bore size 80mm provides high force output
- Stroke length 25mm suitable for short travel applications
- Durable construction with high-quality seals for long service life
- Smooth and precise motion for accurate positioning
- Wide range of mounting options for flexible integration
- Compact design saves space in tight installations
Technical Specifications
Version & Model Difference
The CDQ2A80-25DMZ is part of the CDQ2 series, which includes variations in stroke length, cushioning options, and mounting configurations. The 'DMZ' suffix indicates a specific configuration: 'D' for double-acting, 'M' for basic mounting with holes, and 'Z' for rubber bumper cushioning. Other versions may have different suffixes such as 'DZ' (with auto switch) or 'DM' (without cushioning). Always verify the exact model code to ensure compatibility.
Application Scenarios
- Automated assembly lines for part clamping and positioning
- Packaging machinery for pushing, lifting, and transferring products
- Material handling equipment for sorting and diverting
- General industrial automation for reciprocating motion
- Replacement for worn-out cylinders in existing systems
