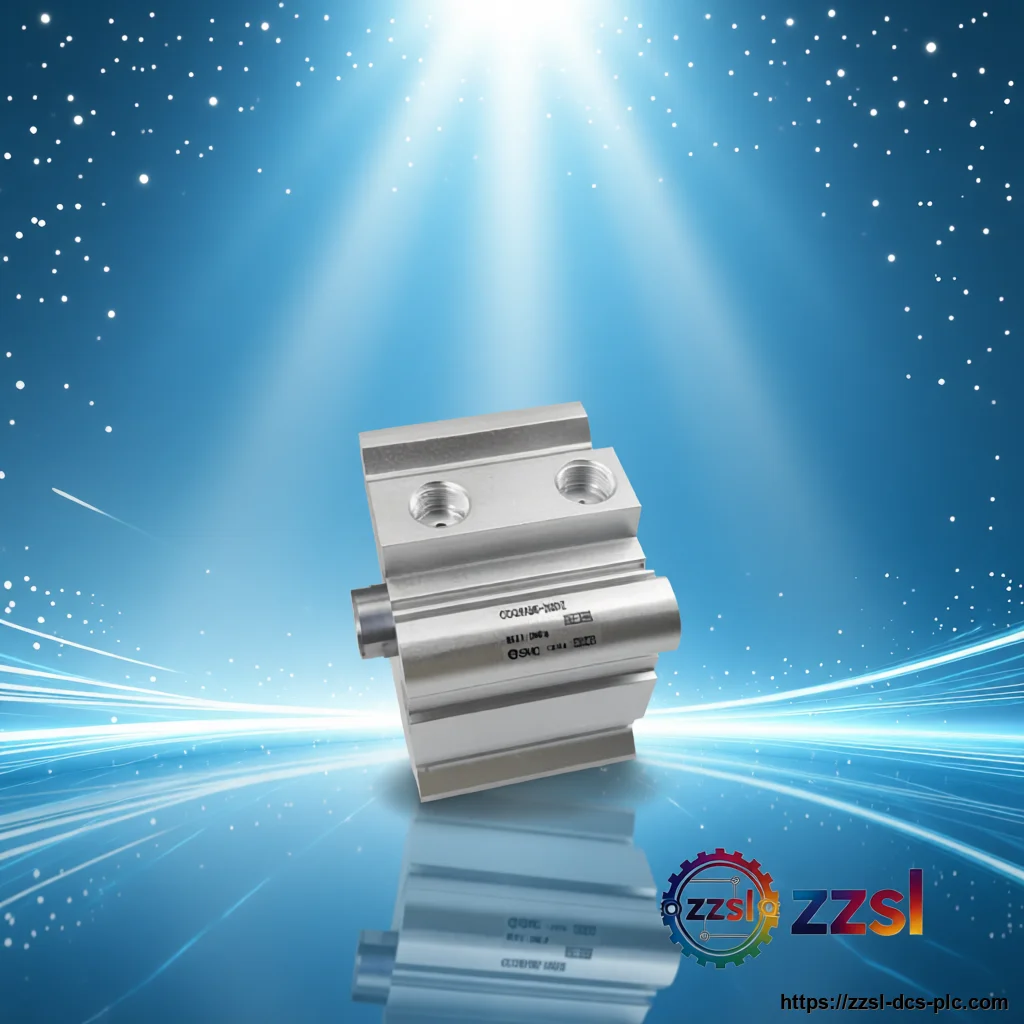

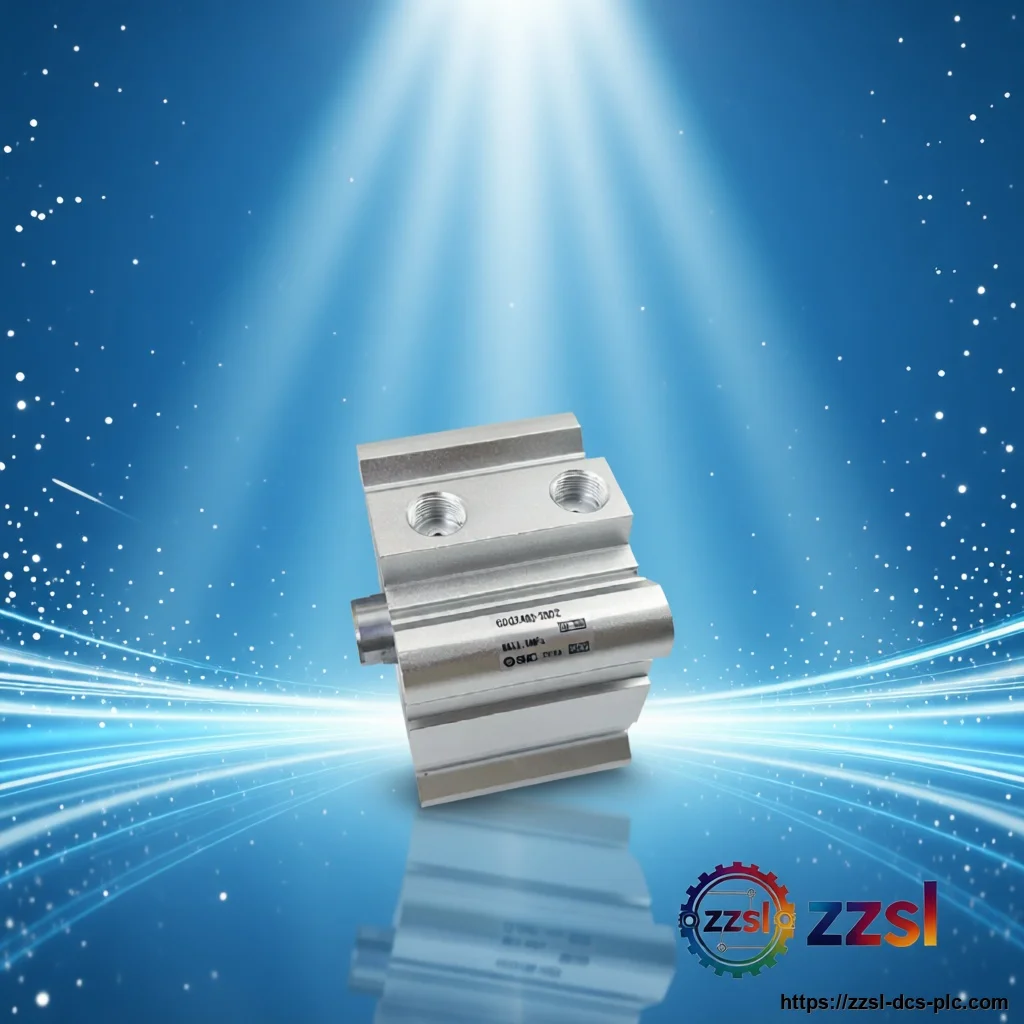

SMC Compact Cylinder CDQ2A80-25DMZ

Product Description

With an 80mm bore and 25mm stroke, this double-acting cylinder delivers powerful and precise actuation. Its compact design reduces overall machine footprint while maintaining the durability and performance expected from SMC products. The cylinder features a lightweight aluminum body and is available with various mounting options to suit diverse automation needs. This model is part of SMC's CQ2 series, which is known for its space-saving design and high reliability. The CDQ2A80-25DMZ operates with a double-acting mechanism, providing controlled extension and retraction. It can handle operating pressures from 0.05 to 1.0 MPa, making it suitable for a wide range of pneumatic systems. The cylinder is designed to operate in temperatures from -5°C to 60°C, ensuring stable performance in various industrial environments. The CDQ2A80-25DMZ is equipped with standard ports and is compatible with a variety of SMC accessories, including auto switches and mounting brackets. Its robust construction and precise engineering make it an ideal choice for applications such as material handling, packaging, and general automation. Whether used in new equipment or as a replacement part, this cylinder ensures smooth and efficient operation, backed by SMC's reputation for quality and innovation. The SMC CDQ2A80-25DMZ is a high-performance compact cylinder from the renowned CQ2 series, designed for applications requiring reliable linear motion in confined spaces.

Basic Product Information

• Stroke length 25mm for compact applications
• Double-acting operation for controlled motion
• Space-saving design reduces machine footprint
• Operating pressure range 0.05 to 1.0 MPa
• Lightweight aluminum body with high durability
• Standard ports for easy integration
• Compatible with SMC auto switches and mounts
• Bore size 80mm for powerful force output

Technical Specifications

Version & Model Difference

The CDQ2A80-25DMZ is a specific configuration within the CQ2 series. The 'D' indicates double-acting, 'M' denotes the mounting style (basic type), and 'Z' signifies the presence of a rubber bumper cushion. Other versions may include different bore sizes, stroke lengths, or options like auto switch mounting (e.g., CDQ2A80-25DZ with auto switch). The 'DMZ' version is standard without auto switches, but can be retrofitted with SMC auto switches using appropriate brackets.
