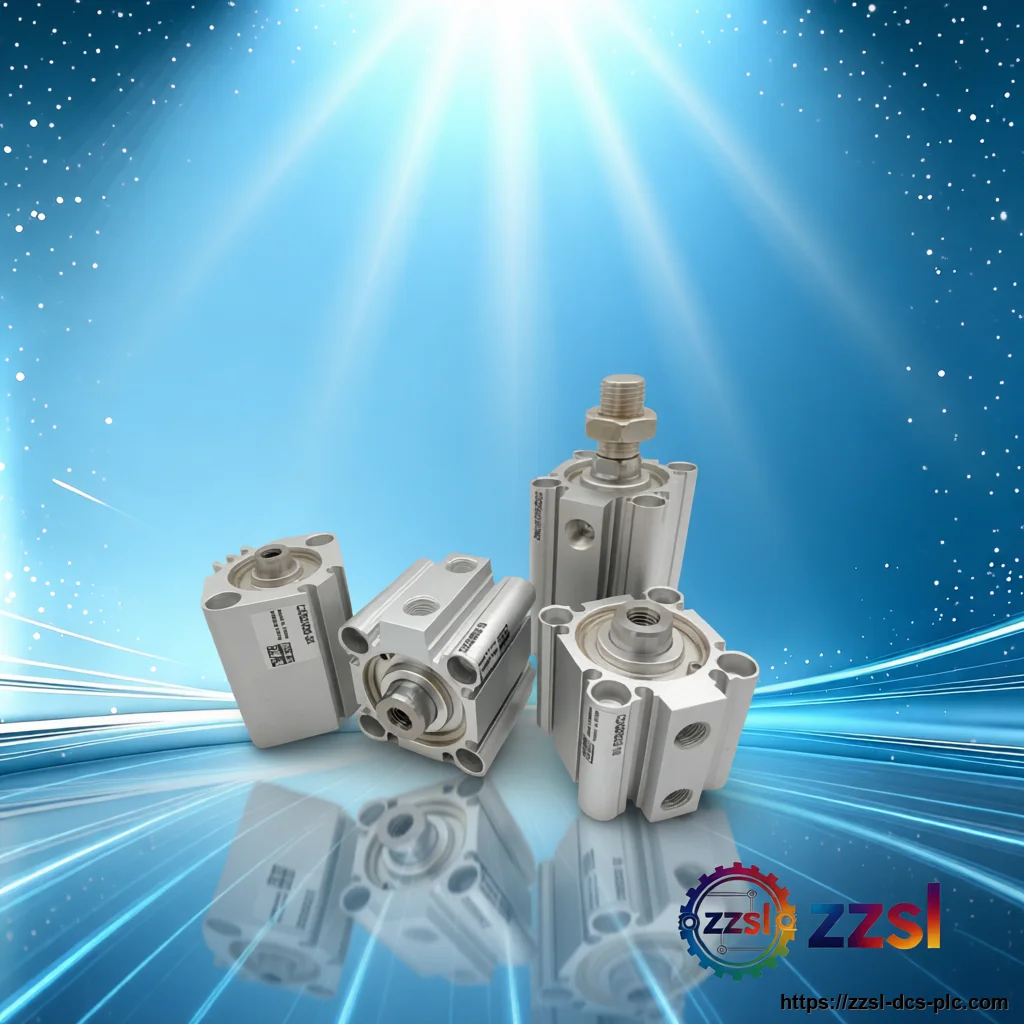

SMC Compact Cylinder CDQ2A40 100DZ-XC2
Home > Products > SMC > Cylinders > Compact Cylinder Need SMC CDQ2A40 100DZ-XC2? Compact Cylinder for Pneumatic system. Supplied with full traceabi…
Contact us for current availability and best price of CDQ2A40.
Specifications
| Brand | SMC |
|---|---|
| Model Number | CDQ2A40-100DZ-XC2 |
| Official Product Name | Compact Cylinder, Double Acting, Single Rod |
| Applicable System | Pneumatic system |
| Product Type | Compact Cylinder |
| Equivalent Standard | ISO 6432 (approximate) |
| Product Status | In Stock |
| Stroke Length | 100 mm |
| Action Type | Double Acting |
| Rod Type | Single Rod |
| Cushioning | Rubber bumper (standard) |
| Mounting | Basic (with mounting holes) |
| Port Size | Rc1/4 |
| Operating Pressure Range | 0.05 to 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -10 to 70°C |
| Piston Speed | 50 to 1000 mm/s |
| Auto Switch | Magnetic piston (for auto switch) |
| Bore Size | 40 mm |
Product Description
With a 40mm bore and 100mm stroke, this cylinder delivers reliable linear motion in a lightweight aluminum body. The 'XC2' suffix indicates a special specification, often including auto switch mounting provisions and specific port options. This model is widely used in automation, packaging, and assembly lines due to its durability and precision. The SMC CDQ2A40 100DZ-XC2 is a compact pneumatic cylinder from the CQ2 series, designed for space-saving applications without compromising performance.
Basic Product Information
- Double acting, single rod design
- Auto switch ready (magnetic piston)
- Compact and lightweight aluminum body
- Standard port size Rc1/4
- Optional rod end thread and cushioning
- Bore size 40mm with 100mm stroke
Technical Specifications
Version & Model Difference
The CDQ2A series includes variations such as CDQ2B (with different mounting style), CDQ2A with different stroke lengths, and options like -XC2 (special spec). The -XC2 often indicates a specific auto switch mounting or port configuration. Compared to standard CQ2 models, the CDQ2A has a magnetic piston for auto switch detection. Other versions may have different bore sizes, stroke lengths, or port thread types (e.g., NPT or G).
Application Scenarios
- SMC SY7220-5LZD-02 Solenoid Valve (5-Port, 2-Position)
- SMC MGPM32-50Z-M9BWL Air Cylinder (Guide Cylinder with Auto Switch)
- SMC CDQ2A80-25DMZ Compact Air Cylinder
- SMC SHOCK ABSORBER RS2H-R50
- SMC CDQ2A40-100DZ-XC2 Compact Air Cylinder
- SMC VALVE VR4152-F01A-1
- SMC AN40-04 Muffler Silencer R1/2
- SMC C96SB32-320 ISO Cylinder
Need CDQ2A40?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for CDQ2A40. Our team replies within 30 minutes (working hours).
