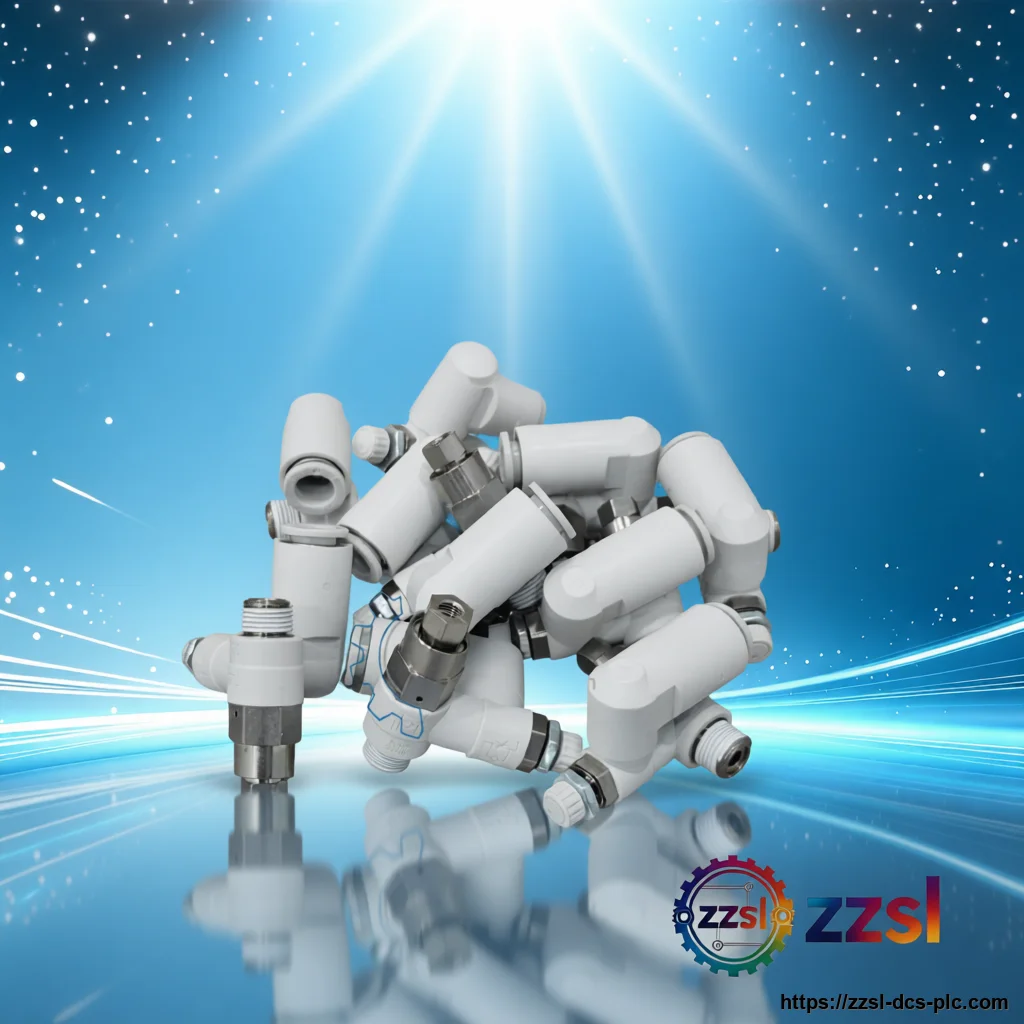

ASP330F-01-08S

Product Description

It belongs to the ASP series, which is known for its compact design, lightweight construction, and reliable performance. This model features a 1/8 NPT thread on the input side and an 8mm push-in fitting on the output side, making it suitable for use with 8mm tubing. The speed controller allows for fine adjustment of actuator speed by controlling the exhaust air flow, ensuring smooth and efficient operation of cylinders and other pneumatic devices. Constructed from high-grade materials, the ASP330F-01-08S offers excellent durability and resistance to corrosion. The body is made of anodized aluminum, while the push-in fitting is made of brass with a nickel-plated finish, and the seal is made of NBR (nitrile rubber). This combination ensures a long service life even in demanding industrial environments. The unit is designed to operate within a pressure range of 0.1 to 1.0 MPa (1 to 10 kgf/cm²) and can handle temperatures from -5°C to 60°C, making it versatile for various applications. The speed controller features a locking mechanism on the adjustment knob to prevent unintentional changes to the flow setting. The knob is ergonomically designed for easy operation and precise control. The ASP330F-01-08S is compatible with a wide range of SMC cylinders and other pneumatic components, and it meets ISO 1179-1 and ISO 16028 standards for port connections. With its compact size and high performance, this speed controller is an ideal choice for automation systems, material handling, packaging machinery, and other industrial applications. The SMC ASP330F-01-08S is a precision speed controller designed for regulating the flow of compressed air in pneumatic systems.

Basic Product Information

• Meter-out type control for precise speed regulation of actuators
• Locking knob prevents accidental adjustment of flow setting
• Push-in fitting for quick and secure connection of 8mm tubing
• Durable construction with anodized aluminum body and nickel-plated brass fittings
• Wide operating pressure range from 0.1 to 1.0 MPa
• Operating temperature range of -5°C to 60°C for versatile use
• Compatible with SMC cylinders and other pneumatic components
• Compact and lightweight design for easy installation in tight spaces

Technical Specifications

Version & Model Difference

The SMC ASP series speed controllers come in various configurations to suit different port sizes and tubing diameters. The ASP330F-01-08S is a specific variant with a 1/8 NPT input and an 8mm push-in output. Other versions include ASP330F-01-06S (6mm tube), ASP330F-01-10S (10mm tube), and ASP430F series with larger port sizes. The 'F' designation indicates the body style with a hexagon shape for easy wrench tightening. The 'S' suffix denotes a push-in fitting type. These variations allow users to select the appropriate model based on their system's requirements.

Application Scenarios
