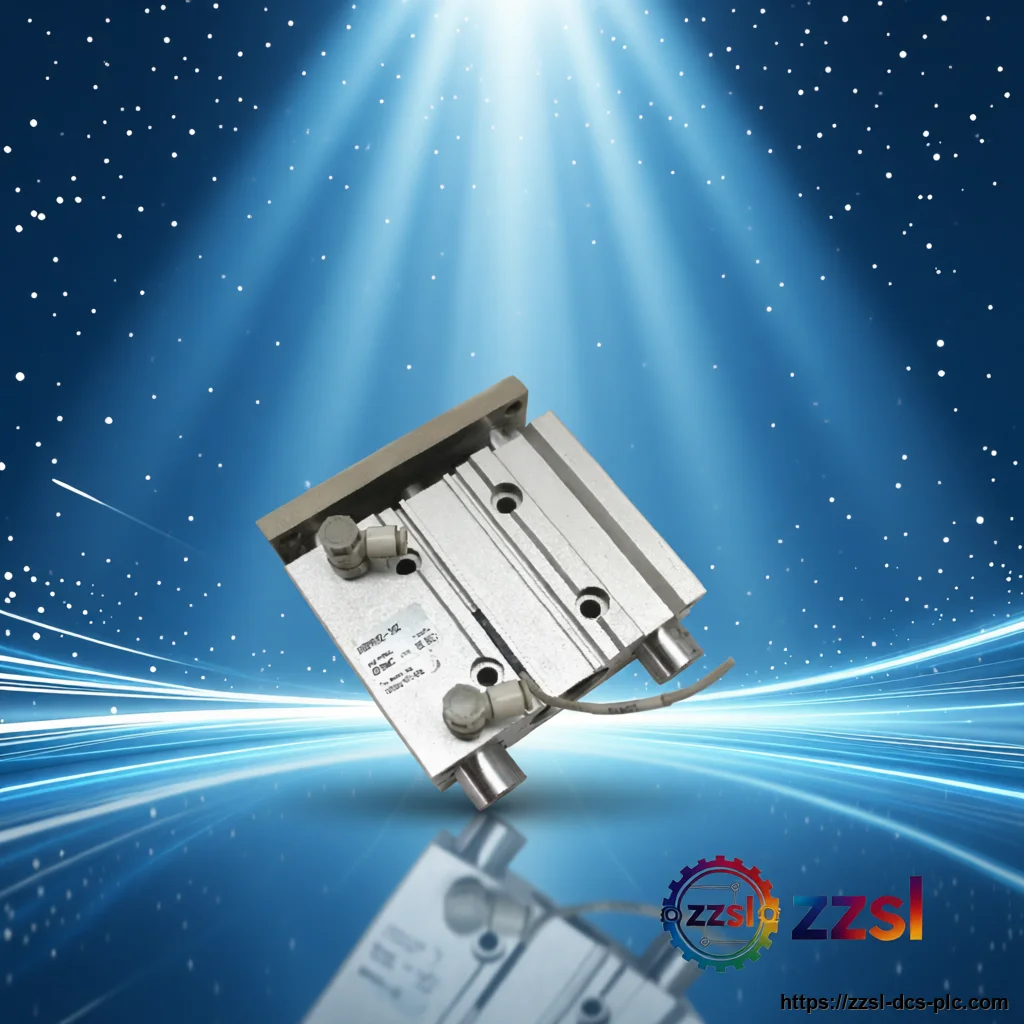

SMC Module MGPM32-50Z-M9BWL
Home > Products > Air Cylinders > SMC > MGPM32-50Z-M9BWL Need SMC MGPM32-50Z-M9BWL? Module for Pneumatic system. Supplied with full traceability an…
Specifications
| Brand | SMC |
|---|---|
| Model Number | MGPM32-50Z-M9BWL |
| Official Product Name | AIR CYLINDER, MGPM32-50Z-M9BWL, SMC |
| Applicable System | Pneumatic system |
| Product Type | Module (cylinder with guide and switch) |
| Equivalent Standard | MGPM32-50Z-M9BW, MGPM32-50Z-M9BWL (with lead wire length variations) |
| Product Status | Active |
| Bore Size | Rc 1/8 |
| Stroke Length | 50 mm |
| Mounting Type | Basic (with optional mounting brackets) |
| Auto Switch | M9BWL (solid state, 3-wire, lead wire length 0.5m) |
| Operating Pressure Range | 0.1 to 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -10 to +60 degC |
| Cushion | Adjustable cushion |
| Port Size | 1/8 inch |
| Piston Speed | 50 to 500 mm/s |
| Weight | Approx. 1.8 kg (3.97 lb) |
| Standards | JIS, ISO |
| Action Type | Double-acting |
| Material | Aluminium (tube/rod cover), carbon steel (piston rod) |
| Cylinder Type | Guide cylinder |
Product Description
469.81 USD （参考价 / est. market price）
Basic Product Information
- Bore size 32mm and stroke 50mm, suitable for medium-duty automation applications.
- Equipped with M9BWL auto switch (solid state, 3-wire, with lead wire) for position detection.
- Durable aluminum body with anodized finish, resistant to corrosion and wear.
- Adjustable cushioning for smooth end-of-stroke deceleration.
- Multiple mounting options available (foot, flange, etc.) for flexible installation.
- Compact guide cylinder with integrated guide rod for high rigidity and accurate linear motion.
Technical Specifications
Version & Model Difference
The MGPM32-50Z-M9BWL is part of the MGPM series. Variations include different auto switch types (e.g., M9BW, M9BWL) and lead wire lengths. The 'Z' indicates a standard stroke. The M9BWL switch has a lead wire length of 0.5m; other versions may have different lengths. This model is the standard version with no special options.
Application Scenarios
- Automated assembly lines for precise part placement.
- Packaging machinery for pushing, lifting, and positioning.
- Material handling equipment for transfer and sorting.
- General industrial automation where compact and accurate linear motion is required.
