SKF

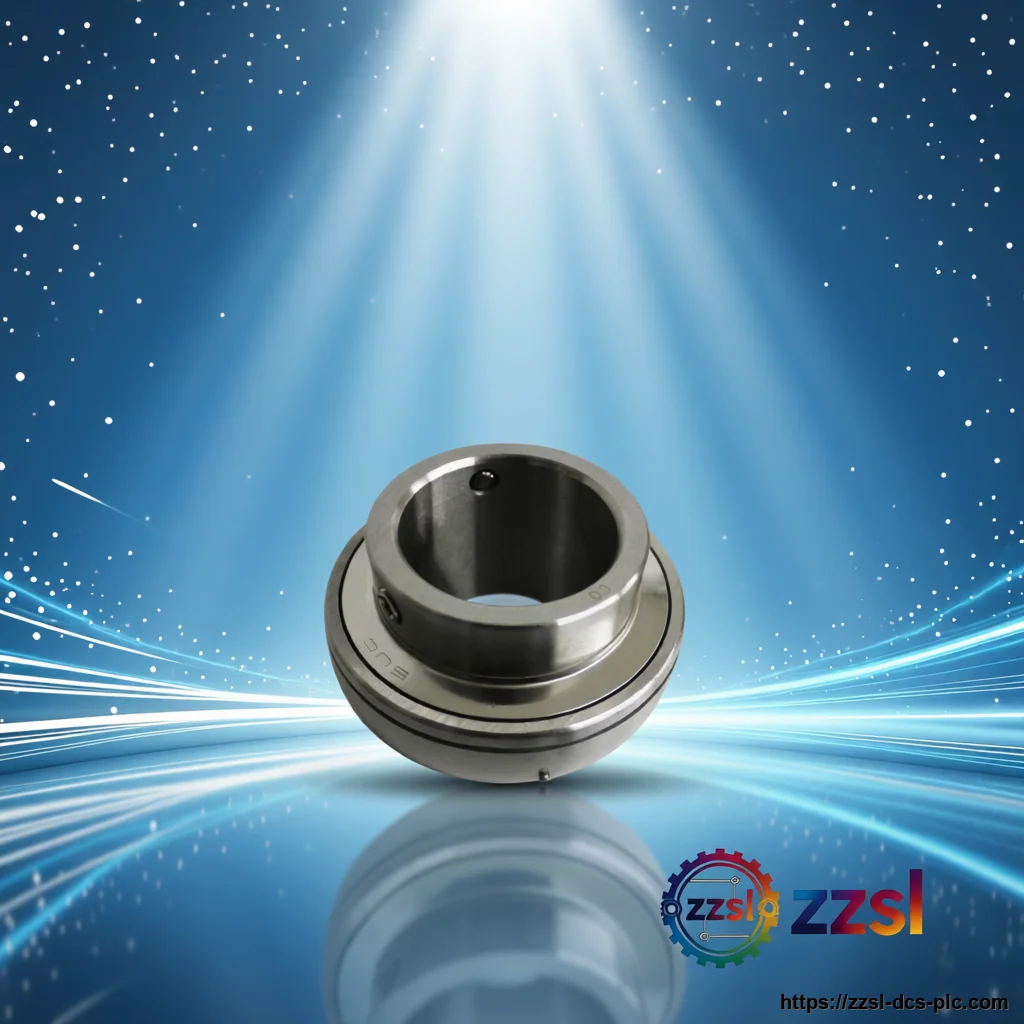

SKF Ball Bearing Unit UC206
Home > Products > SKF > Ball Bearing Units Need SKF UC206? Ball Bearing Unit for Industrial machinery, conveyor systems, agricultural equipment. Suppl…
Contact us for current availability and best price of UC206-unit.
Specifications
| Brand | SKF |
|---|---|
| Model Number | UC206 |
| Official Product Name | Insert Ball Bearing |
| Applicable System | Industrial machinery, conveyor systems, agricultural equipment |
| Product Type | Ball Bearing Unit |
| Equivalent Standard | ISO 9628, DIN 626 |
| Product Status | In Stock |
| Outer Diameter (D) | 62 mm |
| Width (B) | 38.5 mm |
| Basic Dynamic Load Rating (C) | 19.5 kN |
| Basic Static Load Rating (C0) | 11.2 kN |
| Fatigue Load Limit (Pu) | 0.475 kN |
| Limiting Speed (Grease) | 5300 r/min |
| Limiting Speed (Oil) | 6300 r/min |
| Mass | 0.28 kg |
| Sealing | Standard contact seal |
| Lubrication | Pre-lubricated with grease |
| Bore Diameter (d) | 30 mm |
Product Description
This unit features a 30mm bore, 62mm outer diameter, and a width of 38.5mm, making it suitable for shafts with a diameter of 30mm. The bearing is equipped with a spherical outer surface that allows for self-alignment, compensating for any misalignment between the shaft and housing. The UC206 is part of SKF's extensive range of ball bearing units, known for their durability and long service life. This bearing unit is constructed with a hardened steel inner ring and a chrome steel outer ring, providing excellent wear resistance and load-carrying capacity. The bearing is pre-lubricated with high-quality grease, ensuring smooth operation and reduced maintenance requirements. The UC206 features a set screw locking mechanism, which securely fastens the bearing to the shaft, preventing axial movement and ensuring stable operation. The bearing's seals are designed to protect against contamination and retain lubricant, making it suitable for harsh environments. The SKF UC206 is widely used in conveyor systems, agricultural machinery, textile equipment, and other industrial automation applications. Its robust design and reliable performance make it a preferred choice for engineers and maintenance professionals. With SKF's commitment to quality and innovation, the UC206 delivers exceptional value and performance, ensuring minimal downtime and increased productivity in your operations. The SKF UC206 is a high-quality insert ball bearing unit designed for reliable performance in various industrial applications.
Basic Product Information
- Set screw locking mechanism for secure shaft mounting
- Pre-lubricated with high-quality grease for maintenance-free operation
- Effective sealing system protects against contaminants
- High load-carrying capacity and durability
- Self-aligning spherical outer surface
Technical Specifications
Version & Model Difference
The UC206 is part of SKF's UC series of insert ball bearings. Variations include different locking mechanisms (set screw, eccentric collar, or tapered adapter) and seal types (standard, low-friction, or heavy-duty). The UC206 specifically uses set screw locking and standard contact seals. Other versions like UC206-2RS1 have different seal designs, but the UC206 is the standard version.
