Siemens · PLC Module
SQM45295B9

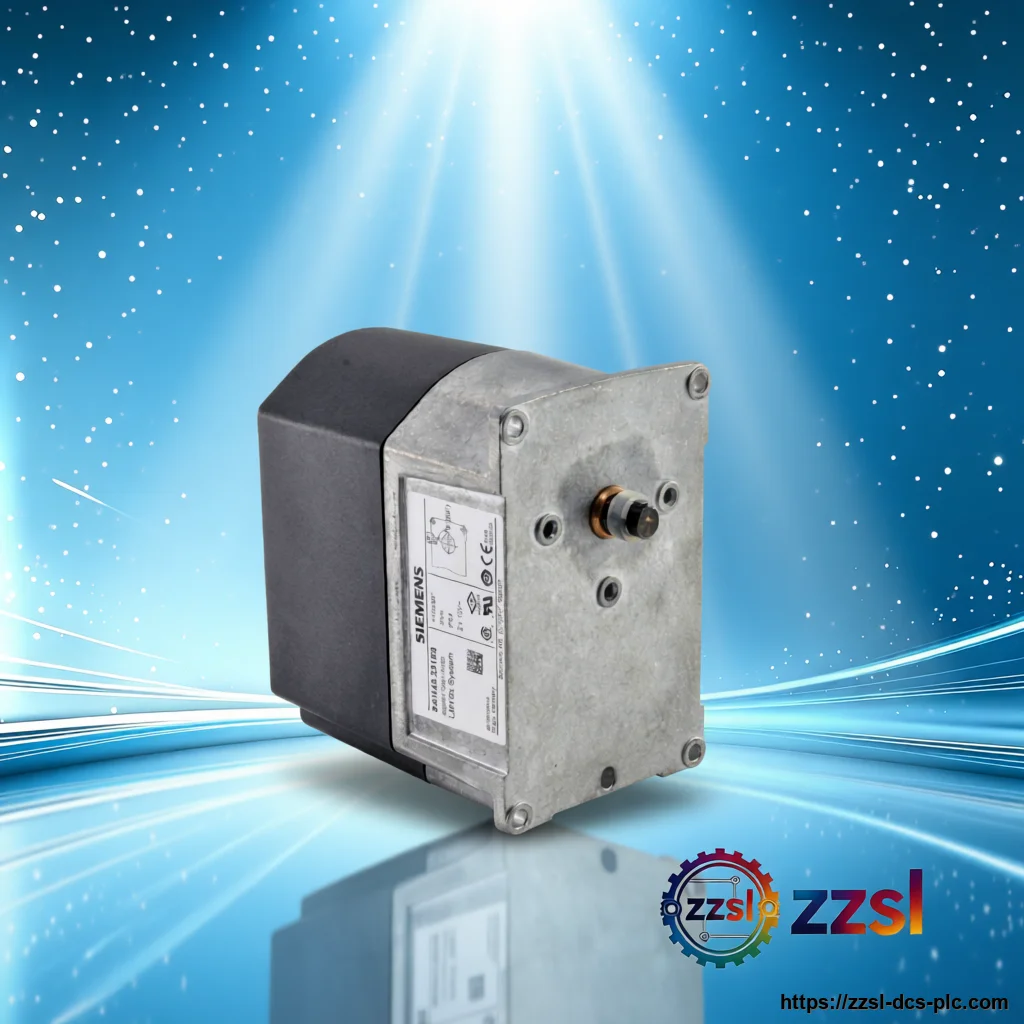

Siemens Electric Damper Actuator SQM45.295B9
Siemens
Siemens Electric Damper Actuator SQM45.295B9
['Home', 'Automation Spare Parts', 'Siemens', 'Burner Controls', 'Actuators', 'SQM45.295B9'] Need S…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | SQM45.295B9 |
| Official Product Name | SQM45 Series Damper Actuator |
| Applicable System | Industrial burner / combustion management (LMV5) |
| Product Type | Electric Damper Actuator (servo motor) |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Lifecycle note | Available (surplus / refurbished stock) |
| Holding torque | Approx. 1.5 Nm (max) |
| Radial bearing force | Max. 190 N |
| Travel time | Approx. 10 s per 90 degrees (per i-z-e source) |
| Supply voltage | 230 V AC, 50/60 Hz (per some resellers) |
| Protection | IP54 |
| Gear | Plastic (SQM45 series) |
| Shaft | 14 mm with keyway |
| Country of origin | Germany |
| Rated torque | 3 Nm (max) |
Product Description
Basic Product Information
- Cam control with self-locking synchronous motor
- Plastic gear, adjustable cam with angle scale
- For LMV5 electronic air/fuel ratio control
- 3 Nm rated torque (holding approx. 1.5 Nm)
Technical Specifications
Version & Model Difference
- Reseller listings vary: some state 3 Nm, others 5 Nm / 230 V AC. The Siemens SQM45 data sheet states 3 Nm rated, 1.5 Nm holding, 10 s/90deg. Confirm the unit label for exact rating.
Application Scenarios
- Medium industrial gas/oil burner damper control
- Boiler air/fuel ratio regulation
- Burner and combustion management systems
