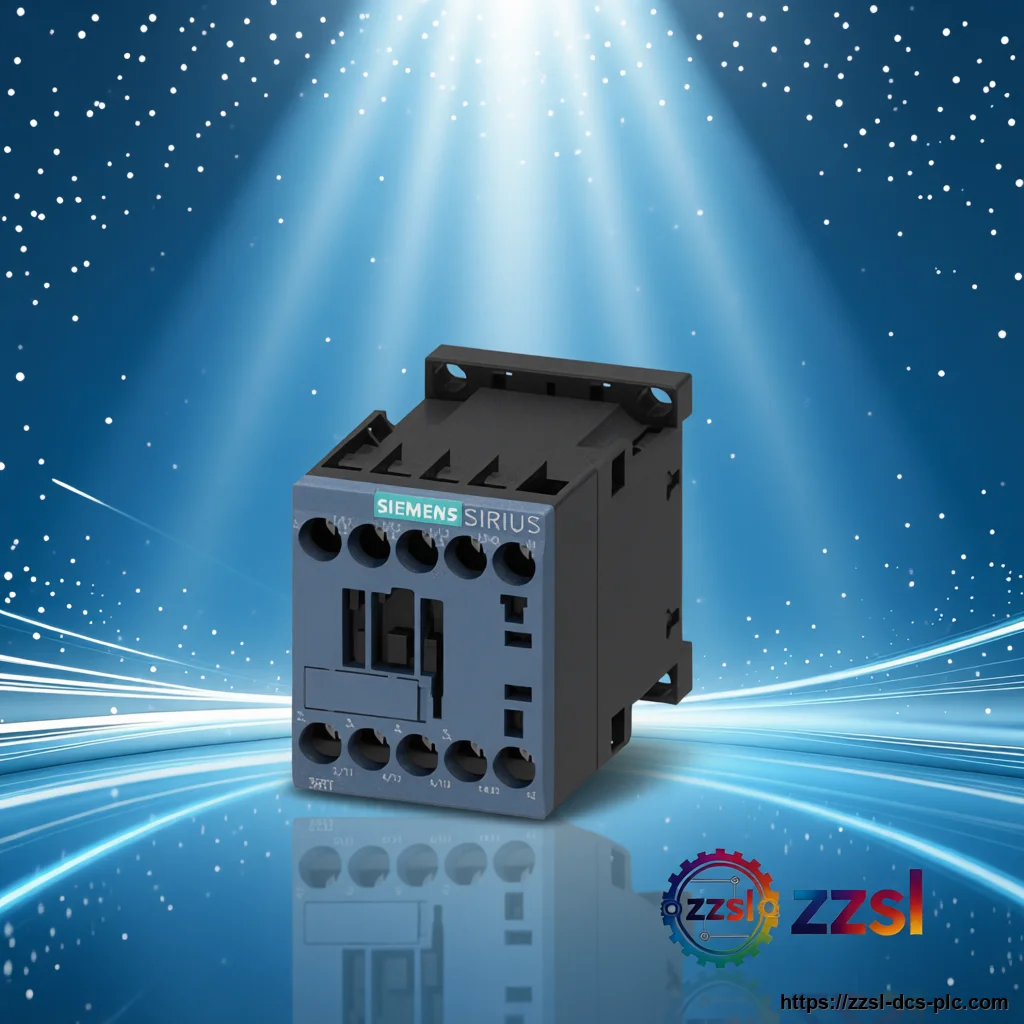

Siemens Power Contactor 3RT6018-1AB01

Product Description

With a rated operational current of 7A at AC-3 duty (up to 400V), it is suitable for controlling small to medium-sized motors. The contactor features a 3-pole configuration and a 24V DC coil, making it ideal for applications where DC control voltage is available. Its compact design allows for space-saving installation in control panels and machinery. This contactor is engineered for high performance and durability, with a mechanical service life of up to 10 million switching operations and an electrical endurance of up to 1 million operations under typical AC-3 conditions. The 3RT6018-1AB01 is designed to meet international standards including IEC 60947, UL, and CSA, ensuring global applicability. It supports screw terminals for secure wiring and can be easily integrated with auxiliary contact blocks, such as the 3RH6911-1AA11, for expanded functionality. The SIRIUS 3RT6 series is known for its modularity and ease of use. The 3RT6018-1AB01 can be mounted on a standard 35mm DIN rail or directly onto a mounting plate, offering flexibility in installation. It is also compatible with a range of accessories, including surge suppressors, timer modules, and bus connectors, allowing for customized control solutions. Whether used in motor starters, conveyor systems, or HVAC equipment, this contactor delivers reliable switching performance and long service life. The Siemens 3RT6018-1AB01 is a compact and reliable power contactor from the SIRIUS 3RT6 series, designed for switching motors and other loads in industrial automation systems.

Basic Product Information

• Rated operational current of 7A at AC-3 duty (up to 400V)
• 24V DC coil for reliable control with DC power supplies
• High mechanical endurance: up to 10 million switching cycles
• Screw terminals for secure and easy wiring
• Compatible with auxiliary contact blocks, surge suppressors, and timer modules
• Compact 3-pole design for space-saving installation

Technical Specifications

Version & Model Difference

The Siemens 3RT6018-1AB01 is part of the 3RT6 series, which replaced the older 3RT1 series. Compared to its predecessor, the 3RT6 series offers a more compact design, higher switching capacity, and improved energy efficiency. The 3RT6018-1AB01 specifically features a 24V DC coil, whereas other versions may have AC coils (e.g., 3RT6018-1AB00 with 24V AC) or different coil voltage ratings. Additionally, the 3RT6 series includes integrated auxiliary contacts (1 NO + 1 NC) as standard, which was optional in earlier series. This contactor is also compatible with a wider range of accessories, such as the new 3RH6 auxiliary contact blocks and 3RT6 surge suppressors.

Application Scenarios
