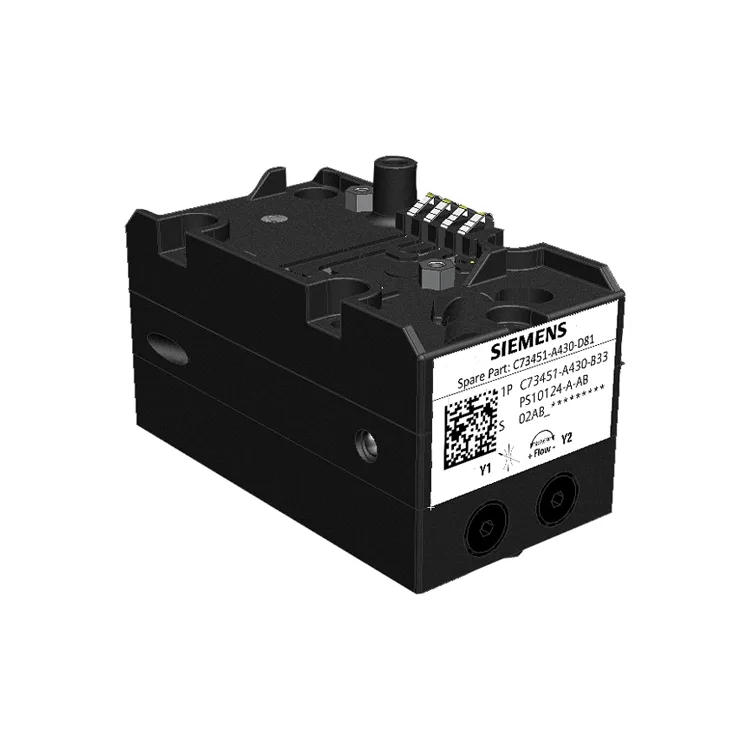

Siemens Pneumatic module C73451-A430-D81
C73451-A430-D81

Siemens
Siemens Pneumatic module C73451-A430-D81
Siemens C73451-A430-D81 Pneumatic module. For Siemens SIPART PS2 electropneumatic valve positioners. Supplied with full traceability and documentation. Price &…
Contact us for current availability and best price of C73451-A430-D81.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | C73451-A430-D81 |
| Official Product Name | Pneumatic module, double-acting (for SIPART PS2) |
| Applicable System | Siemens SIPART PS2 electropneumatic valve positioners (6DR5.2* / 6DR52xx series) |
| Product Type | Pneumatic module / pneumatic block |
| Equivalent Standard | N/A |
| Product Status | In Stock |
| Product family | SIPART PS2 positioner accessories |
| Actuation type | Double-acting (two pneumatic outputs) |
| Control principle | Piezoelectric servo valve, pulse-length modulation |
| Supply air pressure | 1.4 to 6 bar (approx. 0.3 to 0.6 MPa) |
| Air connection | G1/8 internal thread |
| Medium | Filtered, oil-free compressed air |
| Scope of delivery | Pneumatic module with seals and mounting screws |
| Net weight | 0.26 kg |
| Packaging dimensions (L x W x H) | 130 x 60 x 70 mm |
| Degree of protection | IP66 when installed in the positioner housing |
| Product lifecycle | Active product |
| Article number | C73451-A430-D81 |
Product Description
Siemens C73451-A430-D81 Pneumatic module. For Siemens SIPART PS2 electropneumatic valve positioners. Supplied with full traceability and documentation.
It supplies two independent air paths to drive a double-acting pneumatic actuator, giving forward and reverse pressure for precise valve positioning. The module uses piezoelectric valve technology, so steady-state air consumption is very low and response is fast. It is supplied as a factory assembly together with matching seals and mounting screws, allowing direct replacement on the positioner. This is the double-acting version and is not interchangeable with the single-acting module C73451-A430-D80. The Siemens C73451-A430-D81 is a double-acting pneumatic module, or pneumatic block, for the SIPART PS2 electropneumatic valve positioner family.
Basic Product Information
- Piezoelectric servo valve with pulse-length modulation for fast response and precise positioning
- Very low steady-state air consumption, reducing long-term compressed-air cost
- Supplied complete with matching seals and mounting screws for direct on-site replacement
- Dedicated spare for SIPART PS2 positioners; not interchangeable with the single-acting version
- Double-acting pneumatic module providing two independent air outputs for double-acting actuators
Technical Specifications
Version & Model Difference
The C73451-A430-D81 is the double-acting version of the SIPART PS2 pneumatic module: it provides two pneumatic outputs for double-acting actuators. The single-acting version C73451-A430-D80 has one output and relies on spring return, and the two are not interchangeable. When replacing a module, always match the complete suffix of the existing part, since only the correct double-acting module will drive the actuator as intended.
Application Scenarios
- Double-acting control valves in chemical, power and metallurgical plants
- Fast, bidirectional process-control loops that need no spring-return actuator
- Maintenance replacement of the pneumatic block on SIPART PS2 positioners
- Water treatment, pulp and paper, and oil and gas valve-positioning applications
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens C73451-A430-D81?
It is a double-acting pneumatic module (pneumatic block) for Siemens SIPART PS2 electropneumatic valve positioners, used to drive double-acting pneumatic actuators with two independent air outputs.
Is this module single-acting or double-acting?
It is the double-acting version with two pneumatic outputs. The single-acting counterpart is C73451-A430-D80, and the two are not interchangeable.
Which air supply pressure is required?
The module operates on filtered, oil-free compressed air at approximately 1.4 to 6 bar, in line with the SIPART PS2 positioner air supply specification.
What is included with the module?
It is supplied as a factory assembly with matching seals and mounting screws, allowing direct replacement on the positioner without extra fittings.
