Siemens Weighing Module 7MH4950-2AA01
7MH4950-2AA01

Siemens

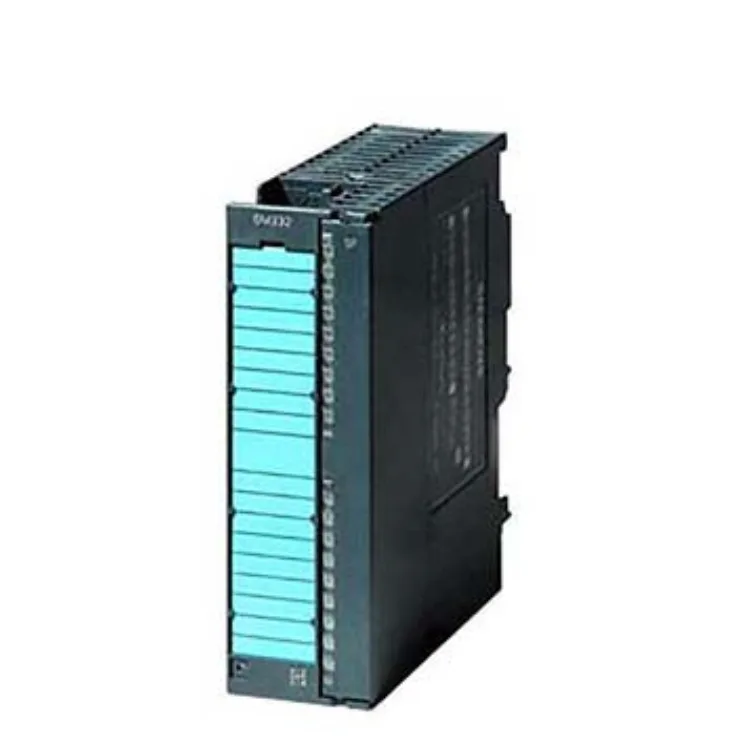

Siemens Weighing Module 7MH4950-2AA01
Siemens 7MH4950-2AA01 Weighing Module. For SIMATIC S7-300 and ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock. Price …
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 7MH4950-2AA01 |
| Official Product Name | SIWAREX U Weighing Electronics (Two-Channel Version) |
| Applicable System | SIMATIC S7-300 and ET 200M |
| Product Type | Weighing Module / Weighing Electronics |
| Equivalent Standard | EN 45501 (non-legal-for-trade, nIND 3000) |
| Product Status | In Stock (Siemens phase-out started) |
| Channels | 2 (for connecting two scales) |
| Load Cell Interface | 2 x LC input, 1-4 mV/V, analog load cells / strain gauges (full bridge) |
| Communication | 1 x RS232 (PC connection), 1 x TTY (remote display via bus connector) |
| Analog Output | 0/4 to 20 mA |
| Internal Resolution | 65,535 |
| Minimum Measuring Signal | 1.5 uV (delta U min / d) |
| Error Limit | Approx. 0.05 % of full scale at 20 degrees C +/- 10 K (DIN 1319-1) |
| Supply Voltage | 24 V DC |
| Compatible Systems | SIMATIC S7-300, ET 200M (also S7-400(H), PCS 7(H) via ET 200M) |
| Dimensions (W x H x D) | 125 x 40 x 130 mm (DIN rail mount) |
| Net Weight | Approx. 0.224 kg |
| Country of Origin | Germany |
| Product Family | SIWAREX U weighing electronics |
Product Description
Siemens 7MH4950-2AA01 Weighing Module. For SIMATIC S7-300 and ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock.
It accepts two analog load cell or strain gauge inputs (full bridge) with a 1-4 mV/V signal range and provides an analog output together with RS232 and TTY interfaces. The module installs directly in SIMATIC S7-300 and ET 200M systems and can also be operated stand-alone through ET 200M without a SIMATIC CPU. Its high internal resolution makes it suitable for batching, blending, filling and level or force measurement. The compact housing measures 125 x 40 x 130 mm for DIN-rail mounting. The Siemens 7MH4950-2AA01 is a SIWAREX U weighing electronics module in its two-channel version, designed to connect and evaluate two platform or hopper scales.
Basic Product Information
- Two load cell inputs for analog load cells or strain gauges wired as full bridges, 1-4 mV/V
- RS232 interface for PC connection and TTY interface for a remote display via bus connector
- Analog output (0/4 to 20 mA) for transferring the measured weight value
- Internal resolution 65,535 with a minimum measuring signal of 1.5 uV and an error limit of approx. 0.05 %
- Direct integration in SIMATIC S7-300; via ET 200M it also serves S7-400(H), PCS 7(H) and third-party systems
- Two-channel SIWAREX U weighing electronics for connecting and evaluating two scales simultaneously
Technical Specifications
Version & Model Difference
The 7MH4950-2AA01 is the two-channel version of the SIWAREX U weighing electronics and connects two scales, whereas single-channel SIWAREX U variants serve one-scale applications. It integrates directly into the S7-300 or, through ET 200M, into S7-400(H), PCS 7(H) and third-party automation systems, and can also run stand-alone with ET 200M without a SIMATIC CPU. Siemens lists the series under a phase-out lifecycle, so the exact variant and stock should be confirmed before ordering.
Application Scenarios
- Hopper, tank and platform scales
- Weighing batching and blending systems
- Fill-level and silo level measurement
- Belt tension and force measurement
- Crane load and overload monitoring
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many scales can the 7MH4950-2AA01 handle?
It is the two-channel version of SIWAREX U and can connect and evaluate two platform or hopper scales simultaneously.
What interfaces does the module provide?
One RS232 port for PC connection, one TTY interface for a remote display via bus connector, and an analog output of 0/4 to 20 mA.
Which systems is it compatible with?
SIMATIC S7-300 directly and ET 200M for S7-400(H), PCS 7(H) and third-party systems; it can also run stand-alone with ET 200M and no SIMATIC CPU.
What accuracy can it achieve?
An internal resolution of 65,535, a minimum measuring signal of 1.5 uV and an error limit of about 0.05 % of full scale at 20 degrees C.
