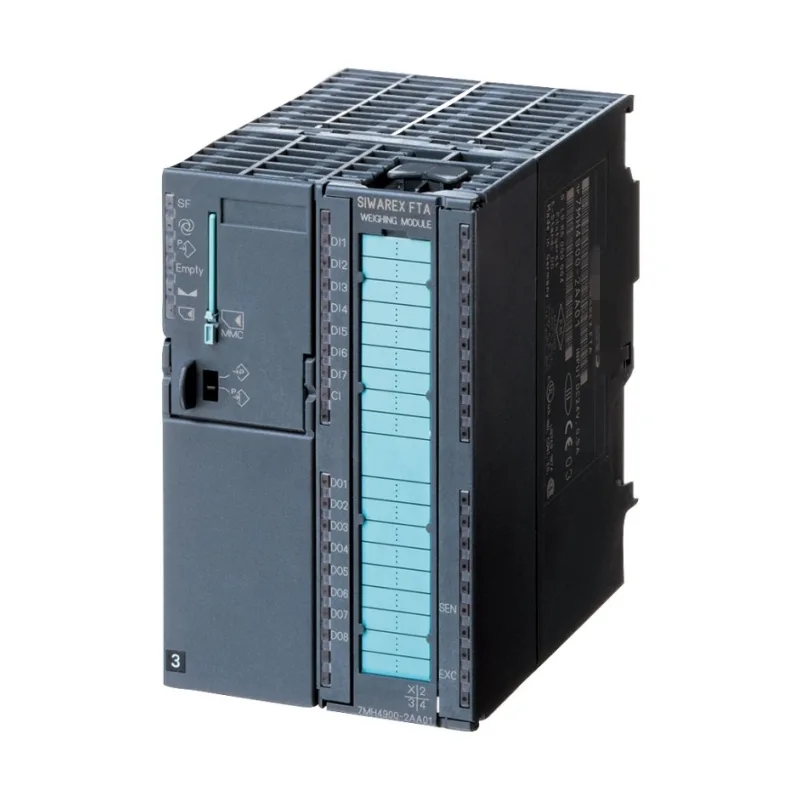

Siemens Weighing Module 7MH4900-2AA01

7MH4900-2AA01

Siemens Siemens

Siemens Weighing Module 7MH4900-2AA01

Siemens 7MH4900-2AA01 Weighing Module. For SIMATIC S7-300 and ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock. Price …

$353.30
Previous-Generation ModelAvailability on request

Quoted price from our sales team

Specifications

BrandSiemens
Model Number7MH4900-2AA01
Official Product NameSIWAREX FTA Weighing Module (Legal-for-Trade)
Applicable SystemSIMATIC S7-300 and ET 200M
Product TypeWeighing Module / Weighing Electronics
Equivalent StandardOIML R76, R51 and R107 with MMC card 7MH4900-2AY20; EC type approval 3 x 6000d
Product StatusIn Stock (Siemens lists this article as a phased-out spare part)
Channels1 (single-channel)
Load Cell Interface1 x LC interface, 1-4 mV/V, analog load cells / strain gauges (full bridge)
Digital Inputs7 x DI
Digital Outputs8 x DQ
Analog Output1 x AQ
Counter / Clock Input1 x CI
Communication1 x RS485, 1 x RS232
Compatible SystemSIMATIC S7-300, ET 200M
Accuracy / ApprovalEC type approval 3 x 6000d (legal-for-trade with MMC card 7MH4900-2AY20)
Net WeightApprox. 0.5 kg
Packaging Dimensions (W x L x H)Approx. 87 x 151 x 128 mm
Country of OriginGermany
Product FamilySIWAREX FTA weighing electronics

Product Description

Siemens 7MH4900-2AA01 Weighing Module. For SIMATIC S7-300 and ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock.

It is a single-channel module that processes analog load cell or strain gauge signals (full bridges, 1-4 mV/V) directly on the SIMATIC S7-300 or ET 200M backplane. Its EC type approval of 3 x 6000d supports automatic dosing, filling/bagging, checkweighing and totalizing scales. With 7 digital inputs, 8 digital outputs, 1 analog output plus RS485 and RS232 interfaces, it brings high-speed weighing into existing SIMATIC architectures. The module is supplied as a Siemens spare part and Siemens lists the article as phased out, so availability should be confirmed before ordering. The Siemens 7MH4900-2AA01 is a SIWAREX FTA weighing electronics module for legal-for-trade and industrial weighing tasks.

Basic Product Information

  • Accepts analog load cells and strain gauges wired as full bridges with a 1-4 mV/V signal range
  • 7 digital inputs, 8 digital outputs, 1 analog output and 1 counter/clock input for direct process control
  • RS485 and RS232 interfaces for configuration and integration in the S7-300 / ET 200M environment
  • Fast internal update for automatic dosing, filling/bagging, checkweighing and totalizing tasks
  • Legal-for-trade operation is enabled with the dedicated MMC memory card 7MH4900-2AY20
  • Single-channel SIWAREX FTA weighing module for legal-for-trade and industrial weighing with EC type approval 3 x 6000d

Technical Specifications

Version & Model Difference

The 7MH4900-2AA01 is the SIWAREX FTA legal-for-trade single-channel module for automatic dosing, filling/bagging, checkweighing and totalizing scales. Legal-for-trade operation under OIML R76, R51 and R107 requires the dedicated MMC memory card 7MH4900-2AY20. The module follows the earlier 7MH4553-1AA41 generation. Siemens lists this article as phased out, and the S7-300 / ET 200M platform remains in service, so the exact order number should be cross-checked before ordering.

Application Scenarios

  • Automatic dosing and filling lines
  • Bagging and loading stations
  • Checkweighing and totalizing scales
  • Process weighing in food, chemical and building materials plants
  • Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
  • Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
  • Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
  • Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
  • Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
  • Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY

Frequently Asked Questions

What is the Siemens 7MH4900-2AA01 used for?

It is a SIWAREX FTA single-channel weighing module for legal-for-trade and industrial weighing, used for dosing, filling/bagging, checkweighing and totalizing on SIMATIC S7-300 and ET 200M.

Which load cells can it connect?

Analog load cells and strain gauges wired as full bridges with a 1-4 mV/V output range are connected to the single LC interface.

How is legal-for-trade operation enabled?

By inserting the dedicated MMC card 7MH4900-2AY20, which provides OIML R76, R51 and R107 compliance. The local verification laws of the country of use still apply.

Is the 7MH4900-2AA01 still available?

Siemens lists it as a phased-out spare part. Availability depends on stock, so the exact order number and required quantity should be confirmed with us before ordering.
