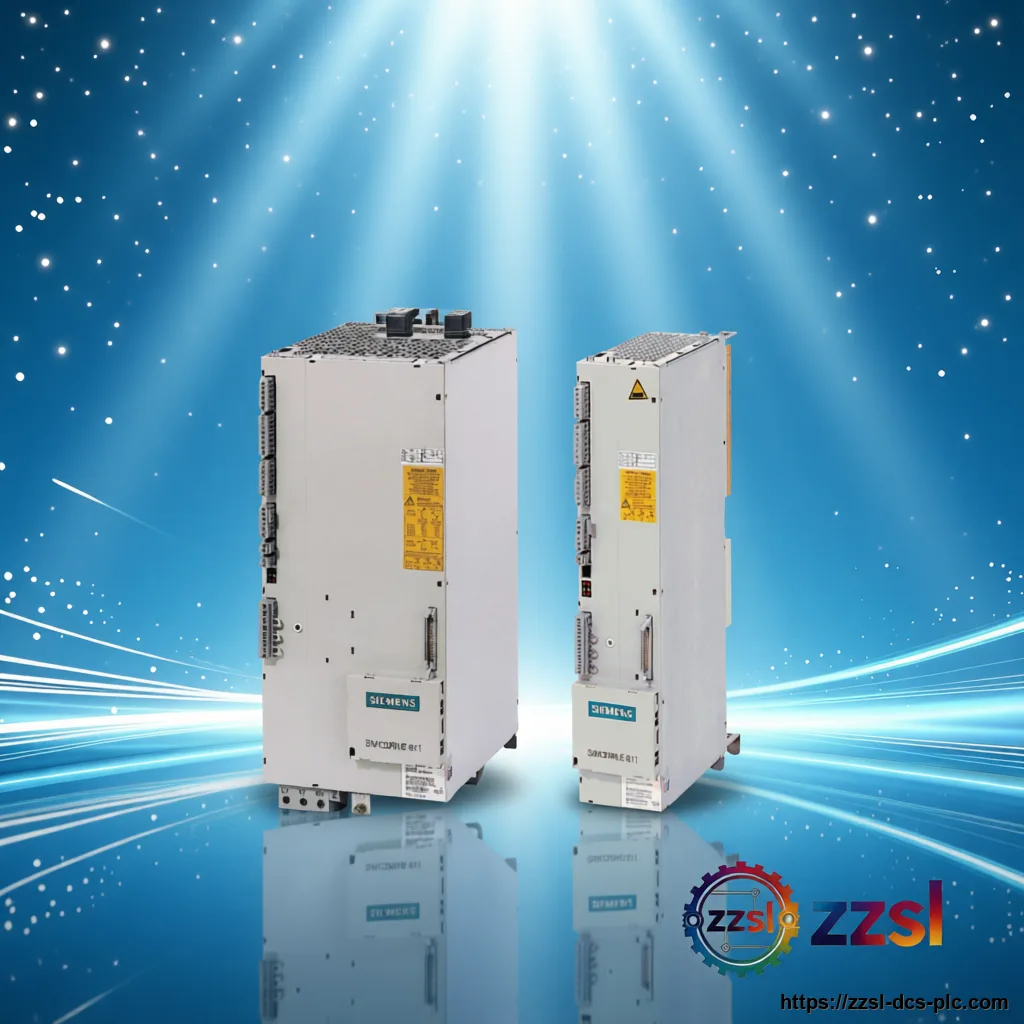

Siemens Power module 6sn1123-1aa00-0ha2
6sn1123-1aa00-0ha2
Siemens
Siemens Power module 6sn1123-1aa00-0ha2
['Home', 'Siemens Spare Parts', 'SIMODRIVE 611', '6SN1123-1AA00-0HA2'] Need Siemens 6sn1123-1aa00-0ha2? Power module fo…
Contact us for current availability and best price of 6sn1123-1aa00-0ha2.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SN1123-1AA00-0HA2 |
| Official Product Name | SIMODRIVE 611 power module, 1 axis, 8 A, internal cooling |
| Applicable System | SIMODRIVE 611 universal (611U) AC servo drive system with SINUMERIK CNC controls |
| Product Type | Power module (single-axis motor-side power unit) |
| Equivalent Standard | IEC 61800 series (adjustable speed electrical power drive systems); CE at system level |
| Product Status | Discontinued / Legacy (SIMODRIVE 611 withdrawn from active sales; spare parts service only) |
| Module type | Power module, 1 axis, internal cooling |
| Current rating | 8 A |
| Rated motor current | feed axis 3 A; main spindle 3 A |
| DC link voltage | 600 V DC nominal (common bus from the 6SN1145 I-R module) |
| Line supply (system) | 3 AC 380 to 480 V via the infeed module (confirm per configuration) |
| Control | closed-loop speed and torque control via the 6SN1118 control loop block |
| Operating temperature | 0 to 45 deg C (per distributor data; confirm per revision) |
| Degree of protection | IP20 |
| Weight | approx. 5 kg (distributor data 4.1 to 5.2 kg; confirm per revision) |
| Dimensions | N/A |
| Order number | 6SN1123-1AA00-0HA2 |
Product Description
It supplies one feed or spindle motor from the common 600 V DC link of the drive line-up and works together with a closed-loop control module (6SN1118 series) and an infeed/I-R module (6SN1145 series). Rated motor currents are 3 A for the feed axis and 3 A for the main spindle. The 0HA2 version is the updated revision of the 0HA1 module with the same electrical parameters and a mechanically compatible interface. SIMODRIVE 611 was withdrawn from active sales and this module is supplied on inquiry as a legacy spare part. The Siemens 6SN1123-1AA00-0HA2 is a single-axis power module of the SIMODRIVE 611 universal (611U) fully digital AC servo drive system, rated 8 A with internal cooling.
Basic Product Information
- Internal cooling design without a separate fan module, using the system air duct
- Rated motor current 3 A for feed axis and 3 A for main spindle duty
- Shares the common DC link with the infeed/I-R module (6SN1145 series) and is controlled by a 6SN1118 closed-loop control module
- Mechanically and electrically compatible with the earlier 0HA1 version for direct replacement
- Modular format for compact multi-axis cabinets
- Single-axis power module rated 8 A for one feed or spindle motor in a SIMODRIVE 611 line-up
Technical Specifications
Version & Model Difference
['The 0HAx block of the 6SN1123 range covers the 8 A rating: 0HA0 and 0HA1 are earlier versions and 0HA2 is the updated revision with identical electrical parameters.', 'Higher current ratings in the same 6SN1123 family use different suffix blocks, for example 0AA1 for 15 A, 0BA0/0BA1 for 25 A and 0CA0/0CA1 for 50 A.', 'Within one 6SN1123 model the final digit indicates the production technology generation (hybrid, through-hole or SMD); functionally the versions are interchangeable.']
Application Scenarios
- Feed axis drives of milling, turning and grinding machine tools
- Main spindle drives in CNC machining centers
- Transfer lines and special purpose machines with SIMODRIVE 611 line-ups
- Spare part replacement in installed SIMODRIVE 611 universal cabinets
It requires a closed-loop control module from the 6SN1118 series for speed and torque control and an infeed/I-R module from the 6SN1145 series to provide the regulated 600 V DC link, plus the motor cables and encoder feedback wiring.
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6SN1123-1AA00-0HA2?
It is a SIMODRIVE 611 universal single-axis power module rated 8 A with internal cooling, used to supply one feed or spindle motor from the common DC link of the drive line-up.
Can I use it instead of a 6SN1123-1AA00-0HA1?
Yes. The 0HA2 is the updated revision of the 0HA1 module with the same electrical parameters and a mechanically compatible interface, so it can directly replace the 0HA1 in the same line-up.
What else does this module need to work?
It requires a closed-loop control module from the 6SN1118 series for speed and torque control and an infeed/I-R module from the 6SN1145 series to provide the regulated 600 V DC link, plus the motor cables and encoder feedback wiring.
Is this module still available new from Siemens?
No. SIMODRIVE 611 was withdrawn from active sales and is maintained through spare parts service. We supply this module on inquiry from surplus, refurbished or tested used stock with a distributor warranty.
