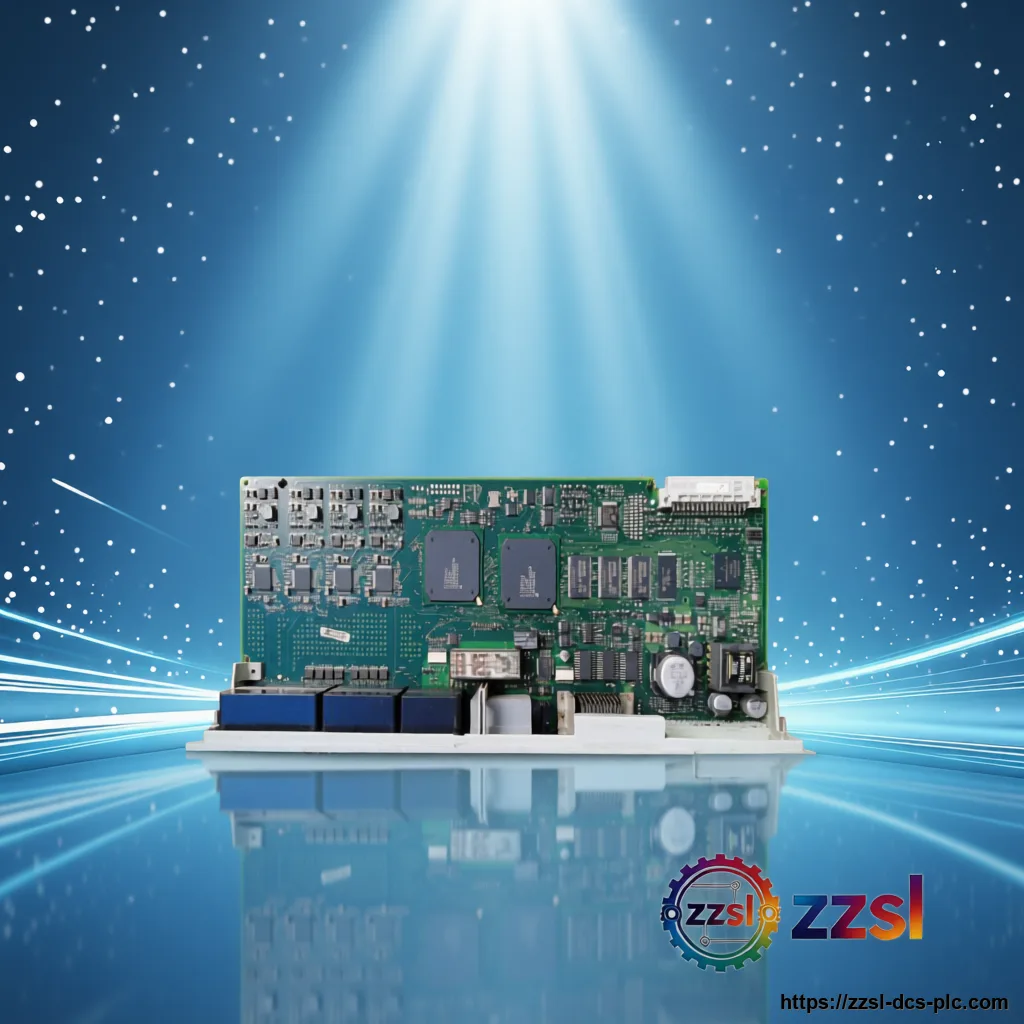

Siemens Closed-loop axis control unit 6sn1118-0bk11-0aa0
6sn1118-0bk11-0aa0
Siemens
Siemens Closed-loop axis control unit 6sn1118-0bk11-0aa0
Home > Siemens > SIMODRIVE 611 > 6SN1118-0BK11-0AA0 Need Siemens 6sn1118-0bk11-0aa0? Closed-loop axis control unit for SIMODRIVE 611 rack with SINUMER…
Contact us for current availability and best price of 6sn1118-0bk11-0aa0.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SN1118-0BK11-0AA0 |
| Official Product Name | SIMODRIVE 611 closed-loop control unit, 2 axes, resolver feedback, standard interface |
| Applicable System | SIMODRIVE 611 rack with SINUMERIK 810D / 840D |
| Product Type | Closed-loop axis control unit (control board) |
| Equivalent Standard | Related suffixes -0AA1 and -0AB0 differ in firmware behavior and pin assignment per service documentation |
| Product Status | Discontinued / Legacy (spare-parts service status; production ended) |
| Number of axes | 2 (independent or synchronized) |
| Feedback | Resolver (closed-loop position and speed control) |
| Regulation interface | Analog +/-10 V |
| Communication | DNC bus or SINUMERIK interface |
| Mounting | SIMODRIVE 611 rack with bus connection |
| Compatible power modules | 6SN1121 / 6SN1122 / 6SN1145 series |
| CNC compatibility | SINUMERIK 810D / 840D |
| Enable supply | +24 V DC (per service documentation of the 611 family) |
| Weight / dimensions | N/A |
| Module type | Closed-loop axis control unit |
Product Description
The module features an analog +/-10 V regulation interface for setpoint integration and is designed for mounting in a SIMODRIVE 611 rack with bus connection to the power modules. It is compatible with SINUMERIK 810D and 840D CNC systems and works with 611 power modules such as the 6SN1121, 6SN1122 and 6SN1145 series. Siemens has ended original production of the SIMODRIVE 611 closed-loop family, and the module is in spare-parts service status; the recommended migration path for new applications is the SINAMICS S120 platform. The Siemens 6SN1118-0BK11-0AA0 is a closed-loop control unit from the SIMODRIVE 611 range, providing closed-loop position and speed control for two independent or synchronized axes using resolver feedback.
Basic Product Information
- Resolver feedback for continuous motor position and speed monitoring
- Analog +/-10 V regulation interface for setpoint integration
- SIMODRIVE 611 rack mounting with bus connection to power modules
- Compatible with SINUMERIK 810D / 840D CNC systems
- Closed-loop position and speed control for two independent or synchronized axes
Technical Specifications
Version & Model Difference
The 6SN1118-0BK11-0AA0 is the main listed code of the 6SN1118-0BK closed-loop family. Service documentation notes that variants with -0AA1 or -0AB0 suffixes have different firmware behavior and slightly different pin assignments, so the exact order number on the front nameplate must be verified before ordering spares. Enhanced revisions 6SN1118-0BL11-0AA0 and 6SN1118-0BN11-0AA0 improve analog circuit reliability and EMI resistance.
Application Scenarios
- Multi-axis CNC machining centers, lathes and milling machines
- Laser, plasma and waterjet cutting systems and synchronized motion control
- Robotic production and assembly lines using SIMODRIVE 611 closed-loop units
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6SN1118-0BK11-0AA0?
It is a SIMODRIVE 611 closed-loop control unit that controls two axes with resolver feedback and an analog +/-10 V setpoint interface.
Which CNC systems is it compatible with?
The unit is compatible with SINUMERIK 810D and SINUMERIK 840D CNC systems and is mounted in a SIMODRIVE 611 rack.
Is this module still in production?
No. Siemens has ended production of the SIMODRIVE 611 closed-loop family; the module is in spare-parts service status and available through surplus and certified repair channels.
Are there enhanced revisions?
Yes. The 6SN1118-0BL11-0AA0 and 6SN1118-0BN11-0AA0 revisions improve analog circuit reliability and electromagnetic interference resistance. Verify the exact suffix before ordering.
