6sl3162-2bb00-0aa0

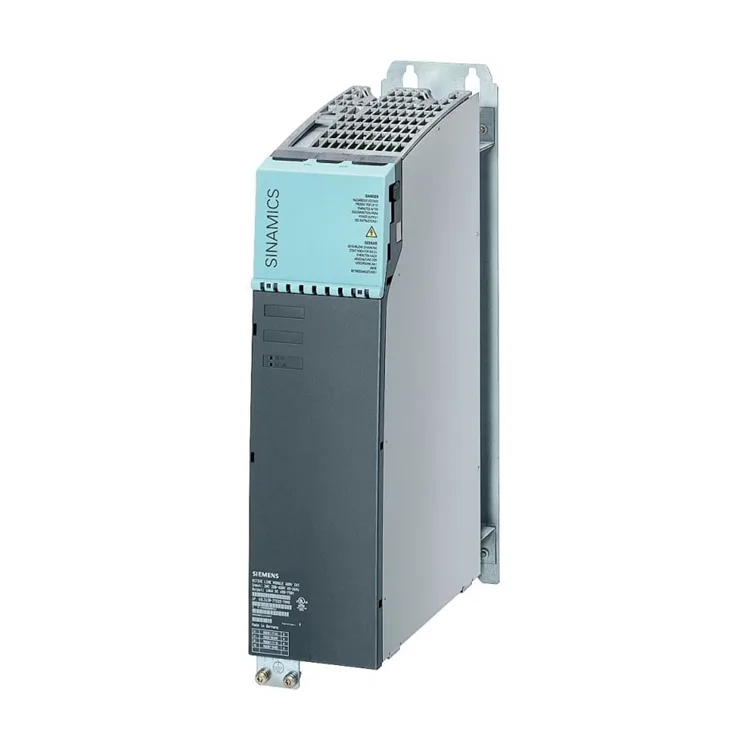

Siemens Active Line Module 6sl3162-2bb00-0aa0
Siemens
Siemens Active Line Module 6sl3162-2bb00-0aa0
Home > Products > Siemens > SINAMICS S120 Line Module Need Siemens 6sl3162-2bb00-0aa0? Active Line Module for SINAMICS S120 drive system. Supplied wit…
Contact us for current availability and best price of 6sl3162-2bb00-0aa0.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3162-2BB00-0AA0 |
| Official Product Name | SINAMICS S120 Active Line Module, 16 kW, 380-480V 3AC |
| Applicable System | SINAMICS S120 drive system |
| Product Type | Active Line Module (ALM) |
| Equivalent Standard | IEC 61800-3, IEC 61800-5-1 |
| Product Status | In Stock |
| Input Voltage | 380 to 480 V 3-phase AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | DC link voltage, regulated |
| DC Link Voltage | Approx. 1.35 × input voltage (e.g., 513 V DC at 380 V AC) |
| Rated Current | Approx. 27 A (at 400 V AC) |
| Cooling Method | Air cooling, integrated fan |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | Approx. 380 x 100 x 270 mm (depending on version) |
| Weight | Approx. 7.5 kg |
| Operating Temperature | 0 to +40 °C (up to +55 °C with derating) |
| Storage Temperature | -25 to +70 °C |
| Rated Power | 16 kW |
Product Description
It is designed to supply power to the DC link of a SINAMICS S120 drive lineup and features regenerative feedback capability, allowing energy to be returned to the supply network during braking. This module is rated for a nominal output of 16 kW and operates on a 380–480 V 3-phase AC supply, making it suitable for a wide range of industrial drive applications. The Active Line Module is a key component in SINAMICS S120 systems, providing a regulated DC link voltage and ensuring sinusoidal line currents with a low harmonic content. It includes an integrated line filter and supports both motoring and regenerative operation. The module is part of the modular SINAMICS S120 drive system, which is widely used in machine tools, packaging machinery, textile machines, and other demanding automation applications. The 6SL3162-2BB00-0AA0 is designed for installation in a control cabinet and requires additional components such as a Control Unit and Motor Modules to form a complete drive system. This particular model is a genuine Siemens original part, ensuring full compatibility and reliability. It is commonly used in applications requiring precise speed and torque control, energy efficiency, and high dynamic performance. The module supports advanced functions such as integrated safety functions (depending on the Control Unit) and can be integrated into automation networks via PROFIBUS or PROFINET. With its robust construction and Siemens quality, the 6SL3162-2BB00-0AA0 is a reliable choice for industrial drive solutions. The Siemens 6SL3162-2BB00-0AA0 is an Active Line Module (ALM) from the SINAMICS S120 drive system family.
Basic Product Information
- Regulated DC link voltage for stable drive operation
- Integrated line filter for reduced harmonics and sinusoidal line currents
- Rated power 16 kW, suitable for 380-480 V 3-phase AC supply
- Compact design for space-saving installation in control cabinets
- Compatible with SINAMICS S120 modular drive system
- Supports advanced safety functions when combined with appropriate Control Unit
- Regenerative feedback capability for energy recovery during braking
Technical Specifications
Version & Model Difference
The 6SL3162-2BB00-0AA0 is a specific version of the SINAMICS S120 Active Line Module. Different versions may vary in power rating, voltage range, and cooling method. This model is rated at 16 kW and 380-480 V 3AC. Other versions in the 6SL3162 series may have different power ratings (e.g., 5 kW, 10 kW, 20 kW) or different input voltages. It is important to verify the exact model number and specifications when replacing or upgrading.
Application Scenarios
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the function of the Siemens 6SL3162-2BB00-0AA0?
The 6SL3162-2BB00-0AA0 is an Active Line Module (ALM) in the SINAMICS S120 drive system. It supplies the DC link with regulated voltage and allows regenerative feedback, returning energy to the supply network during braking. It also includes an integrated line filter to reduce harmonics.
What is the power rating of this module?
The module is rated for 16 kW output power and operates on a 380–480 V 3-phase AC supply. It provides a regulated DC link voltage for the connected Motor Modules.
Can this module be used with any SINAMICS S120 Control Unit?
Yes, it is compatible with SINAMICS S120 Control Units such as CU310-2 and CU320-2. However, the Control Unit must be configured appropriately for the specific application and firmware version.
What are the typical applications for this Active Line Module?
It is commonly used in machine tools, packaging machines, textile machinery, and other industrial automation systems that require high dynamic performance, energy efficiency, and regenerative capability.
