Siemens Smart Line Module 6sl3130-6ae21-0ab0
6sl3130-6ae21-0ab0
Siemens

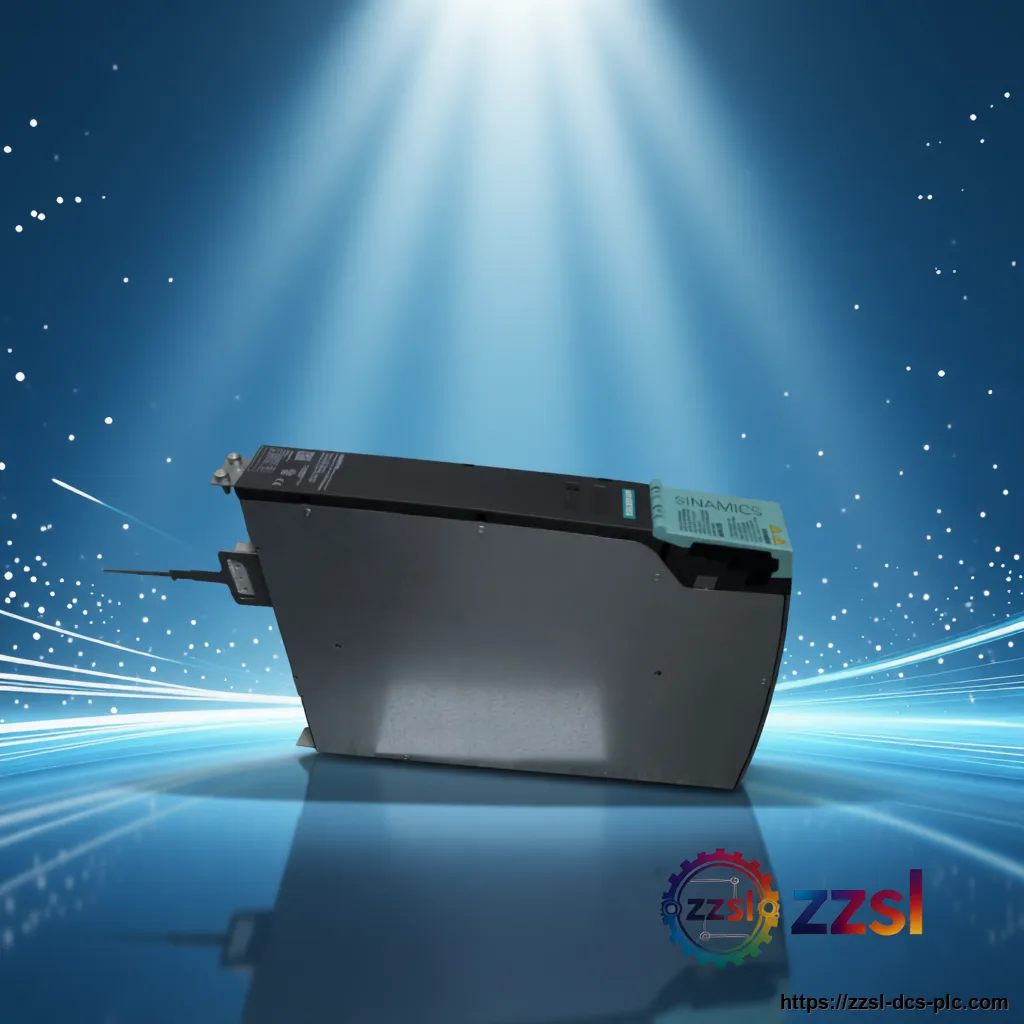

Siemens Smart Line Module 6sl3130-6ae21-0ab0
Home > Siemens > SINAMICS S120 > 6SL3130-6AE21-0AB0 Need Siemens 6sl3130-6ae21-0ab0? Smart Line Module for SINAMICS S120 drive system. Supplied with f…
Contact us for current availability and best price of 6sl3130-6ae21-0ab0.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3130-6AE21-0AB0 |
| Official Product Name | SINAMICS S120 Smart Line Module, 10 kW, 380 V to 480 V 3 AC (with line reactor 6SL3000-0CE21-0AA0) |
| Applicable System | SINAMICS S120 drive system (booksize format) |
| Product Type | Smart Line Module (infeed / line supply module) |
| Equivalent Standard | Paired with line reactor 6SL3000-0CE21-0AA0 per Siemens catalog data |
| Product Status | Discontinued / Legacy (confirm availability with Siemens) |
| Rated infeed power | 10 kW |
| Line voltage | 380 V to 480 V 3 AC |
| Degree of protection | IP20 |
| Cooling | Internal air cooling, coated |
| Dimensions | 150 x 380 x 270 mm (W x H x D) |
| Weight | Approx. 7.5 kg |
| Line reactor | 6SL3000-0CE21-0AA0 (order separately) |
| Rated input current | Approx. 13 A (per S120 user manual data) |
| Rated DC link current | Approx. 16.6 A (per S120 user manual data) |
| Efficiency | Approx. 0.98 (per S120 user manual data) |
| Electronics supply | 24 V DC, approx. 1.3 A consumption (per S120 user manual data) |
| Module type | Smart Line Module (SLM) |
Product Description
The module supplies the DC link of a SINAMICS S120 multi-axis drive group and is typically paired with the 6SL3000-0CE21-0AA0 line reactor. It is IP20 rated, internally air cooled with coated boards, and measures 150 x 380 x 270 mm (W x H x D) with a weight of approximately 7.5 kg. For 5 kW and 10 kW Smart Line Modules, energy feedback of braking energy can be selected via terminal X22:2; where feedback is not permitted, a braking unit and braking resistor can be connected. The unit is supplied from legacy stock for maintenance of installed S120 systems. The Siemens 6SL3130-6AE21-0AB0 is a Smart Line Module (SLM) from the SINAMICS S120 drive family, rated 10 kW infeed power for line voltages from 380 V to 480 V three-phase AC.
Basic Product Information
- Line voltage 380 V to 480 V three-phase AC, IP20 degree of protection
- Internal air cooling with coated boards for harsh industrial environments
- Braking energy feedback selectable via terminal X22:2 for 5 kW and 10 kW SLM units
- Terminal-controlled supply and enable sequence (16 kW and 36 kW SLM use DRIVE-CLiQ control)
- Smart Line Module with 10 kW rated infeed power for SINAMICS S120 drive groups
Technical Specifications
Version & Model Difference
The 6SL3130-6AE21-0AB0 is the -0AB0 variant of the 10 kW Smart Line Module. In the Siemens catalog the same 10 kW class is also listed as 6SL3130-6AE21-0AA0 (built-in unit) and 6SL3131-6AE21-0AA0 (push-through unit); the -0AB0 variant pairs with the 6SL3000-0CE21-0AA0 line reactor. Adjacent classes are 6SL3130-6AE15-0AB0 (5 kW), 6SL3130-6TE21-6AB0 (16 kW) and 6SL3130-6TE23-6AB0 (36 kW). Confirm the exact order number and cooling variant against your cabinet design.
Application Scenarios
- DC link supply for multi-axis SINAMICS S120 drive groups in machine tools and production machines
- Retrofit and spare-part replacement of installed S120 Smart Line Modules
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6SL3130-6AE21-0AB0?
It is a Smart Line Module from the SINAMICS S120 drive family with a 10 kW rated infeed power for 380 V to 480 V three-phase AC supplies.
Which line reactor is required?
Siemens catalog data pairs the 10 kW Smart Line Module with the 6SL3000-0CE21-0AA0 line reactor.
How is the module cooled and protected?
It uses internal air cooling with coated boards and has an IP20 degree of protection for cabinet installation.
Can braking energy be fed back?
For 5 kW and 10 kW Smart Line Modules, energy feedback can be selected via terminal X22:2; where feedback is not permitted, a braking unit and braking resistor can be connected instead.
