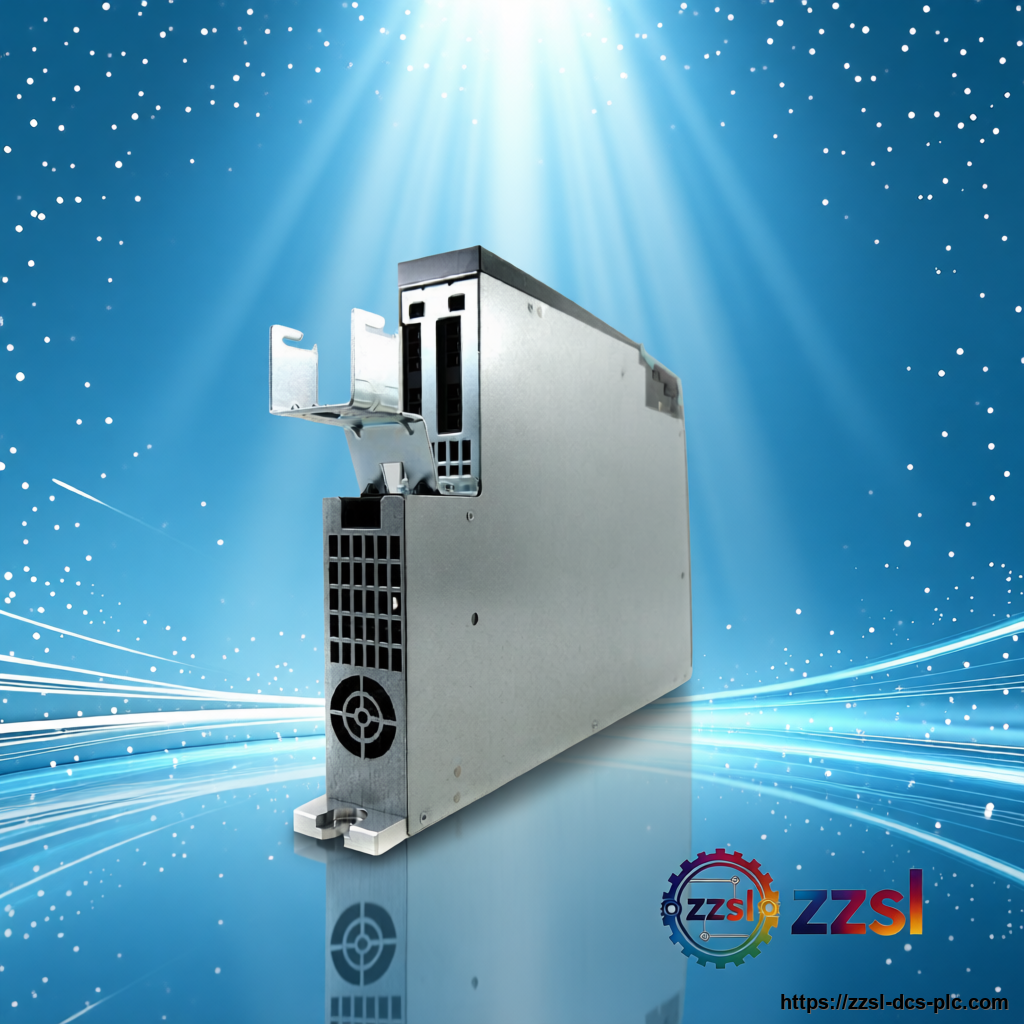

Siemens Motor Module 6sl3120-2te15-0ad0
Siemens
Siemens Motor Module 6sl3120-2te15-0ad0
Home > Products > Siemens > Motor Modules Need Siemens 6sl3120-2te15-0ad0? Motor Module for SINAMICS S120 drive system. Supplied with full traceabilit…
Contact us for current availability and best price of 6sl3120-2te15-0ad0.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3120-2TE15-0AD0 |
| Official Product Name | SINAMICS S120 Single Motor Module |
| Applicable System | SINAMICS S120 drive system |
| Product Type | Motor Module |
| Equivalent Standard | IEC 61800-3, IEC 61800-5-1 |
| Product Status | In Stock |
| Rated Motor Power | 7.5 kW |
| Input Voltage | 400 V 3AC |
| Cooling Method | Internal air cooling |
| Interface | DRIVE-CLiQ |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | Approx. 50 mm x 380 mm x 270 mm |
| Weight | Approx. 4.5 kg |
| Operating Temperature | 0 °C to +40 °C (up to +55 °C with derating) |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | CE, cULus, EAC |
| Rated Output Current | 15 A |
Product Description
It operates with a 400V 3AC input voltage and delivers a rated output current of 15A, supporting a motor power of 7.5kW. This module features internal air cooling and is part of the modular SINAMICS S120 platform, which allows flexible configuration for multi-axis systems. The 6SL3120-2TE15-0AD0 is commonly used in conjunction with a Control Unit and Line Module to form a complete drive system. The module is engineered for precise speed and torque control of synchronous and induction motors. It supports advanced drive functions such as vector control, servo control, and V/f control, making it suitable for a wide range of applications including machine tools, packaging machinery, printing presses, and material handling systems. The integrated DRIVE-CLiQ interface ensures fast and reliable communication with other system components, simplifying commissioning and diagnostics. With its compact design and robust construction, the 6SL3120-2TE15-0AD0 offers high reliability and efficiency. It is designed for installation in control cabinets and meets relevant industrial standards. The module includes comprehensive protection features such as overvoltage, undervoltage, overcurrent, and overtemperature monitoring, ensuring safe operation and long service life. As a genuine Siemens product, it is supported by global technical support and documentation. The Siemens 6SL3120-2TE15-0AD0 is a Single Motor Module from the SINAMICS S120 drive system, designed for high-performance industrial motion control applications.
Basic Product Information
- Rated output current 15A, motor power 7.5kW
- 400V 3AC input voltage
- Internal air cooling for efficient heat dissipation
- Integrated DRIVE-CLiQ interface for fast communication
- Supports vector control, servo control, and V/f control
- Compact design for space-saving cabinet installation
- Comprehensive protection functions: overvoltage, undervoltage, overcurrent, overtemperature
- Single Motor Module for SINAMICS S120 drive system
Technical Specifications
Version & Model Difference
The 6SL3120-2TE15-0AD0 is a specific variant within the SINAMICS S120 Single Motor Module family. The '2TE15' indicates a single motor module with 15A output current and internal air cooling. Different versions may have varying current ratings (e.g., 5A, 9A, 18A, 30A) or cooling methods (internal vs. external air cooling). The '0AD0' suffix denotes the hardware version and firmware compatibility. It is important to verify the exact version required for your system, as newer firmware versions may offer enhanced features or improved performance. Always consult the Siemens catalog or technical documentation for the most up-to-date information.
Application Scenarios
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the rated output current of the Siemens 6SL3120-2TE15-0AD0?
The rated output current is 15 A.
What is the motor power rating for this module?
The module supports a motor power of 7.5 kW.
What cooling method does the 6SL3120-2TE15-0AD0 use?
It uses internal air cooling.
Is the 6SL3120-2TE15-0AD0 compatible with other SINAMICS S120 components?
Yes, it is designed to work seamlessly with other SINAMICS S120 components such as Control Units, Line Modules, and motors via DRIVE-CLiQ interface.
