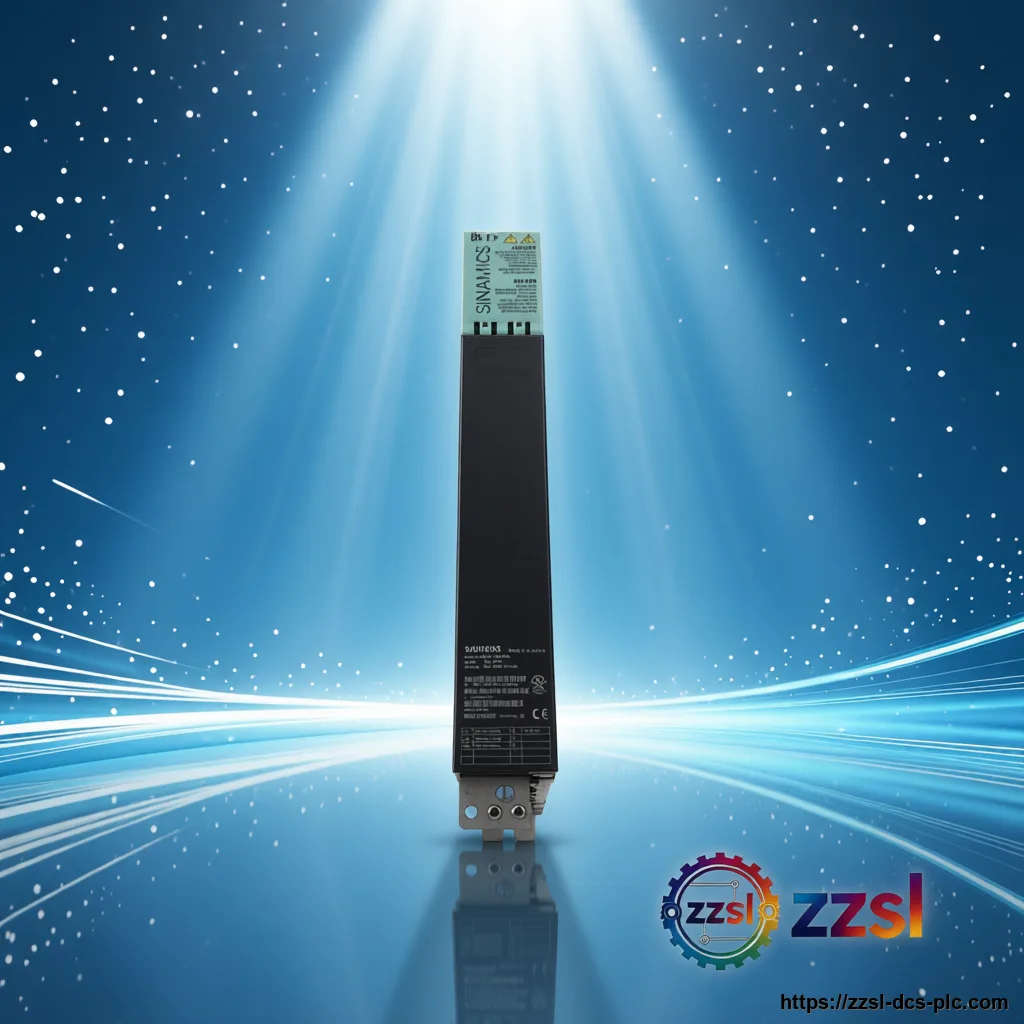

Siemens Double Motor Module 6sl3120-2te13-0aa0
6sl3120-2te13-0aa0
Siemens
Siemens Double Motor Module 6sl3120-2te13-0aa0
['Home', 'Siemens Spare Parts', 'SINAMICS S120 Drives', '6SL3120-2TE13-0AA0'] Need Siemens 6sl3120-2te13-0aa0? Double M…
Contact us for current availability and best price of 6sl3120-2te13-0aa0.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3120-2TE13-0AA0 |
| Official Product Name | SINAMICS S120 Double Motor Module, 2 x 3 A, internal air cooling, incl. DRIVE-CLiQ cable |
| Applicable System | SINAMICS S120 booksize drive system (with CU Control Unit and Line Module) |
| Product Type | Double Motor Module (power section, non-regenerative) |
| Equivalent Standard | IEC 61800 series (adjustable speed electrical power drive systems); CE / cULus |
| Product Status | Discontinued / Legacy (superseded by the current SINAMICS S120 booksize motor module generation) |
| Rated output current | 2 x 3 A |
| S6 duty (40%) output current | 2 x 3.5 A |
| Maximum output current | 2 x 6 A |
| Rated power at 600 V DC DC link | 2 x 1.6 kW |
| DC link voltage range | 510 to 750 V DC |
| DC link overvoltage trip | 820 V (plus/minus 2%) |
| DC link busbar current carrying capacity | 100 A |
| DC link capacitance | 110 microfarad |
| Electronics power supply | 24 V DC |
| Current demand at 24 V DC | 0.8 A |
| 24 V DC busbar current carrying capacity | 20 A |
| Efficiency | approx. 0.97 |
| Cooling method | Internal air cooling |
| Degree of protection | IP20 |
| Communication interface | DRIVE-CLiQ |
| Dimensions and weight | N/A |
| Country of origin | Germany |
| Module type | Double Motor Module, booksize format |
Product Description
It converts the DC link voltage supplied by a Line Module into controllable three-phase AC output for two motors, with a rated output current of 2 x 3 A and internal air cooling. The module executes speed and torque setpoints issued by a SINAMICS Control Unit over DRIVE-CLiQ and is used in multi-axis servo and positioning applications such as machine tools, packaging and handling equipment. As a legacy spare part it is supplied on inquiry for maintenance and retrofit of existing S120 installations. The Siemens 6SL3120-2TE13-0AA0 is a Booksize Double Motor Module of the SINAMICS S120 drive system.
Basic Product Information
- Rated output current 2 x 3 A with internal air cooling, no external fan module required
- Powered from the common SINAMICS DC link (510 to 750 V DC) provided by a Line Module such as an Active or Basic Line Module
- DRIVE-CLiQ interface for automatic parameterization, motor identification and comprehensive diagnostics from the Control Unit
- Integrated electronic protection against overcurrent, overvoltage, undervoltage, overheating and short circuit, with LED status indication
- Safe standstill input for drive-level safety shutdown in accordance with IEC 61800-5-2
- Double motor module in booksize format driving two motors from one module, saving mounting width and control cabinet space
Technical Specifications
Version & Model Difference
['6SL3120-2TE13-0AA0 is the legacy Double Motor Module rated 2 x 3 A; sibling double modules in the same legacy range are 6SL3120-2TE15-0AA0 (2 x 5 A), 6SL3120-2TE21-0AA0 (2 x 9 A) and 6SL3120-2TE21-8AA0 (2 x 18 A).', 'The current-generation replacement for 3 A single-axis duty is the 6SL3120-1TE13-0AD0 Single Motor Module (D type), which is not a drop-in substitute for a double module because it drives one motor per module.', 'Legacy double motor modules and current C/D type single motor modules are spare-parts compatible within the booksize range but differ in width, motor connector and cooling concept; confirm the mechanical envelope before migration.']
Application Scenarios
- Machine tools: feed and auxiliary axes of milling, turning and grinding machines
- Packaging and printing machines with synchronized multi-axis motion
- Material handling and conveyor systems requiring precise speed control
- Retrofit and maintenance of existing SINAMICS S120 booksize installations
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6SL3120-2TE13-0AA0?
It is a SINAMICS S120 Booksize Double Motor Module rated 2 x 3 A with internal air cooling. It converts the DC link voltage of the S120 system into three-phase AC output for two servo or induction motors and is controlled by a SINAMICS Control Unit over DRIVE-CLiQ.
Is the 6SL3120-2TE13-0AA0 still available new from Siemens?
No. This module belongs to a legacy generation of SINAMICS S120 booksize motor modules and is no longer an active catalog item. Supply is limited to surplus, refurbished and spare-parts channels; we offer it on inquiry with price on request.
Can I replace a 6SL3120-2TE13-0AA0 with a current-generation single motor module?
Not directly. The 6SL3120-2TE13-0AA0 drives two motors from one module, while current-generation 6SL3120-1TE13-0AD0 modules drive one motor each. A migration also changes the mounting width and the motor connector, so the mechanical and electrical envelope must be reviewed before substitution.
What do I need to operate the 6SL3120-2TE13-0AA0?
The module needs a common SINAMICS DC link supplied by a Line Module (510 to 750 V DC), a 24 V DC electronics supply, a Control Unit for closed-loop control and DRIVE-CLiQ connectivity, plus motor cables and the motor power connector. Contact us to confirm the full bill of material for your axis configuration.
