6fc5357-0bb25-0ab0

Product Description

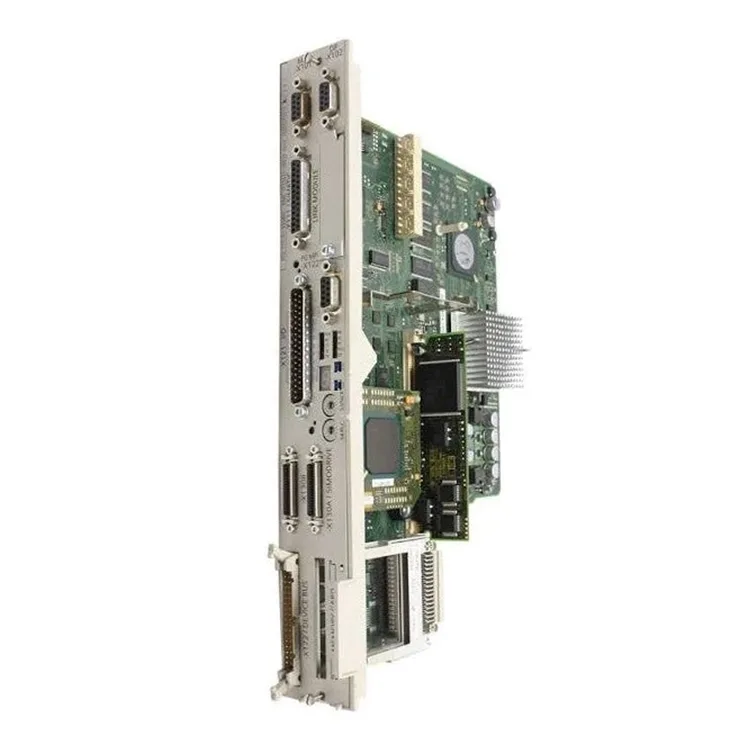

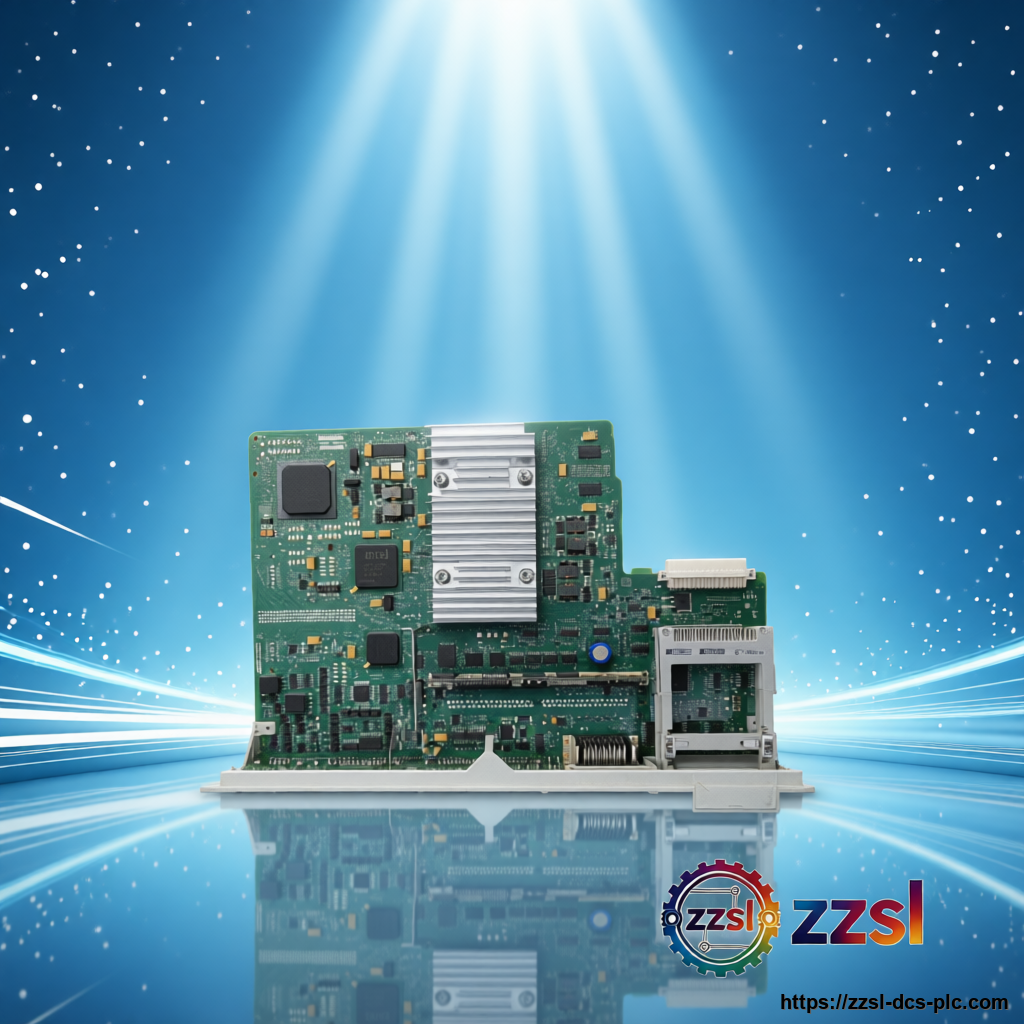

It serves as the central processing and motion control unit for machine tools, handling NC program execution, PLC logic, and communication with drives and I/O over the PROFIBUS DP network. The module is built on a 32-bit processor architecture and includes 128 MB of system memory for part programs and tool data. It is a core component in SINUMERIK 840D/DE systems used in milling, turning, grinding, and laser machining applications. The NCU 573.5 integrates the NCK (Numerical Control Kernel), PLC (Programmable Logic Controller), and HMI (Human Machine Interface) communication functions in a single module. It provides a 10/100 Mbps Ethernet interface for connection to the PCU (PC Unit) or operator panel, and a PROFIBUS DP interface for connecting SIMODRIVE 611 digital drives, distributed I/O, and other field devices. The module supports up to 31 axes/spindles depending on the system configuration and license, and is programmed using Siemens' proprietary motion control language and PLC programming tools. This unit is supplied as a genuine OEM spare part for maintenance and repair of existing SINUMERIK 840D installations. It is compatible with the SINUMERIK 840D/DE control platform and works with SIMODRIVE 611D drive systems, MCP (Machine Control Panel), and PCU 20/50/70 operator panels. The 6FC5357-0BB25-0AB0 is typically used in machine tools from manufacturers such as DMG, Mazak, Trumpf, and Emag, and is available with warranty and technical support. The Siemens 6FC5357-0BB25-0AB0 is an NCU 573.5 (Numerical Control Unit) module from the SINUMERIK 840D CNC control family.

Basic Product Information

• 128 MB system memory for NC programs and tool data
• 10/100 Mbps Ethernet interface for PCU/operator panel connection
• PROFIBUS DP interface for drives, I/O, and field devices
• Supports up to 31 axes/spindles depending on license and configuration
• Compatible with SIMODRIVE 611D digital drive system
• Designed for SINUMERIK 840D/DE CNC control platform
• Integrated NCK, PLC, and HMI communication in a single module

Technical Specifications

Version & Model Difference

The 6FC5357-0BB25-0AB0 is the NCU 573.5 version within the SINUMERIK 840D NCU 573 family. It differs from earlier NCU 573.2/573.3/573.4 variants in memory capacity, processor performance, and firmware compatibility. The NCU 573.5 typically offers 128 MB memory and supports later firmware versions of the SINUMERIK 840D software. It is not directly interchangeable with NCU 571, NCU 572, or NCU 573.1-573.4 modules without checking system compatibility and firmware requirements. Always verify the exact NCU version and software release required by your machine before replacement.
