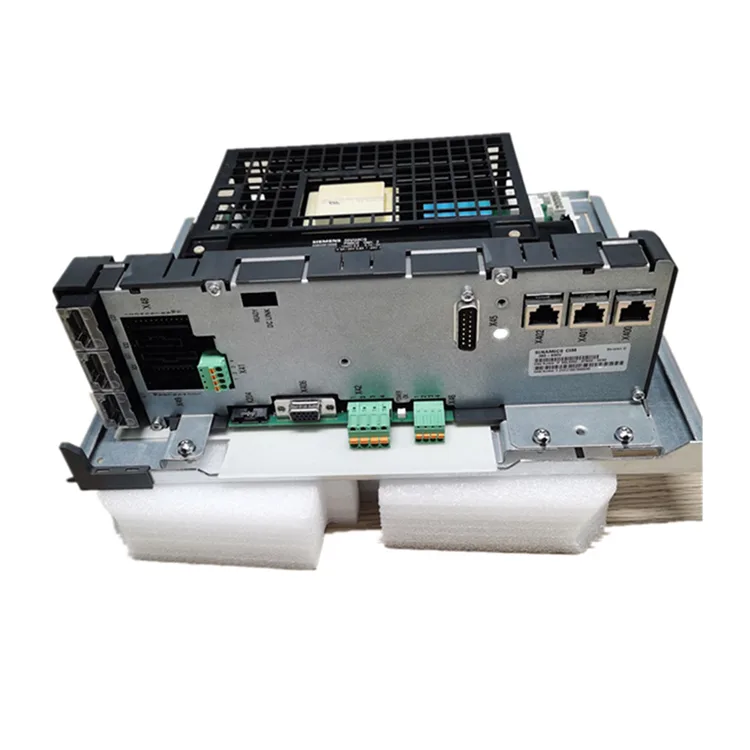

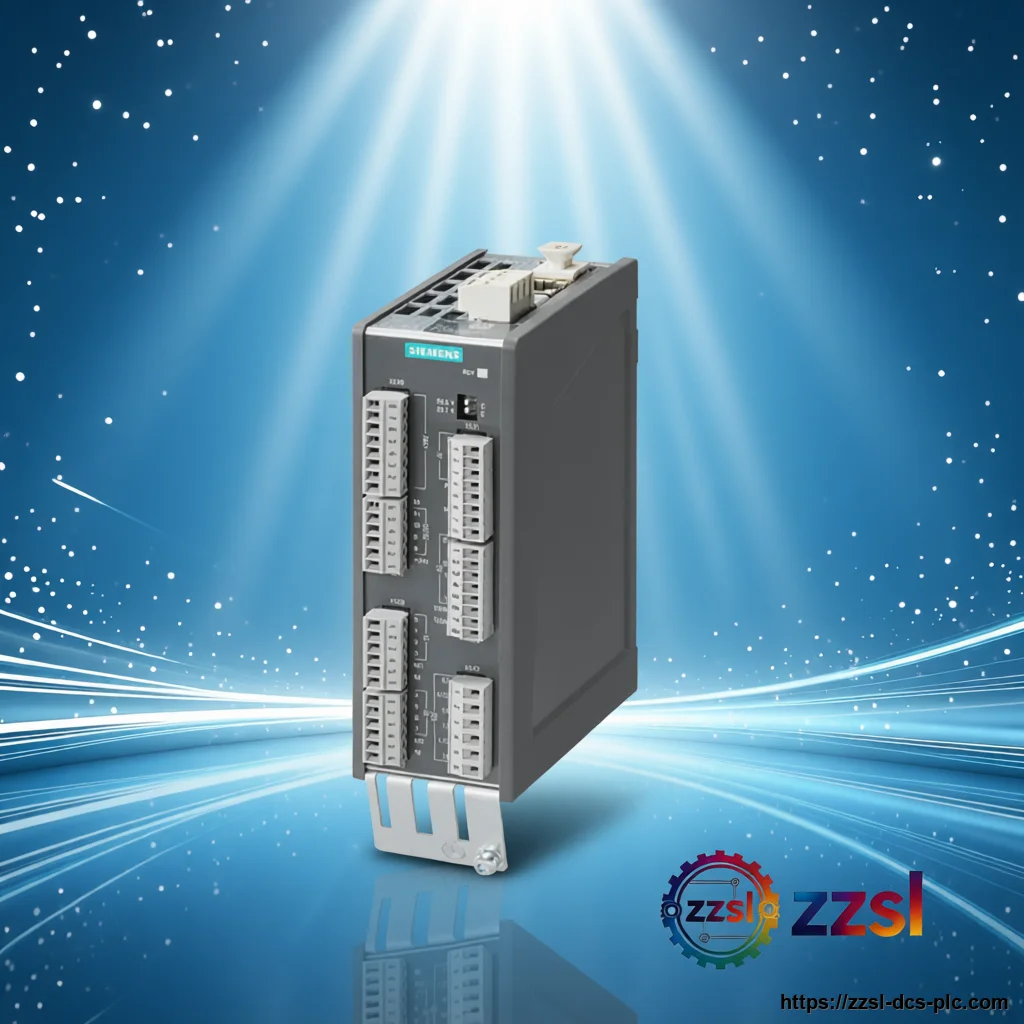

Siemens Control Interface Module 6SL3350-6TK00-0EA0
Siemens
Siemens Control Interface Module 6SL3350-6TK00-0EA0
Home > Siemens > SINAMICS S120 > 6SL3350-6TK00-0EA0 Need Siemens 6SL3350-6TK00-0EA0? Control Interface Module for Siemens SINAMICS S120 air-cooled dri…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3350-6TK00-0EA0 |
| Official Product Name | SINAMICS S120 Control Interface Module (CIM), air-cooled, spare part |
| Applicable System | Siemens SINAMICS S120 air-cooled drive systems |
| Product Type | Control Interface Module (CIM) / drive spare part |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock (active PM300 platform) |
| Compatible platform | SINAMICS S120 air-cooled drive systems (PM300) |
| Communication interface | DRIVE-CLiQ drive topology bus |
| Electronics supply voltage | 24 V DC nominal (range 20.4 ... 28.8 V DC) |
| Typical current consumption | Approx. 100 mA at 24 V DC, without external I/O loads |
| Process data width | 128 bytes input / 128 bytes output |
| Degree of protection | IP20 |
| Operating temperature | 0 ... +50 degC without derating |
| Net weight | Approx. 4.5 kg |
| Country of origin | Germany |
| Product type | Control Interface Module (CIM), spare part |
Product Description
It links the Control Unit (such as the CU320-2 or CU310-2 PN) to the power modules and carries DRIVE-CLiQ communication, process data and status diagnostics. Because it sits directly in the drive control path, a healthy CIM is essential for stable multi-axis motion control. This unit is built on the active PM300 platform and manufactured in Germany. It is typically fitted to restore heavy drives used on ship unloaders, gantry-travel systems, cranes and conveyors after a CIM failure. The Siemens 6SL3350-6TK00-0EA0 is a genuine SINAMICS S120 Control Interface Module (CIM) supplied as a spare part for air-cooled drive systems.
Basic Product Information
- Connects the Control Unit (e.g. CU320-2 / CU310-2 PN) to the power modules over the DRIVE-CLiQ bus
- Handles process-data exchange at 128 bytes input / 128 bytes output per DRIVE-CLiQ link
- 24 V DC electronics supply with wide 20.4 ... 28.8 V DC tolerance and built-in diagnostics
- Corrugated reinforced aluminium housing, IP20 rating, made in Germany, approx. 4.5 kg
- Genuine Siemens SINAMICS S120 Control Interface Module supplied as a spare part for air-cooled drives
Technical Specifications
Version & Model Difference
The 6SL3350-6TK00-0EA0 is the air-cooled SINAMICS S120 Control Interface Module spare part on the PM300 platform. Different suffixes in the 6SL3350 ordering family denote water-cooled or chassis variants, so always confirm the exact suffix against the original module before ordering. Fitting the wrong CIM variant will prevent the drive from initialising.
Application Scenarios
- Ship unloader and gantry-travel drive restoration
- Crane, hoist and heavy conveyor drive cabinets
- CNC, printing and packaging multi-axis machines
- Steel, cement and rolling-mill drive systems
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What does the 6SL3350-6TK00-0EA0 do?
It is the Control Interface Module for air-cooled SINAMICS S120 drives. It links the Control Unit to the power modules over DRIVE-CLiQ and carries process data and diagnostics.
Is this an original Siemens part?
Yes, it is a genuine Siemens SINAMICS spare part made in Germany on the active PM300 platform.
Which drives is it compatible with?
It is intended for SINAMICS S120 air-cooled drive systems using CU320-2 or CU310-2 PN control units. Confirm the original module suffix before ordering.
What supply does it need?
A 24 V DC electronics supply, typically drawing about 100 mA with no external I/O loads.
