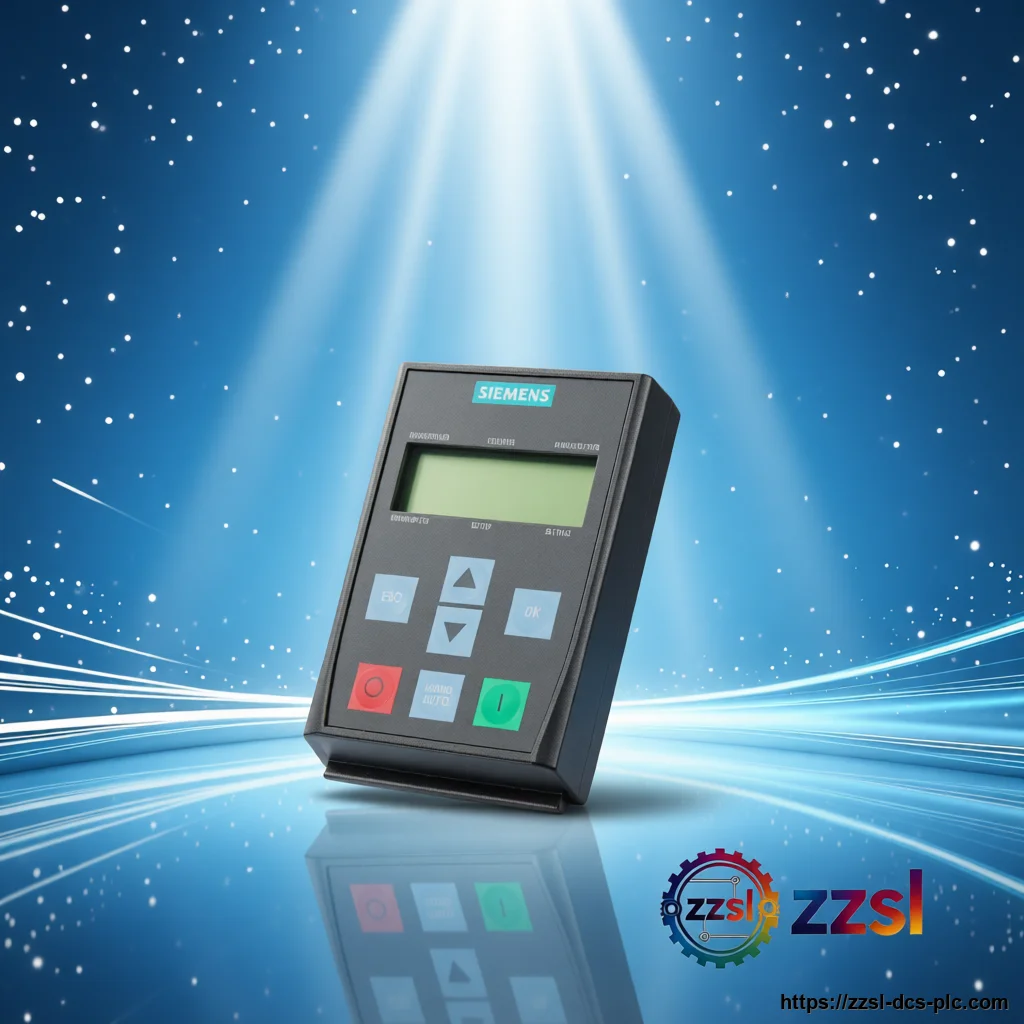

Siemens Operator Panel 6SL3255-0AA00-4CA1
Home > Products > Siemens > SINAMICS Operator Panels Need Siemens 6SL3255-0AA00-4CA1? Operator Panel for SINAMICS G120, G120C, G120D, G120P. Supplied …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3255-0AA00-4CA1 |
| Official Product Name | SINAMICS BOP-2 Basic Operator Panel |
| Applicable System | SINAMICS G120, G120C, G120D, G120P |
| Product Type | Operator Panel / HMI |
| Equivalent Standard | IEC 61131-2, EN 60721-3-3 |
| Product Status | In Stock |
| Number of Keys | 9 membrane keys (including navigation, start/stop, jog) |
| Interface | RJ45 connector for connection to control unit (via cable) |
| Supply Voltage | Via control unit (24 V DC, internally powered) |
| Power Consumption | Typically 0.1 A at 24 V DC |
| Degree of Protection | IP20 (front panel) |
| Operating Temperature | 0 °C to +50 °C (storage -25 °C to +70 °C) |
| Dimensions (W x H x D) | Approx. 75 mm x 115 mm x 30 mm (without cable) |
| Weight | Approx. 0.2 kg |
| Languages Supported | German, English, French, Italian, Spanish, Portuguese, Chinese, etc. |
| Copy Function | Yes, supports copying parameter sets between drives |
| Certifications | CE, UL, cUL, EAC, RCM |
| Display | Multi-line LCD with backlight, 5-digit 7-segment plus status icons |
Product Description
This operator panel provides a simple and intuitive interface for commissioning, diagnostics, and parameterization of the drive. It features a multi-line LCD display with backlight, supporting multiple languages, and allows for direct parameter access and control commands. The BOP-2 is essential for applications where a quick and easy setup is required without the need for a PC or advanced programming tools. The BOP-2 panel is equipped with a membrane keyboard with tactile feedback, including keys for navigation, start/stop, and jog functions. It supports both local and remote control modes, making it versatile for various industrial environments. The panel is designed to be mounted directly on the drive's control unit or can be used as a handheld device with an optional connection cable. Its robust construction ensures reliable operation in harsh industrial conditions, with an IP20 degree of protection for the front panel. This genuine Siemens spare part ensures full compatibility and performance with SINAMICS drives. It is a new original product, packaged and warranted by Siemens. The BOP-2 is widely used in industries such as automotive, food and beverage, water treatment, and material handling, where precise motor control and easy commissioning are critical. With its user-friendly interface and comprehensive functionality, the BOP-2 is an indispensable tool for drive maintenance and operation. The Siemens 6SL3255-0AA00-4CA1 is a SINAMICS BOP-2 (Basic Operator Panel 2) designed for use with SINAMICS G120, G120C, G120D, and G120P frequency converters.
Basic Product Information
- Supports multiple languages (German, English, French, Italian, Spanish, Portuguese, Chinese, etc.)
- Direct parameter access and editing for quick commissioning
- Integrated copy function to transfer parameters between drives
- IP20 degree of protection for front panel
- Suitable for use with SINAMICS G120, G120C, G120D, and G120P converters
- Multi-line LCD display with backlight for clear parameter viewing
Technical Specifications
Version & Model Difference
The 6SL3255-0AA00-4CA1 is the standard BOP-2 panel. There are no major version differences for this model number; however, Siemens offers an optional BOP-2 with a longer cable (e.g., 6SL3255-0AA00-4CA2) for handheld use. The basic functionality remains the same. The BOP-2 replaces the older BOP (Basic Operator Panel) for SINAMICS G120, offering a more advanced display and additional languages.
Application Scenarios
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the difference between BOP-2 and IOP-2?
BOP-2 (Basic Operator Panel) is a simple, cost-effective panel for basic commissioning and diagnostics. IOP-2 (Intelligent Operator Panel) offers a graphical display, wizard-based commissioning, and additional features like data logging and backup. BOP-2 is sufficient for most standard applications.
Can I use the BOP-2 to copy parameters from one drive to another?
Yes, the BOP-2 has a copy function that allows you to upload parameters from a drive to the panel and then download them to another compatible drive. This is useful for replicating settings across multiple drives.
Is the BOP-2 suitable for outdoor installation?
The BOP-2 has an IP20 rating, which means it is not protected against water or dust ingress. It should be installed inside a control cabinet or an enclosure that provides adequate protection. For outdoor use, a higher IP-rated enclosure is required.
Does the BOP-2 require a separate power supply?
No, the BOP-2 is powered directly from the drive's control unit via the RJ45 connection. No external power supply is needed. Simply plug it into the control unit's operator panel interface.
Need 6SL3255-0AA00-4CA1?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for 6SL3255-0AA00-4CA1. Our team replies within 30 minutes (working hours).
