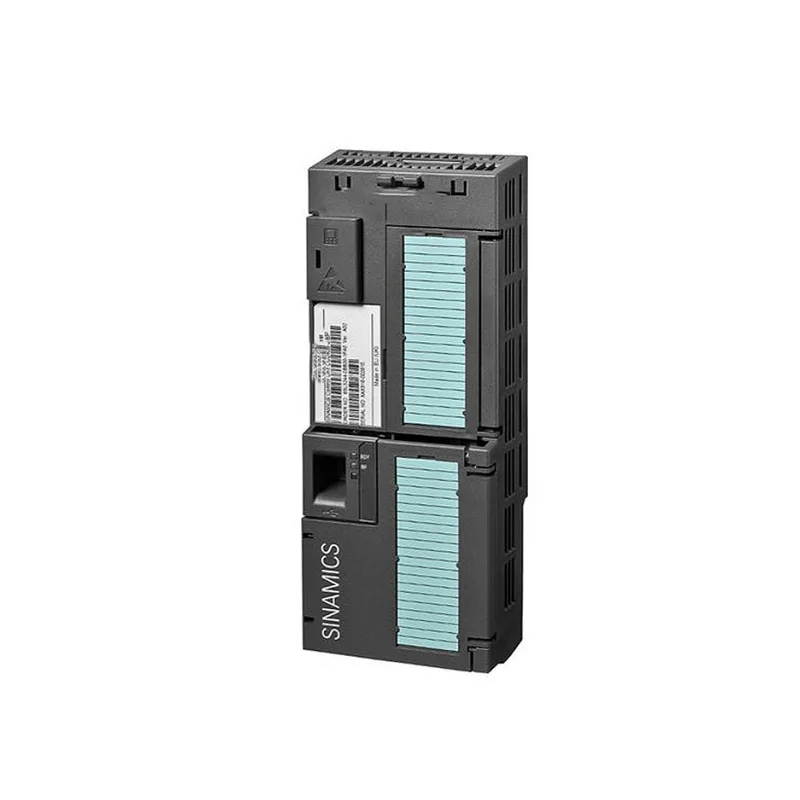

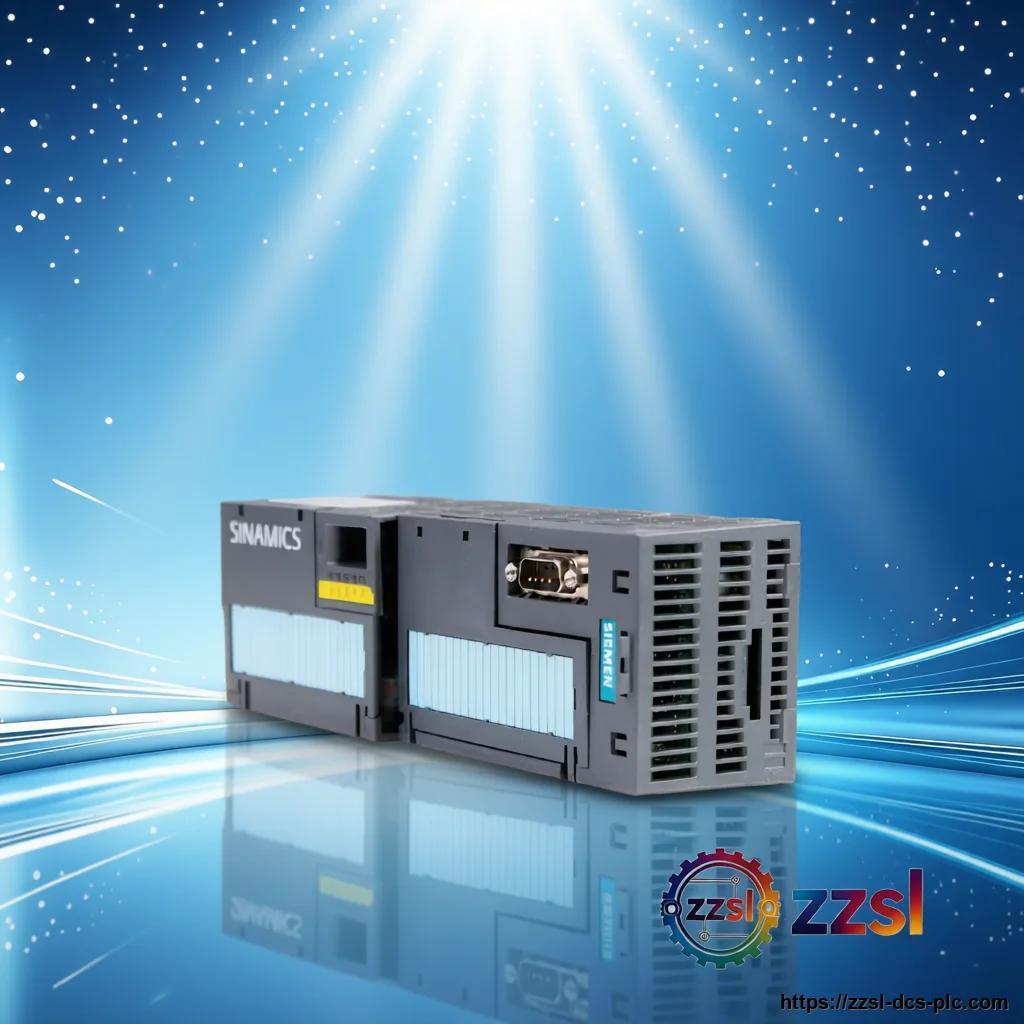

SIEMENS Drive Control Unit 6SL3246-0BA22-1PA0
6SL3246-0BA22-1PA0
Siemens
SIEMENS Drive Control Unit 6SL3246-0BA22-1PA0
Home > Products > Siemens > Drive Control Unit SIEMENS 6SL3246-0BA22-1PA0 Drive Control Unit. For SINAMICS G120 modular drive system. Supplied with fu…
Contact us for current availability and best price of 6SL3246-0BA22-1PA0.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3246-0BA22-1PA0 |
| Official Product Name | SINAMICS G120 CU250S-2 DP Control Unit |
| Applicable System | SINAMICS G120 modular drive system |
| Product Type | Drive Control Unit |
| Equivalent Standard | SINAMICS G120 CU250S-2 control unit |
| Product Status | Active (per Siemens SiePortal) |
| Fieldbus | PROFIBUS integrated |
| Safety | STO, SBC, SS1 (more via license) |
| Supply | 24 V DC |
| Protection | IP20 |
| Dimensions | 93 x 240 x 68 mm |
| Weight | 0.61 kg |
| Control unit type | CU250S-2 DP |
Product Description
It forms the control half of a modular G120 drive together with a compatible power module. The Siemens 6SL3246-0BA22-1PA0 is a SINAMICS G120 CU250S-2 DP control unit with integrated PROFIBUS support, vector control, and EPOS easy positioning.
Basic Product Information
- Vector control and EPOS easy positioning (via license)
- Safety Integrated: STO, SBC, SS1; extended safety via license
- Configurable I/O and encoder support (D-CLIQ, HTL/TTL/SSI, resolver)
- IP20, USB and SD/MMC interfaces
- CU250S-2 DP control unit with integrated PROFIBUS
Technical Specifications
Version & Model Difference
- Variant and suffix data for 6SL3246-0BA22-1PA0 is not published in public manufacturer documentation. Configurations are matched from the complete order code at quotation stage.
Application Scenarios
- Conveyor and transport systems
- Positioning and safety-critical drive tasks
- Siemens 6SL3210-1PE27-5UL0 - SINAMICS G120 PM240-2 Power Module
- Siemens 6SL3055-0AA00-5BA3 - SINAMICS S120 SMC20 Encoder Sensor Module
- Siemens 1FL6062-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6092-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6034-2AF21-1AA1 - SIMOTICS S-1FL6 Low-Inertia Servo Motor
- Siemens F-3A Cartridge Fuse
- Siemens 6SY7000-0AB30 Radial Fan Unit
Frequently Asked Questions
What is the Siemens 6SL3246-0BA22-1PA0?
The 6SL3246-0BA22-1PA0 is a SINAMICS G120 CU250S-2 DP Control Unit (Drive Control Unit) used in industrial automation. It is supplied as a genuine Siemens spare part; verify the exact configuration with the manufacturer datasheet or our team.
What are the main specifications of 6SL3246-0BA22-1PA0?
The verified parameters for 6SL3246-0BA22-1PA0 are: Control unit type: CU250S-2 DP; Fieldbus: PROFIBUS integrated; Safety: STO, SBC, SS1 (more via license); Supply: 24 V DC; Protection: IP20; Dimensions: 93 x 240 x 68 mm; Weight: 0.61 kg.
Is 6SL3246-0BA22-1PA0 compatible with my system?
Compatibility depends on your controller, voltage, and mounting. See the Compatible Products and Application Scenarios sections, and confirm with our engineers for your exact setup.
What about warranty and availability of 6SL3246-0BA22-1PA0?
Genuine Siemens product with standard manufacturer warranty where applicable. Lead time and MOQ vary; request a quote for current stock, price, and delivery.
