6SL3244-0BB12-1BA1

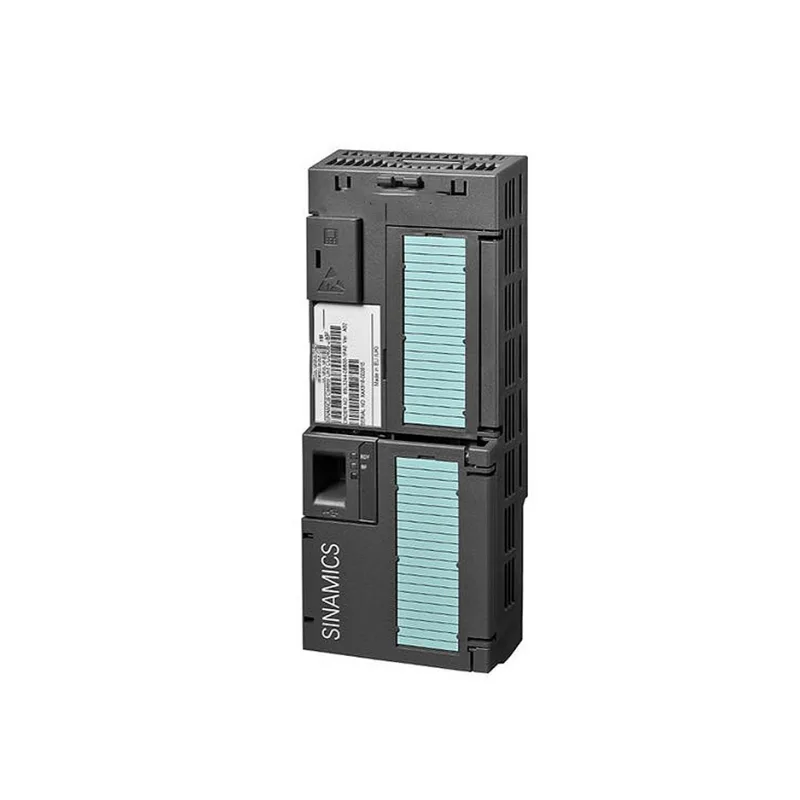

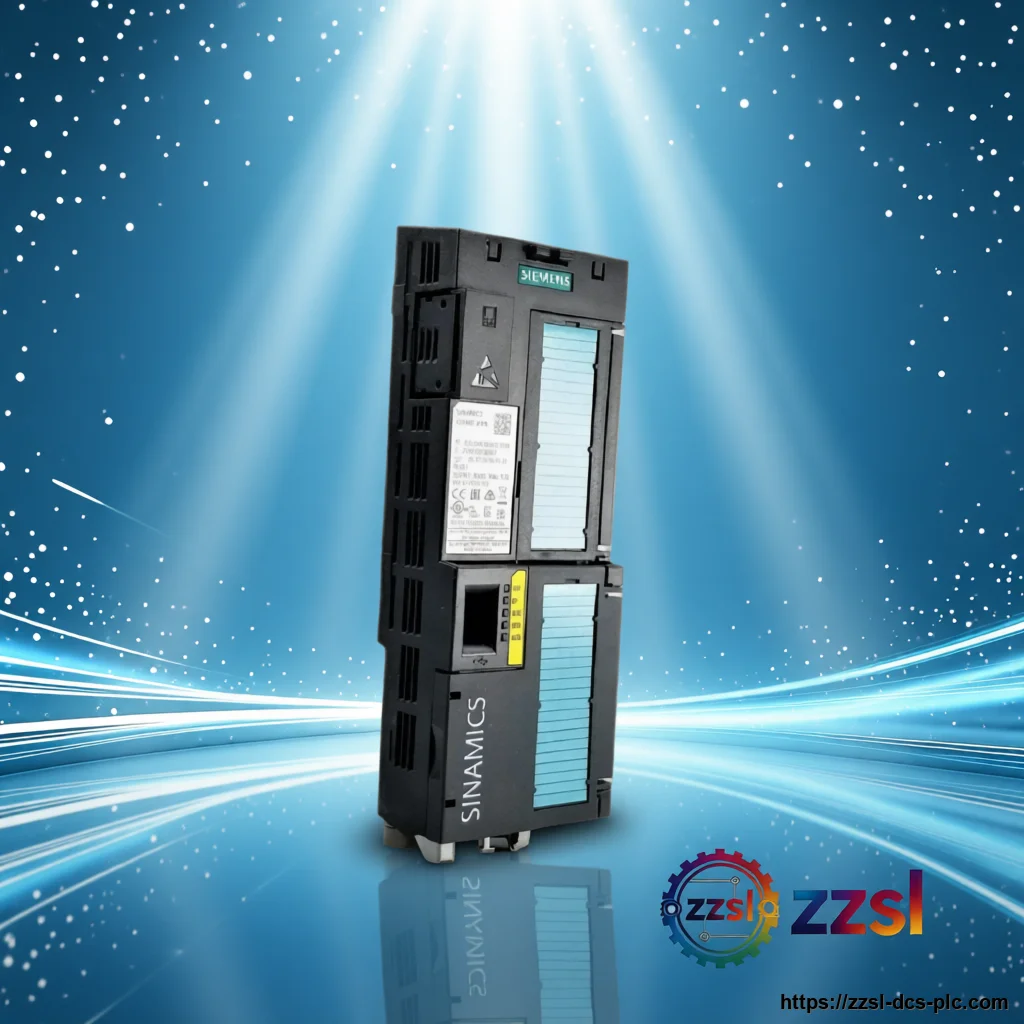

Siemens Drive Control Unit 6SL3244-0BB12-1BA1
Siemens
Siemens Drive Control Unit 6SL3244-0BB12-1BA1
Home > Siemens > SINAMICS G120 > 6SL3244-0BB12-1BA1 Need Siemens 6SL3244-0BB12-1BA1? Drive Control Unit for SINAMICS G120 with PM240-2 Power Module. S…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3244-0BB12-1BA1 |
| Official Product Name | SINAMICS G120 Control Unit CU240B-2 |
| Applicable System | SINAMICS G120 with PM240-2 Power Module |
| Product Type | Drive Control Unit |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Communication | RS485, USS / Modbus RTU protocols |
| Digital Inputs | 4 DI |
| Digital Outputs | 1 DO |
| Analog Inputs | 1 AI |
| Analog Outputs | 1 AO |
| Motor Protection | PTC / KTY / Thermoclick interface |
| Local Interfaces | USB and SD/MMC card slot |
| Supply Voltage | 24 V DC (control-unit supply) |
| Degree of Protection | IP20 |
| Ambient Temperature | 0 °C to +50 °C (without power module) |
| Dimensions (W×H×D) | 73 × 199 × 46 mm |
| Weight | 0.49 kg |
| Power Range (with PM) | 0.37 kW to 250 kW |
| Control Unit Type | CU240B-2 (B-type) |
Product Description
It manages motor control, I/O and communication for motors from 0.37 kW to 250 kW using V/f and sensorless vector control. The unit provides an RS485 interface with USS and Modbus RTU, plus USB and SD/MMC slots, making it a compact, low-cost control core for standard drive tasks. The Siemens 6SL3244-0BB12-1BA1 is the CU240B-2 control unit for the modular SINAMICS G120 drive system, pairing with a PM240-2 power module to form a complete frequency converter.
Basic Product Information
- RS485 with USS and Modbus RTU communication
- Integrated PTC/KTY/Thermoclick motor-protection interface
- USB and SD/MMC slots for commissioning and cloning
- V/f and sensorless vector (FCC) closed-loop control
- CU240B-2 control unit for modular SINAMICS G120 drives
Technical Specifications
Version & Model Difference
The code 0BB12 identifies the CU240B-2 (Basic) control unit; the CU240E-2 (code 0BE2x) adds more I/O and Safety Integrated STO. This 6SL3244-0BB12-1BA1 is not the E-type and does not include STO by default. It replaces the earlier 6SL3244-0BB12-1BA0 and requires a PM240-2 power module to operate.
Application Scenarios
- Conveyor and material-transport speed control via USS/Modbus
- Pump and fan variable-speed drives for energy savings
- Simple machine-axis control using V/f or sensorless vector
- Retrofit of standard motors in discrete and process plants
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Does the 6SL3244-0BB12-1BA1 include Safety Integrated STO?
No. This is the CU240B-2 (Basic) unit; STO is part of the CU240E-2 variant. Safety functions are not included by default on this B-type unit.
Which power module does it need?
It must be paired with a SINAMICS PM240-2 power module; the CU alone cannot drive a motor.
What communication protocols are supported?
The built-in RS485 interface supports USS and Modbus RTU; fieldbus options are added via separate modules.
What control methods does it offer?
It supports V/f (linear, square-law, FCC) and sensorless vector control for standard asynchronous motors.
