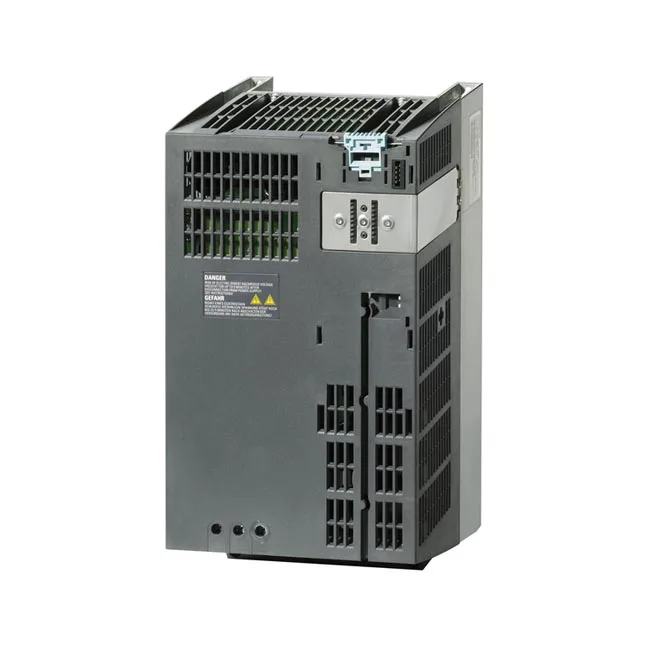

Siemens Power Module 6SL3224-0BE31-1AA0
6SL3224-0BE31-1AA0

Siemens
Siemens Power Module 6SL3224-0BE31-1AA0
Siemens 6SL3224-0BE31-1AA0 Power Module. For SINAMICS G120 modular drive system. Supplied with full traceability and documentation. Request a quote today. Pric…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3224-0BE31-1AA0 |
| Official Product Name | Inverter Power Module G120 Series (PM240) |
| Applicable System | SINAMICS G120 modular drive system |
| Product Type | Power Module (PM240) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Frame Size | FSC |
| Rated Power (High Overload) | 11 kW |
| Rated Power (Low Overload) | 15 kW |
| Input Voltage | 3 AC 380-480 V (+10/-10%) |
| Line Frequency | 47-63 Hz |
| Rated Output Current (High Overload) | 26 A |
| Rated Output Current (Low Overload) | 32 A |
| Max. Output Current | 52 A |
| Max. Output Frequency | 550 Hz |
| Integrated Filter | Class A EMC filter |
| Braking Chopper | Integrated |
| Degree of Protection | IP20 |
| Dimensions (H x W x D) | 334 x 189 x 185 mm |
| Weight | approx. 7 kg |
| Ambient Temperature | -10 to +50 C (high overload), -10 to +40 C (low overload) |
| Control Unit | Not included - required for operation |
| Product Family | SINAMICS G120 / PM240 |
Product Description
It combines an integrated Class A EMC line filter with a built-in braking chopper, simplifying cabinet wiring and EMC compliance. The FSC module is supplied without a Control Unit or operator panel, so it must be paired with a compatible G120 Control Unit to operate a motor. It is widely used to keep existing SINAMICS G120 installations running and to extend proven drive systems. The 6SL3224-0BE31-1AA0 is a SINAMICS G120 PM240 power module rated 11 kW for high-overload duty and 15 kW for low-overload duty from a 3-phase 380-480 V AC supply.
Basic Product Information
- Overload capability of 200% for 3 s and 150% for 57 s for demanding load cycles
- Integrated Class A EMC line filter for immediate cabinet installation
- Built-in braking chopper for dynamic braking of high-inertia loads
- 3-phase 380-480 V AC input, 47-63 Hz, with up to 52 A maximum output current
- FSC frame, 334 x 189 x 185 mm, IP20, designed for standard control cabinets
- 11 kW high-overload rating with 15 kW low-overload rating
Technical Specifications
Version & Model Difference
This module belongs to the legacy PM240 generation (order code 6SL3224) and is classified by Siemens as a spare part. Its MICROMASTER-era predecessor was 6SE6420-2AD31-1CA1, and the modern PM240-2 range is the successor for new projects. Legacy PM240 and PM240-2 modules differ in mounting and terminal arrangement, so they cannot simply be swapped in place.
Application Scenarios
- Pumps, fans and compressors in industrial processing
- Conveyors and material handling systems
- Machine tools and general manufacturing machinery
- Spare part replacement in installed SINAMICS G120 drive systems
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the power rating of the 6SL3224-0BE31-1AA0?
11 kW in high-overload operation (200% for 3 s) and 15 kW in low-overload operation on a 3-phase 380-480 V supply.
Can this module run a motor on its own?
No. It is a power module only and requires a compatible SINAMICS G120 Control Unit and operator panel.
Which filter is integrated?
An integrated Class A EMC line filter is included in the 0BE31-1AA0 variant.
What is the maximum output current?
The module supports up to 52 A maximum output current with a rated output current of 26 A in high overload.
