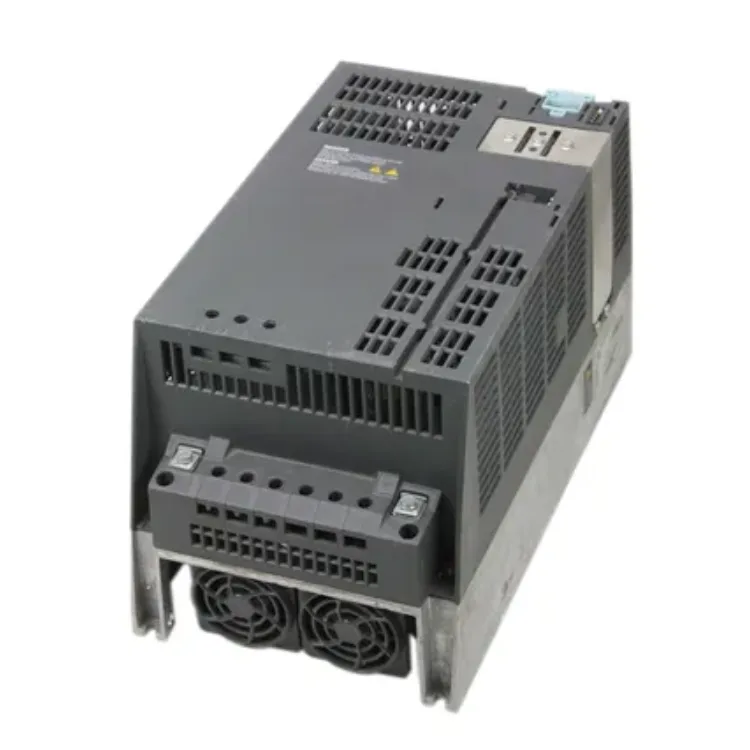

Siemens Power Module 6SL3224-0BE27-5AA0
6SL3224-0BE27-5AA0

Siemens
Siemens Power Module 6SL3224-0BE27-5AA0
Siemens 6SL3224-0BE27-5AA0 Power Module. For SINAMICS G120 modular drive system. Supplied with full traceability and documentation. Request a quote today. Pric…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3224-0BE27-5AA0 |
| Official Product Name | Inverter Power Module G120 Series (PM240) |
| Applicable System | SINAMICS G120 modular drive system |
| Product Type | Power Module (PM240) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Frame Size | FSC |
| Rated Power (High Overload) | 7.5 kW |
| Rated Power (Low Overload) | 11 kW |
| Input Voltage | 3 AC 380-480 V (+10/-10%) |
| Line Frequency | 47-63 Hz |
| Rated Output Current (High Overload) | 19 A |
| Rated Output Current (Low Overload) | 25 A |
| Max. Output Frequency | 550 Hz |
| Integrated Filter | Class A EMC filter |
| Braking Chopper | Integrated |
| Degree of Protection | IP20 |
| Dimensions (H x W x D) | 334 x 189 x 185 mm |
| Weight | approx. 7 kg |
| Ambient Temperature | -10 to +50 C (high overload), -10 to +40 C (low overload) |
| Control Unit | Not included - required for operation |
| Product Family | SINAMICS G120 / PM240 |
Product Description
It integrates a Class A EMC line filter and a braking chopper, reducing external components inside the control cabinet. Delivered in frame size FSC, it is a power module only and needs a G120 Control Unit plus an operator panel to run a motor. It is commonly sourced to maintain or expand existing SINAMICS G120 drive installations. The 6SL3224-0BE27-5AA0 is a SINAMICS G120 PM240 power module rated 7.5 kW for high-overload duty and 11 kW for low-overload duty on a 3-phase 380-480 V AC supply.
Basic Product Information
- Overload capability of 200% for 3 s and 150% for 57 s for high-torque starts
- Integrated Class A EMC line filter for compliant cabinet installation
- Built-in braking chopper for controlled deceleration without extra chopper hardware
- 3-phase 380-480 V AC input, 47-63 Hz, for global supply networks
- FSC frame, 334 x 189 x 185 mm, IP20, fan-cooled
- 7.5 kW high-overload rating with 11 kW low-overload rating on the same module
Technical Specifications
Version & Model Difference
This article belongs to the legacy PM240 generation (order code 6SL3224) and is supplied as a spare part. Its predecessor in the MICROMASTER family was 6SE6420-2AD27-5CA1. The current equivalent for new designs is the PM240-2 family. Legacy PM240 and PM240-2 modules are not mechanically or terminal compatible, so replacement must be planned accordingly.
Application Scenarios
- Pumps and fan drives in process and building technology
- Conveyor systems and material handling lines
- Machine tools and plastics processing machinery
- Maintaining and expanding existing SINAMICS G120 drive systems
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What power does the 6SL3224-0BE27-5AA0 provide?
It delivers 7.5 kW in high-overload mode and 11 kW in low-overload mode from a 3-phase 380-480 V AC supply.
Is a Control Unit included?
No. This is a power module only; a compatible SINAMICS G120 Control Unit and an operator panel are required to operate it.
Which frame size does it use?
FSC, with dimensions of 334 x 189 x 185 mm and IP20 protection for cabinet mounting.
Does it have an integrated EMC filter?
Yes. The 0BE27-5AA0 variant includes an integrated Class A line filter and a braking chopper.
