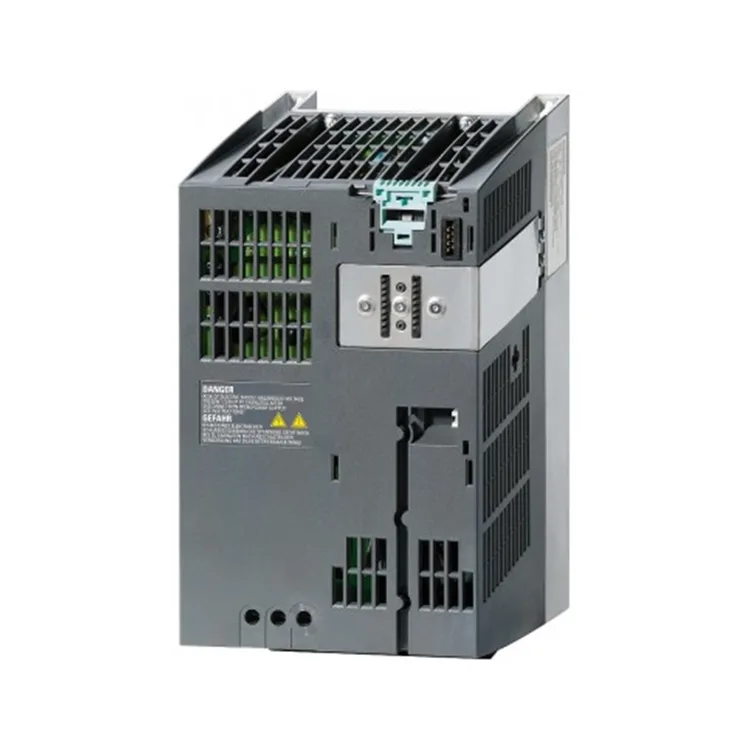

Siemens Power Module 6SL3224-0BE24-0AA0
6SL3224-0BE24-0AA0

Siemens
Siemens Power Module 6SL3224-0BE24-0AA0
Siemens 6SL3224-0BE24-0AA0 Power Module. For SINAMICS G120 modular drive system. Supplied with full traceability and documentation. Request a quote today. Pric…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3224-0BE24-0AA0 |
| Official Product Name | Inverter Power Module G120 Series (PM240) |
| Applicable System | SINAMICS G120 modular drive system |
| Product Type | Power Module (PM240) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Frame Size | FSB |
| Rated Power (High Overload) | 4.0 kW |
| Rated Power (Low Overload) | 5.5 kW |
| Input Voltage | 3 AC 380-480 V (+10/-10%) |
| Line Frequency | 47-63 Hz |
| Rated Output Current (High Overload) | 10.2 A |
| Max. Output Frequency | 550 Hz |
| Integrated Filter | Class A EMC filter |
| Braking Chopper | Integrated |
| Degree of Protection | IP20 |
| Dimensions (H x W x D) | 270 x 153 x 165 mm |
| Weight | approx. 4.1 kg |
| Ambient Temperature | -10 to +50 C (high overload), -10 to +40 C (low overload) |
| Control Unit | Not included - required for operation |
| Product Family | SINAMICS G120 / PM240 |
Product Description
It ships with an integrated Class A line filter and a built-in braking chopper, so dynamic braking does not require a separate chopper module. Because it is a power module only, it must be combined with a G120 Control Unit such as CU240E-2 or CU250S-2 to form a working inverter. Supplied in frame size FSB with IP20 protection, it is intended for control cabinet installation and for maintaining installed SINAMICS G120 drives. Part of the SINAMICS G120 modular drive system, the 6SL3224-0BE24-0AA0 is a PM240 power module rated 4.0 kW for high-overload duty on a 3-phase 380-480 V supply.
Basic Product Information
- Integrated Class A EMC line filter for cabinet installation without extra filter components
- Built-in braking chopper for controlled deceleration of high-inertia loads
- 3-phase 380-480 V AC input, 47-63 Hz, for worldwide supply networks
- Compact FSB housing, 270 x 153 x 165 mm, IP20, for standard control cabinets
- Drive-CLiQ interface for pairing with SINAMICS G120 Control Units
- 4.0 kW high-overload rating with 200% for 3 s and 150% for 57 s overload capability
Technical Specifications
Version & Model Difference
This article belongs to the predecessor PM240 generation (order code 6SL3224). Its direct successor for new projects is the PM240-2 module 6SL3210-1PE14-3AL0. Legacy PM240 and PM240-2 differ in mounting and terminal layout, so they are not a drop-in mechanical replacement. Within the same power rating the 0BE24-0AA0 variant carries an integrated Class A filter, while -0UA0 has no filter and -0CA0 carries a Class B filter.
Application Scenarios
- Conveyor and material handling systems
- Pumps and fans in building technology and process plants
- Packaging machinery and general machine tools
- Retrofitting and maintaining existing SINAMICS G120 drives
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Is the 6SL3224-0BE24-0AA0 a complete inverter?
No. It is a PM240 power module only and must be combined with a compatible SINAMICS G120 Control Unit and an operator panel to operate.
What power rating does this module deliver?
4.0 kW in high-overload mode and 5.5 kW in low-overload mode on a 3-phase 380-480 V supply.
Does it include a braking chopper?
Yes. The braking chopper is integrated, so only an external braking resistor is needed for dynamic braking.
Can it replace the newer PM240-2 module?
No. The legacy PM240 and PM240-2 differ in mounting and terminals, so for new projects the successor 6SL3210-1PE14-3AL0 is recommended.
