6SL3210-1PE24-5AL0

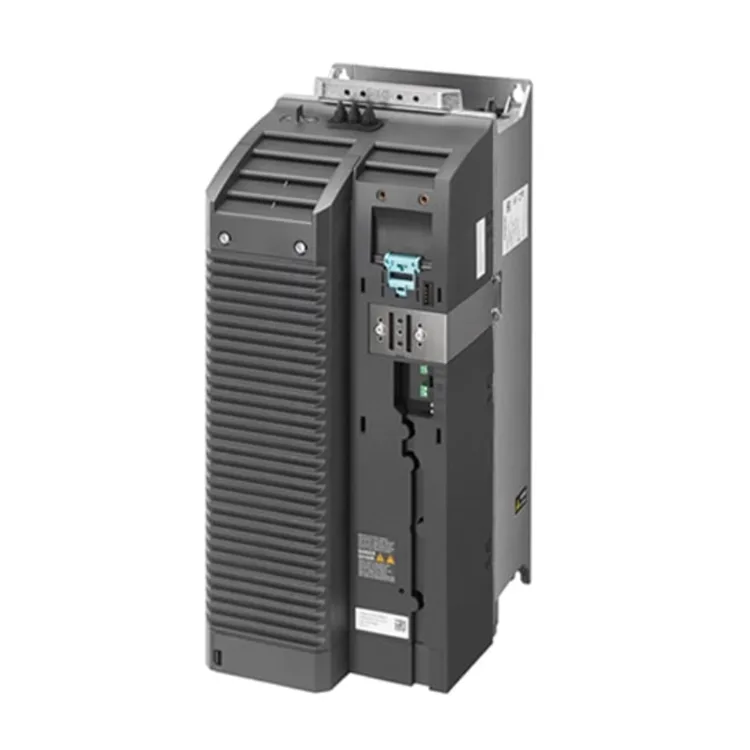

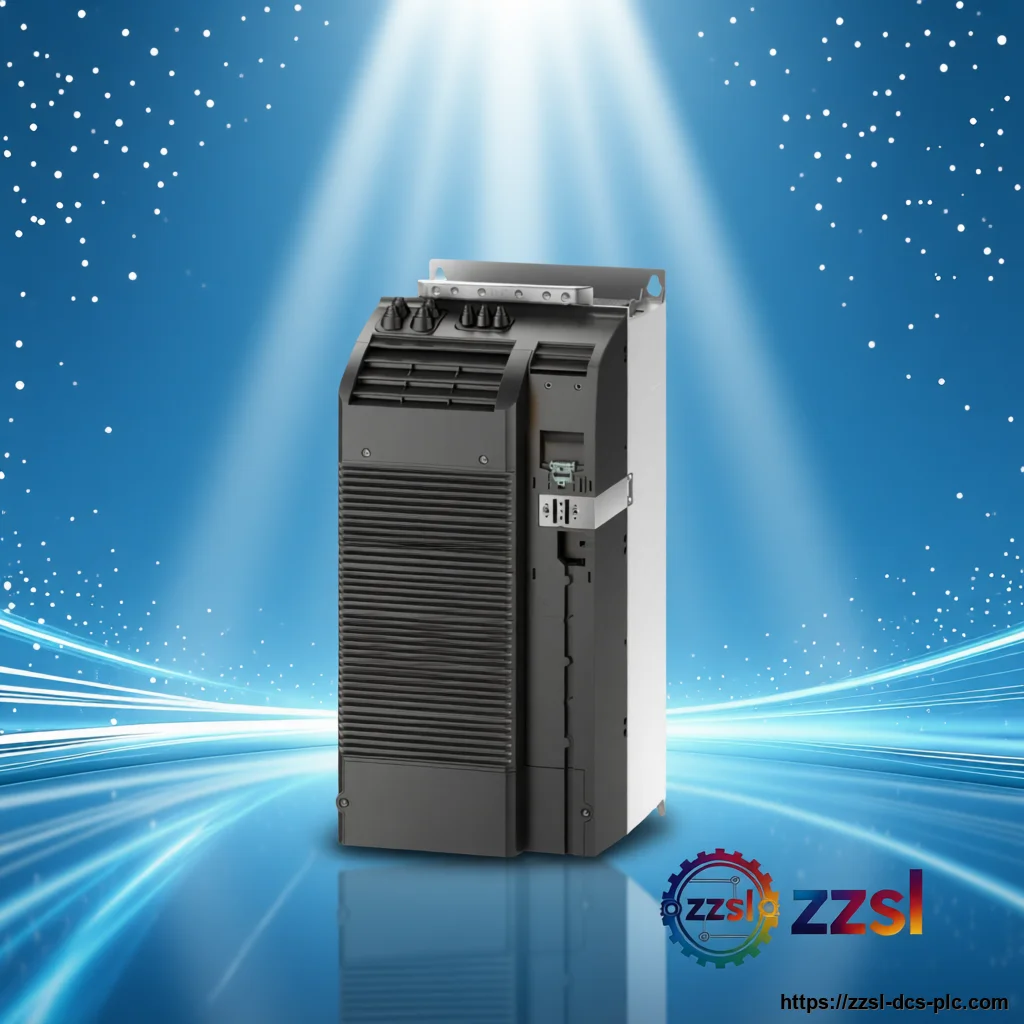

Siemens Drive power module 6SL3210-1PE24-5AL0
Siemens
Siemens Drive power module 6SL3210-1PE24-5AL0
Home > Siemens > Drives > SINAMICS G120 > 6SL3210-1PE24-5AL0 Need Siemens 6SL3210-1PE24-5AL0? Drive power module for SINAMICS G120 modular converte…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3210-1PE24-5AL0 |
| Official Product Name | SINAMICS G120 Power Module PM240-2, 22 kW (FSD) |
| Applicable System | SINAMICS G120 modular converter system (CU230-2 / CU240x-2 / CU250S-2) |
| Product Type | Drive power module (power stage) |
| Equivalent Standard | N/A (order by full Siemens article number) |
| Product Status | In Stock |
| Output Power (High Overload) | 18.5 kW (200% for 3 s, 150% for 57 s, 100% for 240 s at -20 to +50 C) |
| Input Voltage | 3 AC 380-480 V, +10 / -20% |
| Input Frequency | 47-63 Hz |
| Maximum Output Current | 76 A |
| Pulse Frequency | 4 kHz default (adjustable) |
| Frame Size | FSD |
| Dimensions (H x W x D) | 472 x 200 x 237 mm |
| Net Weight | approx. 17.5 kg |
| Degree of Protection | IP20 |
| Cooling | Internal air cooling, approx. 0.055 m3/s |
| Efficiency Class | IE2 |
| Power Loss (typical, rated) | approx. 0.68 kW |
| Integrated Line Filter | Class A |
| Braking Chopper | Integrated (external braking resistor required) |
| Control Unit Required | Yes - order separately, firmware V4.7 HF8 or later |
| Output Power (Low Overload) | 22 kW (150% for 3 s, 110% for 57 s, 100% for 240 s at -20 to +40 C) |
Product Description
It is the power stage of the modular SINAMICS G120 converter family and is supplied with an integrated Class A line filter and a built-in braking chopper. The module has no control unit or operator panel of its own; drive intelligence, fieldbus communication and safety functions come from a separately ordered SINAMICS G120 Control Unit. Typical use is standard machinery, pumps, fans and conveyors installed in control cabinets where an IP20 built-in unit is required. The 6SL3210-1PE24-5AL0 is a SINAMICS G120 PM240-2 power module in frame size FSD, rated 22 kW for low-overload duty and 18.5 kW for high-overload duty on a 3 AC 380-480 V supply.
Basic Product Information
- 3 AC 380-480 V input with +10/-20% tolerance and 47-63 Hz line frequency
- Integrated Class A line filter and built-in braking chopper for four-quadrant applications
- IP20 built-in unit designed for installation inside a control cabinet
- Combines with SINAMICS G120 Control Units to form a complete frequency converter
- Frame size FSD power module rated 22 kW low overload (LO) and 18.5 kW high overload (HO)
Technical Specifications
Version & Model Difference
The 6SL3210-1PE24-5AL0 is the FSD power module covering 22 kW low-overload / 18.5 kW high-overload duty. It differs from the smaller 1PE23-8AL0 article only in duty rating while keeping the same FSD enclosure; the required SINAMICS G120 Control Unit supplies the firmware, communication and safety functions and must be ordered separately.
Application Scenarios
- Pumps and fans up to 22 kW low-overload duty
- Conveyors, mixers and processing machines with high intermittent torque demand
- Modular control-cabinet drive panels built on the SINAMICS G120 platform
- Drive retrofits where the FSD mechanical envelope is already defined
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Does the 6SL3210-1PE24-5AL0 include a Control Unit?
No - it is supplied as a power module only, without Control Unit or operator panel. A compatible SINAMICS G120 Control Unit with firmware V4.7 HF8 or later must be ordered separately.
What are the power ratings of this module?
22 kW in low-overload (LO) duty and 18.5 kW in high-overload (HO) duty on a 3 AC 380-480 V supply.
Is a braking chopper built in?
Yes, an integrated braking chopper is included; a correctly rated external braking resistor is still required to dissipate braking energy.
What is the protection rating and frame size?
The module is IP20 in frame size FSD with dimensions 472 x 200 x 237 mm and a net weight of about 17.5 kg.
