Siemens Power Module 6SL3210-1PE23-3UL0
6SL3210-1PE23-3UL0

Siemens

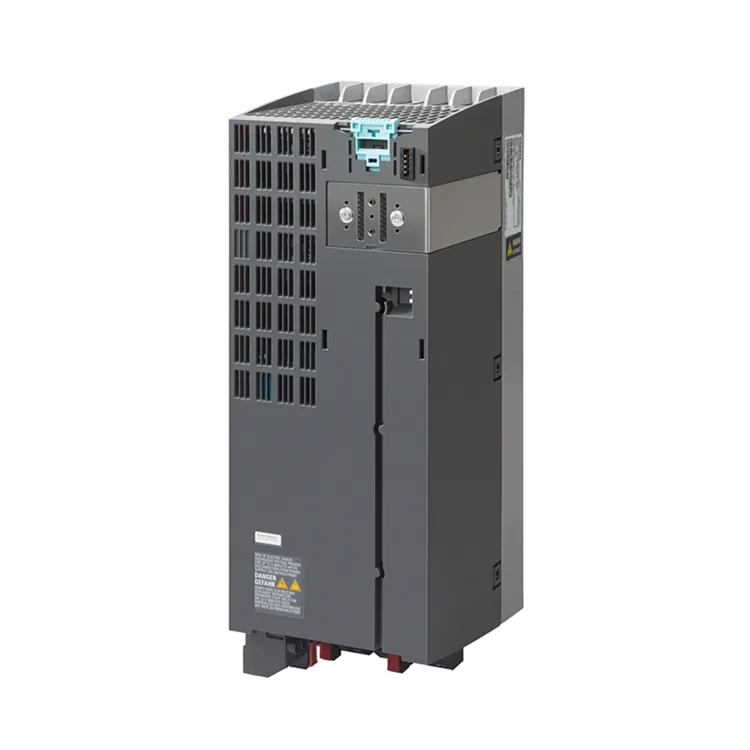

Siemens Power Module 6SL3210-1PE23-3UL0
Siemens 6SL3210-1PE23-3UL0 Power Module. For SINAMICS G120 frequency converter. Supplied with full traceability and documentation. Request a quote today. Price…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3210-1PE23-3UL0 |
| Official Product Name | SINAMICS G120 Power Module PM240-2, 7.5kW |
| Applicable System | SINAMICS G120 frequency converter |
| Product Type | Power Module (Inverter) |
| Equivalent Standard | IEC 61800-3, EN 61800-3 |
| Product Status | In Stock |
| Rated Power (Heavy Duty) | 7.5 kW (10 HP) |
| Rated Power (Light Duty) | 11 kW (15 HP) |
| Output Current (Heavy Duty) | 18 A |
| Output Current (Light Duty) | 26 A |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 140 mm x 473 mm x 200 mm |
| Weight | Approx. 6.5 kg |
| Ambient Temperature | -10°C to +50°C (without derating) |
| Integrated Brake Chopper | Yes |
| Safe Torque Off (STO) | Yes (via control unit) |
| Communication Interface | Via control unit (e.g., PROFIBUS, PROFINET, EtherNet/IP) |
| Supply Voltage | 380-480 V AC (3-phase) |
Product Description
It operates with a supply voltage of 380-480 V AC (3-phase) and delivers a rated power of 7.5 kW (10 HP) for heavy-duty (HD) and 11 kW (15 HP) for light-duty (LD) applications. This power module features an integrated brake chopper, enabling dynamic braking with external braking resistors. It is part of the PM240-2 series, known for its compact design, high overload capability, and robust construction for industrial environments. The module is designed to be used with the SINAMICS G120 Control Units (CU240B-2, CU240E-2, etc.) and supports both vector and V/f control modes. It includes a built-in DC link bus, safe torque off (STO) functionality (via control unit), and is compatible with various operator panels and communication modules. The PM240-2 series is characterized by its easy commissioning, energy-saving features, and compliance with international standards such as CE, UL, and cULus. With a degree of protection IP20, the 6SL3210-1PE23-3UL0 is suitable for cabinet installation. It offers a wide range of ambient operating temperatures (from -10°C to +50°C without derating) and includes protective features like overcurrent, overvoltage, and overtemperature protection. This power module is a reliable choice for applications requiring precise motor control, such as conveyors, pumps, fans, and compressors. The Siemens 6SL3210-1PE23-3UL0 is a SINAMICS G120 Power Module (PM240-2) designed for variable-speed drive applications.
Basic Product Information
- Integrated brake chopper for dynamic braking
- Compact PM240-2 design with IP20 protection
- High overload capability: 150% for 60s, 200% for 3s (HD)
- Safe Torque Off (STO) function via control unit
- Compatible with SINAMICS G120 Control Units (CU240B-2, CU240E-2, etc.)
- Rated power 7.5 kW (HD) / 11 kW (LD) at 380-480V 3-phase
Technical Specifications
Version & Model Difference
The 6SL3210-1PE23-3UL0 is part of the PM240-2 series, which is an enhanced version of the earlier PM240 series. Key differences include a more compact design, improved overload capability, and integrated safety functions such as STO. The PM240-2 also features a simplified wiring concept with a detachable terminal block and supports a wider range of control units. Compared to the PM240-1, the PM240-2 offers better energy efficiency and reduced audible noise.
Application Scenarios
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the difference between heavy duty (HD) and light duty (LD) ratings?
The HD rating (7.5 kW) is for applications with high overload requirements (e.g., 150% for 60 seconds), while the LD rating (11 kW) is for applications with lower overload (e.g., 110% for 60 seconds). The actual output current is 18 A for HD and 26 A for LD.
Does the 6SL3210-1PE23-3UL0 include a built-in brake chopper?
Yes, this power module has an integrated brake chopper. You only need to connect an external braking resistor to the appropriate terminals to enable dynamic braking.
Which control units are compatible with this power module?
This power module is compatible with SINAMICS G120 Control Units of the CU240B-2 and CU240E-2 series, including variants with PROFIBUS, PROFINET, and EtherNet/IP interfaces. Always check the firmware version compatibility.
What is the degree of protection and can it be used outdoors?
The degree of protection is IP20, which means it is protected against solid objects larger than 12.5 mm but not against water. It is intended for indoor cabinet installation. For outdoor use, a suitable enclosure with higher IP rating is required.
