6SL3120-1TE26-0AC0

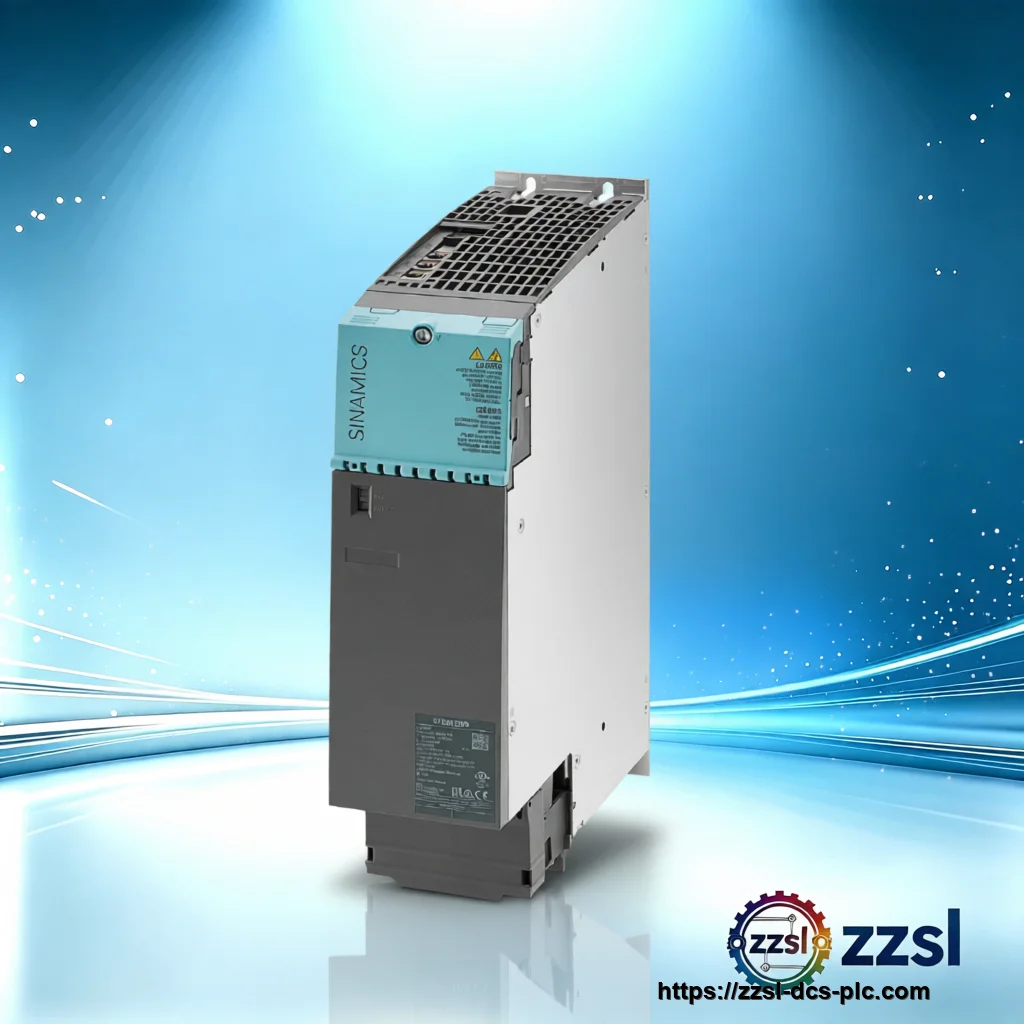

Siemens Motor Module 6SL3120-1TE26-0AC0
Siemens
Siemens Motor Module 6SL3120-1TE26-0AC0
Home > Siemens > SINAMICS S120 > 6SL3120-1TE26-0AC0 Need Siemens 6SL3120-1TE26-0AC0? Motor Module for SINAMICS S120 drive system. Supplied with full t…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3120-1TE26-0AC0 |
| Official Product Name | SINAMICS S120 Single Motor Module 60 A, Booksize C-type |
| Applicable System | SINAMICS S120 drive system (Booksize) |
| Product Type | Motor Module (drive axis / inverter module) |
| Equivalent Standard | DRIVE-CLiQ interface; Safety Integrated (STO) |
| Product Status | In Stock |
| Format | Booksize, C-type |
| Input voltage | 600 V DC (DC link, approx. 510 ... 720 V DC) |
| Output voltage | 3 AC 400 V |
| Rated output current | 60 A |
| Rated power | approx. 32 kW |
| Cooling | Internal air cooling |
| Communication | DRIVE-CLiQ (cable included) |
| Safety functions | Extended Safety Integrated (STO) |
| Degree of protection | IP20 |
| Net weight | approx. 8.6 kg |
| Minimum clearance above/below | 80 mm for airflow |
| Product type | SINAMICS S120 Single Motor Module |
Product Description
It draws from the 600 V DC link and delivers a variable-frequency 3-phase 400 V output rated at 60 A, driving one AC synchronous or induction motor axis. The module connects to the drive line-up through the DC busbar and communicates with the S120 control unit over DRIVE-CLiQ (a DRIVE-CLiQ cable is included), supporting optimised pulse sampling and the extended Safety Integrated functions such as STO. With internal air cooling and a C-type frame designed for high overload capability, it is used in multi-axis machine-tool, packaging, printing and handling applications. The Siemens 6SL3120-1TE26-0AC0 is a Single Motor Module in the SINAMICS S120 drive system, supplied in the compact Booksize C-type format.
Basic Product Information
- 600 V DC link input and 3 AC 400 V output, approx. 32 kW
- Internal air cooling with an integrated fan
- DRIVE-CLiQ communication to the S120 control unit; DRIVE-CLiQ cable included
- Supports optimised pulse sampling and extended Safety Integrated functions (STO)
- C-type frame optimised for high overload capability in continuous multi-axis operation
- Booksize C-type Single Motor Module rated 60 A continuous output current
Technical Specifications
Version & Model Difference
The 6SL3120-1TE26-0AC0 is a 600 V DC single motor module; single motor modules for a 380 to 480 V AC feed use different order numbers, and double motor modules (6SL3120-2...) drive two axes from one module. The -1TE26-0AC0 suffix denotes the C-type, air-cooled, 60 A booksize variant. Verify the DC-link voltage class and the control unit firmware of the S120 line-up before fitting.
Application Scenarios
- CNC machine-tool spindle and feed axes
- Packaging machinery multi-axis coordinated motion
- Printing and converting line register and tension control
- Robotics, handling and winding drives
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What are the input and output ratings of the 6SL3120-1TE26-0AC0?
It takes a 600 V DC link input and provides a 3-phase 400 V AC output rated at 60 A, roughly 32 kW.
How does the module communicate within the S120 system?
It connects to the S120 control unit over DRIVE-CLiQ, and a DRIVE-CLiQ cable is supplied with the module.
Does the module support safety functions?
Yes. It supports the extended Safety Integrated functions, including STO (Safe Torque Off).
What cooling and installation clearance does it need?
The module uses internal air cooling and requires roughly 80 mm of free space above and below for airflow.
