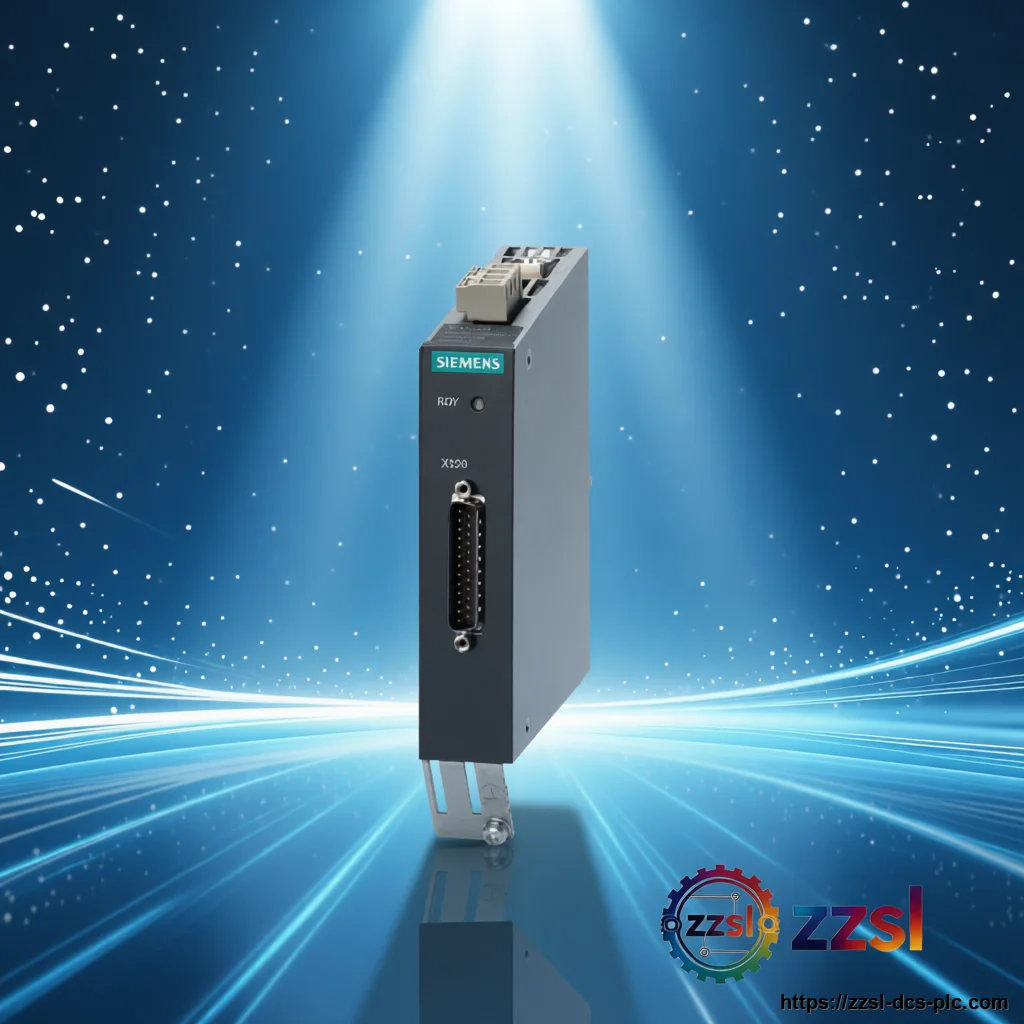

SIEMENS Encoder Sensor Module 6SL3055-0AA00-5BA3
6SL3055-0AA00-5BA3
Siemens
SIEMENS Encoder Sensor Module 6SL3055-0AA00-5BA3
Home > Products > Siemens > Encoder Sensor Module SIEMENS 6SL3055-0AA00-5BA3 Encoder Sensor Module. For SINAMICS S120 drive systems. Supplied with ful…
Contact us for current availability and best price of 6SL3055-0AA00-5BA3.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6SL3055-0AA00-5BA3 |
| Official Product Name | SINAMICS S120 SMC20 Encoder Sensor Module |
| Applicable System | SINAMICS S120 drive systems |
| Product Type | Encoder Sensor Module |
| Equivalent Standard | SINAMICS S120 SMC20 sensor module |
| Product Status | Active (per distributor data) |
| Supply | 24 V DC (approx. 0.2 A) |
| Encoder support | Sin/cos 1 Vpp, EnDat 2.1, SSI |
| Interface | DRIVE-CLiQ |
| Dimensions | 30 x 150 x 111 mm |
| Protection | IP20 / UL open type |
| Weight | approx. 0.45 kg |
| Module type | SINAMICS S120 SMC20 sensor module |
Product Description
It evaluates sin/cos 1 Vpp, EnDat 2.1, and SSI encoder feedback and transfers the data to the control unit via DRIVE-CLiQ. The Siemens 6SL3055-0AA00-5BA3 is a SINAMICS S120 SMC20 cabinet-mounted encoder sensor module.
Basic Product Information
- DRIVE-CLiQ interface to SINAMICS S120 control unit
- Slim 30 mm cabinet module for dense installation
- M4 protective-earth screw terminal; LED status
- Evaluates sin/cos 1 Vpp, EnDat 2.1, and SSI encoder feedback
Technical Specifications
Version & Model Difference
- Variant and suffix data for 6SL3055-0AA00-5BA3 is not published in public manufacturer documentation. Configurations are matched from the complete order code at quotation stage.
Application Scenarios
- Servo and high-performance drive feedback
- Precision positioning systems
- Multi-axis synchronized machines
- Siemens 6SL3246-0BA22-1PA0 - SINAMICS G120 CU250S-2 DP Control Unit
- Siemens 6SL3210-1PE27-5UL0 - SINAMICS G120 PM240-2 Power Module
- Siemens 1FL6062-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6092-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6034-2AF21-1AA1 - SIMOTICS S-1FL6 Low-Inertia Servo Motor
- Siemens F-3A Cartridge Fuse
- Siemens 6SY7000-0AB30 Radial Fan Unit
Frequently Asked Questions
What is the Siemens 6SL3055-0AA00-5BA3?
The 6SL3055-0AA00-5BA3 is a SINAMICS S120 SMC20 Encoder Sensor Module (Encoder Sensor Module) used in industrial automation. It is supplied as a genuine Siemens spare part; verify the exact configuration with the manufacturer datasheet or our team.
What are the main specifications of 6SL3055-0AA00-5BA3?
The verified parameters for 6SL3055-0AA00-5BA3 are: Module type: SINAMICS S120 SMC20 sensor module; Supply: 24 V DC (approx. 0.2 A); Encoder support: Sin/cos 1 Vpp, EnDat 2.1, SSI; Interface: DRIVE-CLiQ; Dimensions: 30 x 150 x 111 mm; Protection: IP20 / UL open type; Weight: approx. 0.45 kg.
Is 6SL3055-0AA00-5BA3 compatible with my system?
Compatibility depends on your controller, voltage, and mounting. See the Compatible Products and Application Scenarios sections, and confirm with our engineers for your exact setup.
What about warranty and availability of 6SL3055-0AA00-5BA3?
Genuine Siemens product with standard manufacturer warranty where applicable. Lead time and MOQ vary; request a quote for current stock, price, and delivery.
