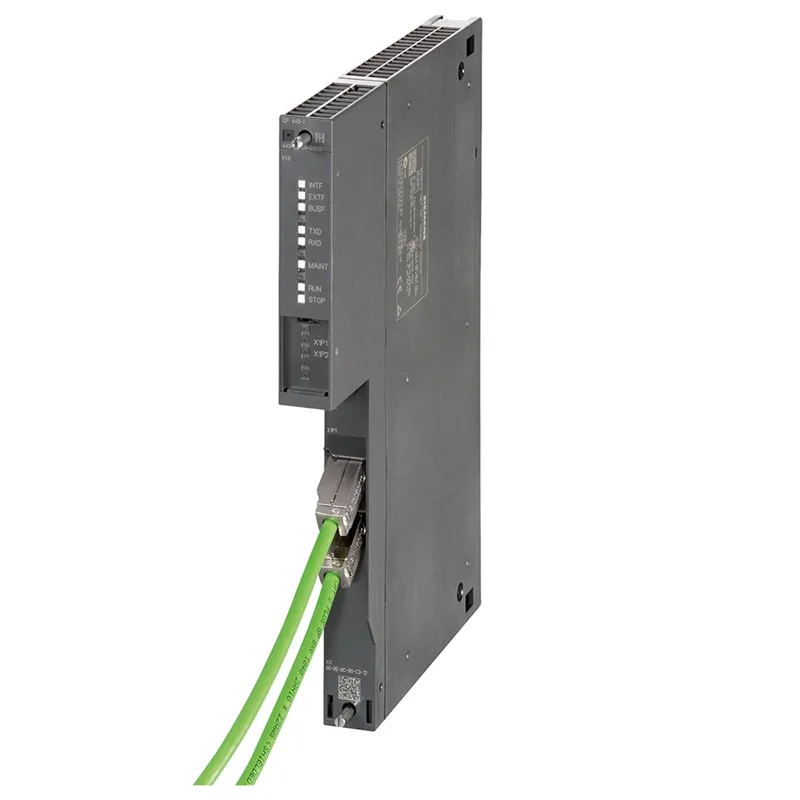

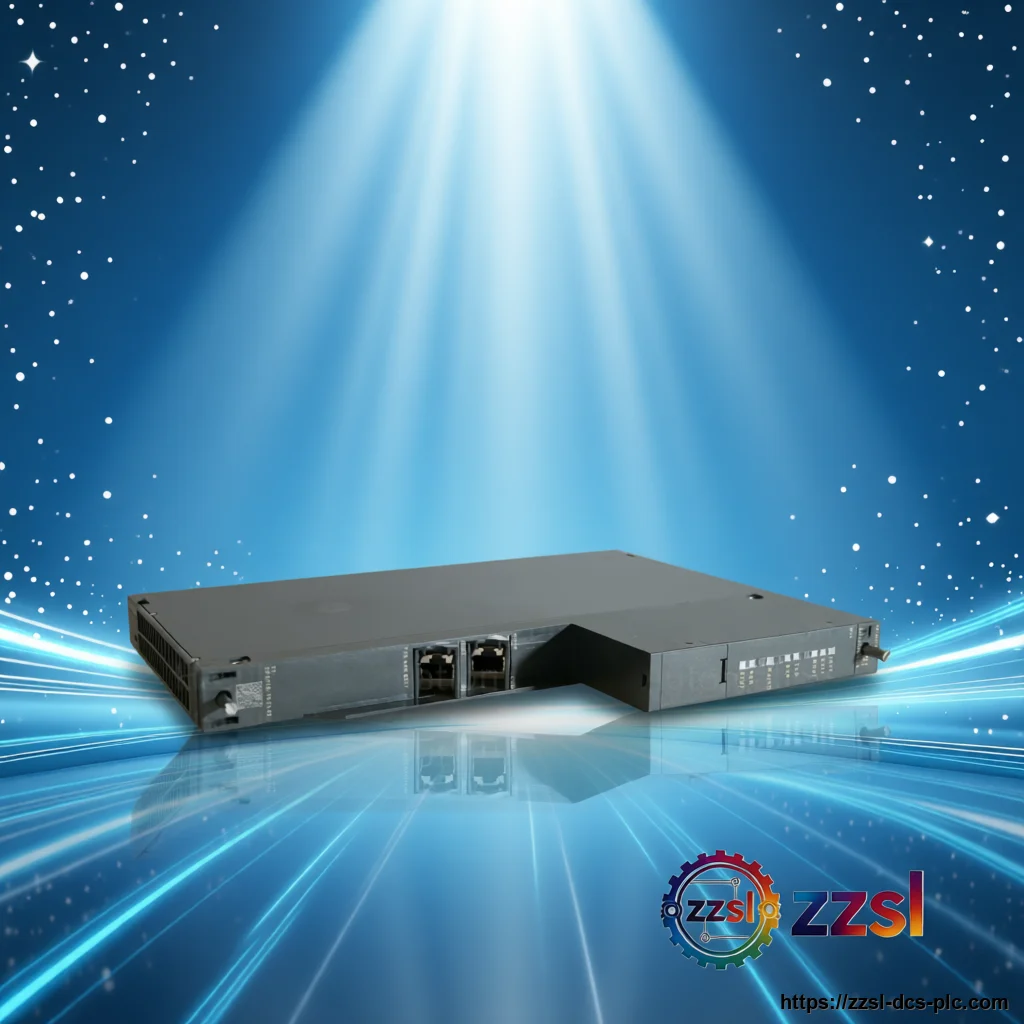

Siemens Communications processor 6GK7443-1EX30-0XE0
6GK7443-1EX30-0XE0

Siemens
Siemens Communications processor 6GK7443-1EX30-0XE0
Siemens 6GK7443-1EX30-0XE0 Communications processor. For SIMATIC S7-400 / SIMATIC NET Industrial Ethernet and PROFINET. Worldwide shipping from stock. Price &a…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6GK7443-1EX30-0XE0 |
| Official Product Name | Communications processor CP 443-1 |
| Applicable System | SIMATIC S7-400 / SIMATIC NET Industrial Ethernet and PROFINET |
| Product Type | Communications processor (Ethernet / PROFINET) |
| Equivalent Standard | N/A |
| Product Status | In Stock |
| Product family | CP 443-1 (SIMATIC NET) |
| Interfaces | 2 x RJ45, 10/100 Mbit/s, integrated 2-port switch |
| Protocols | ISO, TCP, UDP, PROFINET IO controller, S7 communication, SEND/RECEIVE |
| Supply voltage | 5 V DC (via S7-400 backplane bus) |
| Module dimensions (W x H x D) | 25 x 290 x 210 mm |
| Packaging dimensions (L x W x H) | 35 x 129 x 142 mm |
| Net weight | 0.833 kg |
| Operating temperature | 0 to 60 °C |
| Degree of protection | IP20 |
| EAN | 4019169206709 |
| Country of origin | Germany |
| Article number | 6GK7443-1EX30-0XE0 |
Product Description
Siemens 6GK7443-1EX30-0XE0 Communications processor. For SIMATIC S7-400 / SIMATIC NET Industrial Ethernet and PROFINET. Worldwide shipping from stock.
It provides two 10/100 Mbit/s RJ45 ports with an integrated two-port switch, so line topologies can be built without an external switch. The module acts as a PROFINET IO controller or IO device and supports S7 communication, open communication (SEND/RECEIVE), S7 routing and time-of-day synchronization. It also offers extended web diagnostics, an IP access control list and PROFIenergy support. The CP 443-1 can be used for redundant S7 communication in SIMATIC H systems and for fail-safe PROFIsafe applications with an S7-400 F-CPU. The Siemens 6GK7443-1EX30-0XE0 is the CP 443-1 communications processor that connects a SIMATIC S7-400 controller to Industrial Ethernet and PROFINET networks.
Basic Product Information
- Two 10/100 Mbit/s RJ45 ports with an integrated two-port switch for line topology
- PROFINET IO controller and IO device; supports media redundancy (MRP) as manager or client
- S7 communication, open communication (SEND/RECEIVE), S7 routing and time-of-day synchronization
- Extended web diagnostics, IP access control list, Fast Startup and PROFIenergy support
- Suitable for redundant S7 communication in SIMATIC H systems and PROFIsafe with an S7-400 F-CPU
- Connects SIMATIC S7-400 controllers to Industrial Ethernet and PROFINET networks
Technical Specifications
Version & Model Difference
The CP 443-1 (6GK7443-1EX30-0XE0) is the standard two-port Ethernet/PROFINET communications processor for the S7-400. It is distinct from the CP 443-1 Advanced variant, which adds extra ports and additional IT functions. Firmware downgrades are no longer possible starting with firmware V3.3.28, and the part number is a single-width S7-400 module that occupies one slot in the rack.
Application Scenarios
- Integrating SIMATIC S7-400 systems into PROFINET IO networks
- High-availability S7-400H plants requiring redundant S7 communication
- Remote diagnostics and web-based monitoring of S7-400 controllers
- Data exchange with higher-level MES/ERP systems over standard IT protocols
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6GK7443-1EX30-0XE0 used for?
It is the CP 443-1 communications processor that connects a SIMATIC S7-400 controller to Industrial Ethernet and PROFINET networks, providing two RJ45 ports, S7 communication and PROFINET IO controller functions.
Which controllers is the CP 443-1 compatible with?
It is designed for SIMATIC S7-400 racks, including S7-400H and S7-400 F-CPUs. The module occupies one slot and is powered from the S7-400 backplane bus.
Does the CP 443-1 support media redundancy?
Yes. It supports Media Redundancy Protocol (MRP) and can operate as MRP manager or MRP client in a ring topology.
Can the module be replaced without a programming device?
Yes. The CP 443-1 is a standard S7-400 module that can be replaced without a programming device, and it operates without a fan.
