Siemens Industrial Ethernet 6GK7343-1EX30-0XE0
6GK7343-1EX30-0XE0

Siemens

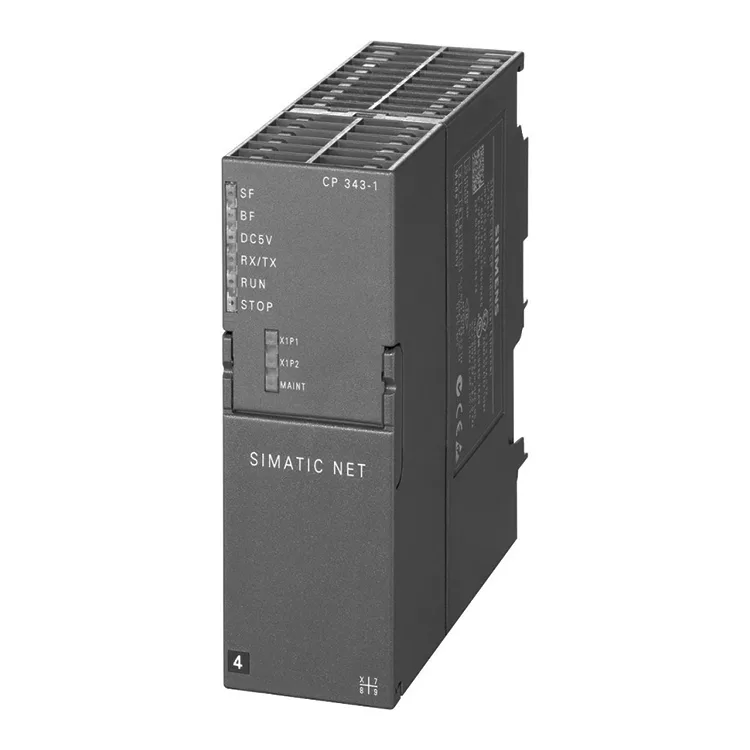

Siemens Industrial Ethernet 6GK7343-1EX30-0XE0
Siemens 6GK7343-1EX30-0XE0 Industrial Ethernet. For SIMATIC S7-300 / C7-300. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6GK7343-1EX30-0XE0 |
| Official Product Name | SIMATIC NET CP 343-1 communication processor |
| Applicable System | SIMATIC S7-300 / C7-300 (and SINUMERIK 840D power line) |
| Product Type | Industrial Ethernet / PROFINET communications processor (CP) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Product family | SIMATIC NET CP 343-1 |
| Product type | Communications processor (CP) |
| Hardware product version | 7 |
| Firmware version | V3.0 |
| Interfaces | 2 x RJ45, 10/100 Mbit/s (integrated 2-port switch, ERTEC 200) |
| Supported roles | PROFINET IO controller / PROFINET IO device |
| Protocols | ISO, TCP/IP, RFC1006, S7 communication, SEND/RECEIVE, multicast, DHCP, NTC |
| Supply voltage | 24 V DC (external) plus 5 V DC from backplane bus |
| Current consumption (typ.) | 0.16 A at 24 V DC |
| Power loss (typ.) | Approx. 5.8 W |
| Max. SEND/RECEIVE connections | 16 |
| Max. S7 communication connections | 16 |
| PROFINET IO controller devices | Up to 32 IO devices |
| Protection class | IP20 |
| Mounting | S7-300 rail (single-width module) |
| Dimensions (W x H x D) | 40 x 125 x 120 mm |
| Weight | Approx. 0.22 kg |
| Configuration software | STEP 7 V5.4 SP2 or higher / STEP 7 Professional (TIA Portal) V11 or higher |
| Manufacturer | Siemens |
Product Description
Siemens 6GK7343-1EX30-0XE0 Industrial Ethernet. For SIMATIC S7-300 / C7-300. Supplied with full traceability and documentation. Worldwide shipping from stock.
It provides an integrated ERTEC 200 two-port switch with two RJ45 sockets (10/100 Mbit/s), allowing line topologies without an external switch. The module operates as a PROFINET IO controller or IO device and supports S7 communication, fetch/write, SEND/RECEIVE with RFC1006, multicast, DHCP and NTC clock synchronisation. It is configured with STEP 7 and mounts on the S7-300 rail as a single-width module. The Siemens 6GK7343-1EX30-0XE0 is the SIMATIC NET CP 343-1 communications processor that connects SIMATIC S7-300 and C7-300 controllers to Industrial Ethernet via ISO and TCP/IP.
Basic Product Information
- Operates as a PROFINET IO controller or a PROFINET IO device
- ISO and TCP/IP communication including SEND/RECEIVE with RFC1006, fetch/write and S7 communication
- Multicast, DHCP, NTC clock synchronisation and diagnostics, with initialisation over the LAN
- Single-width S7-300 rail module configured with STEP 7
- Integrated ERTEC 200 two-port switch with 2 x RJ45 sockets at 10/100 Mbit/s for line topology without an external switch
Technical Specifications
Version & Model Difference
The 6GK7343-1EX30-0XE0 is the full-function CP 343-1 for S7-300 and should not be confused with the reduced CP 343-1 Lean variant. It supports both PROFINET IO controller and IO device roles, integrated two-port switching and the complete SEND/RECEIVE and S7 communication set. Newer replacement parts such as the CP 343-1 Advanced (6GK7343-1EX41-0XE0) add extra IT and redundancy features, so confirm the module type against your existing configuration before substituting.
Application Scenarios
- Adding Industrial Ethernet / PROFINET connectivity to an existing S7-300 station
- Connecting S7-300 controllers to SCADA, MES and higher-level networks
- PROFINET IO device integration into a plant network
- Retrofit of legacy S7-300 systems that lack onboard Ethernet
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Is 6GK7343-1EX30-0XE0 the CP 343-1 or the CP 343-1 Lean?
It is the full CP 343-1 communications processor, not the Lean variant. It supports both PROFINET IO controller and IO device roles and an integrated ERTEC 200 two-port switch.
How many RJ45 ports does the CP 343-1 have?
It has two RJ45 sockets at 10/100 Mbit/s wired through an integrated two-port switch, so devices can be daisy-chained in a line topology without an external switch.
Which protocols are supported?
ISO, TCP/IP and SEND/RECEIVE with RFC1006, plus S7 communication, fetch/write, multicast, DHCP and NTC clock synchronisation, with diagnostics.
What software is needed to configure the module?
STEP 7 V5.4 SP2 or higher, or STEP 7 Professional (TIA Portal) V11 or higher.
