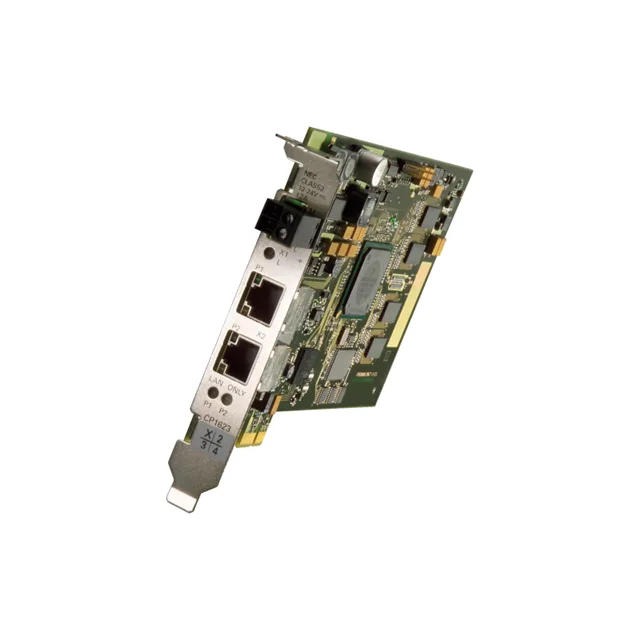

Siemens PCI Express Communication Processor 6GK1162-3AA00
6GK1162-3AA00

Siemens
Siemens PCI Express Communication Processor 6GK1162-3AA00
Siemens 6GK1162-3AA00 PCI Express Communication Processor. For SIMATIC NET / PG-PC. Supplied with full traceability and documentation. Request a quote today. P…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6GK1162-3AA00 |
| Official Product Name | SIMATIC NET CP 1623 Communication Processor |
| Applicable System | SIMATIC NET / PG-PC (S7-400H, PCS 7) |
| Product Type | PCI Express Communication Processor (Industrial Ethernet) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Bus Interface | PCI Express x1 (3.3 V / 12 V) |
| Network Interface | 2 x RJ45 (integrated 2-port switch) |
| Transmission Rate | 10 / 100 / 1000 Mbit/s |
| Protocols | HARDNET-IE S7, S7-REDCONNECT, TCP/IP |
| S7 Connections | max 120 |
| Power Supply | 3.3 V (max 0.85 A) + 12 V (max 0.4 A) from PCIe; optional external 10.5-32 V DC (24 V) |
| Power Loss | 7.6 W |
| Operating Temperature | 5 ... 55 C |
| Storage Temperature | -20 ... +60 C |
| Dimensions (W x H x D) | 18 x 167 x 111 mm |
| Weight | 0.212 kg |
| Lifecycle Status | Phase-out announced (PM300) |
| Required Software | SIMATIC NET CD V7.0 HF1 or higher |
| Product Designation | CP 1623 |
Product Description
It integrates a 2-port RJ45 switch so the card can pass through to the next device without an external switch, and uses the hardened HARDNET-IE S7 protocol with S7-REDCONNECT for S7-400H redundancy. Up to 120 S7 connections are supported on a single low-profile PCIe card. Configuration is done in STEP 7 / NCM PC / PCS 7 using the SIMATIC NET software (released as of CD V7.0 HF1). The Siemens 6GK1162-3AA00 is the CP 1623, a PCI Express x1 communication processor that connects a PG/PC to Industrial Ethernet at 10/100/1000 Mbit/s for SIMATIC S7 and PCS 7 communication.
Basic Product Information
- 10/100/1000 Mbit/s Gigabit Industrial Ethernet with 2-port RJ45 switch
- Hardened HARDNET-IE S7 protocol with S7-REDCONNECT for S7-400H redundancy
- Up to 120 S7 connections on a single low-profile card
- Configured via SIMATIC NET software (CD V7.0 HF1 or higher)
- PCI Express x1 interface for modern PG/PC platforms
Technical Specifications
Version & Model Difference
The 6GK1162-3AA00 (CP 1623) is the Gigabit, PCIe successor to the CP 1613 A2 (6GK1161-3AA01, PCI). It adds 1000 Mbit/s speed, a 2-port RJ45 switch and a PCIe x1 interface while keeping STEP 7 / SIMATIC NET configuration compatible. Choose CP 1623 when the PG/PC has a PCIe slot; choose CP 1613 A2 only for legacy PCI systems.
Application Scenarios
- Connecting engineering PG/PC to SIMATIC S7-400H redundant systems over Gigabit Ethernet
- PCS 7 operator and engineering stations in process automation
- Modern PG/PCs and industrial PCs with PCIe slots
- Line topologies thanks to the integrated 2-port RJ45 switch
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How does the CP 1623 differ from the CP 1613 A2?
The CP 1623 is a PCIe x1 Gigabit (10/100/1000 Mbit/s) card with an integrated 2-port RJ45 switch, whereas the CP 1613 A2 is a 100 Mbit/s PCI card. Software configuration is compatible between them.
Which software version is required?
It is released with SIMATIC NET CD V7.0 HF1 or higher; older SIMATIC NET versions do not support the CP 1623.
Can it connect to S7-400H redundant controllers?
Yes. With S7-REDCONNECT it supports redundant communication to S7-400H systems over Industrial Ethernet.
Is the CP 1623 still available?
Its lifecycle is in 'phase-out announced' status; it remains orderable from spare-parts channels. Confirm current availability with us for project planning.
