6GK1161-3AA01
Siemens PCI Communication Processor 6GK1161-3AA01
Siemens
Siemens PCI Communication Processor 6GK1161-3AA01
Home > Siemens > SIMATIC NET Communication Processors > 6GK1161-3AA01 Need Siemens 6GK1161-3AA01? PCI Communication Processor for SIMATIC NET / PG-PC.…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6GK1161-3AA01 |
| Official Product Name | SIMATIC NET CP 1613 A2 Communication Processor |
| Applicable System | SIMATIC NET / PG-PC (S7-400H, PCS 7) |
| Product Type | PCI Communication Processor (Industrial Ethernet) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock (spare parts) |
| Bus Interface | PCI 2.2, 32-bit, 33/66 MHz, 3.3 V/5 V universal |
| Network Interface | 1 x RJ45 (10/100BaseTX) + 1 x 15-pin ITP |
| Transmission Rate | 10 / 100 Mbit/s |
| Protocols | ISO (hardened), TCP/IP, UDP, PROFINET IO (basic) |
| S7/PG Connections | max 120 ; Optimized S7: max 40 |
| Power Supply | 5 V (max 0.45 A) + 12 V (max 0.5 A) from PCI; optional external 10.5-32 V DC |
| Power Loss | 4 W |
| Operating Temperature | 5 ... 55 C |
| Dimensions (W x H x D) | 21.6 x 107 x 167 mm (half-length PCI) |
| Weight | 0.213 kg |
| Protection Class | IP00 |
| Required Software | SIMATIC NET CD V6.2 SP1+, HARDNET-IE S7 / S7-REDCONNECT |
| Product Designation | CP 1613 A2 |
Product Description

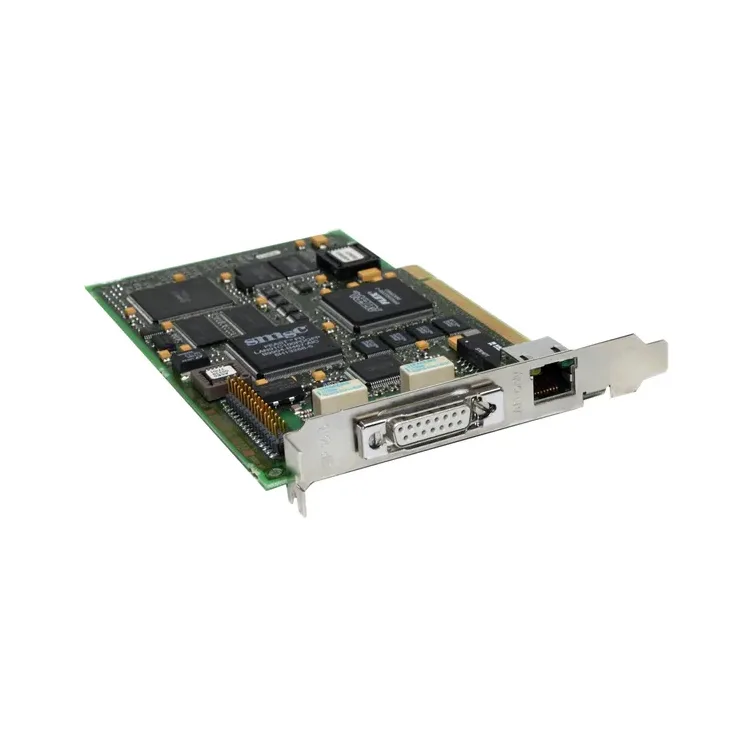

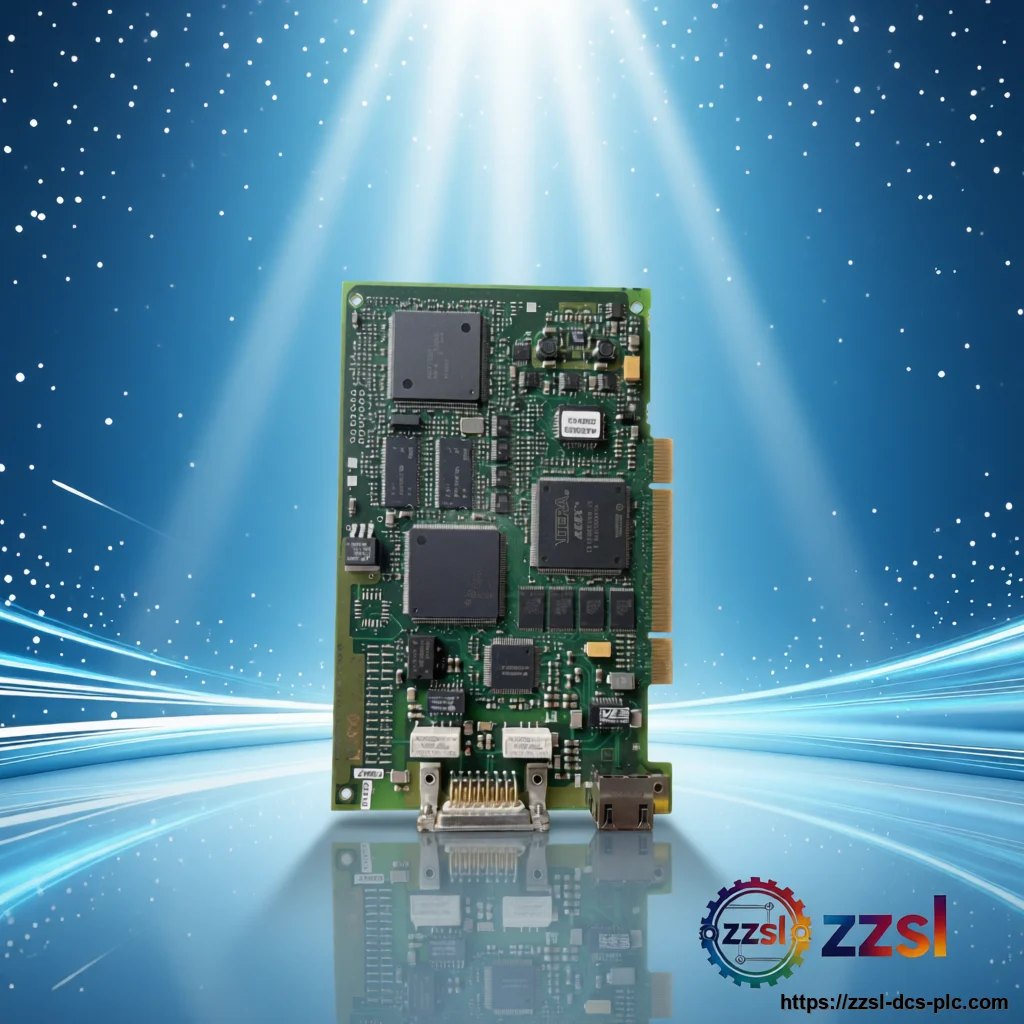

It combines a hardened ISO protocol (ASIC) with a TCP/IP software stack and supports ISO system redundancy (RCW) to two S7-400H CP443-1 controllers with automatic switchover. Up to 120 S7/PG connections and 40 optimized S7 connections are handled on a single half-length PCI card. Configuration is done in STEP 7 / NCM PC / PCS 7 with the SIMATIC NET software (CD V6.2 SP1 or higher). The Siemens 6GK1161-3AA01 is the CP 1613 A2, a PCI communication processor that connects a PG/PC to Industrial Ethernet at 10/100 Mbit/s for SIMATIC S7 and PCS 7 communication.
Basic Product Information
- 10/100 Mbit/s Industrial Ethernet via RJ45 and 15-pin ITP
- Hardened ISO protocol plus TCP/IP, UDP and basic PROFINET IO
- ISO redundancy (RCW) for connection to S7-400H systems
- Up to 120 S7/PG connections; configured via SIMATIC NET (HARDNET-IE S7)
- PCI 2.2 card, 32-bit, 33/66 MHz, 3.3 V/5 V universal key
Technical Specifications
Version & Model Difference
The 6GK1161-3AA01 (CP 1613 A2) is the later 'A2' revision; the original 6GK1161-3AA00 only works with SIMATIC NET CD before V6.2 SP1 and is not recognized by newer software. Both are PCI cards. The modern replacement is the CP 1623 (6GK1162-3AA00, PCIe) or CP 1628 (PCIe, PCS 7), which keep software configuration compatible.
Application Scenarios
- Connecting engineering PG/PC to SIMATIC S7-400H redundant systems
- PCS 7 operator station communication over Industrial Ethernet
- Industrial networking where ISO system redundancy is required
- Legacy PG/PC with PCI slots needing 100 Mbit/s S7 communication
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the difference between CP 1613 A2 and the original CP 1613?
The A2 (6GK1161-3AA01) is recognized by SIMATIC NET CD V6.2 SP1 and later; the original 6GK1161-3AA00 is only supported by older SIMATIC NET versions.
Which software is required?
Communication needs the SIMATIC NET software (HARDNET-IE S7 / S7-1613). For S7-400H redundancy you additionally need S7-REDCONNECT; for PROFINET CBA you need the PN CBA OPC server.
Can it connect to S7-400H redundant controllers?
Yes. The CP 1613 A2 supports ISO system redundancy (RCW) and automatically switches between two CP 443-1 controllers in an S7-400H system.
What is the modern replacement?
Use the CP 1623 (6GK1162-3AA00, PCIe) or CP 1628 (PCIe, PCS 7) on modern PG/PCs; software configuration is compatible but the slot type changes from PCI to PCIe.
Need 6GK1161-3AA01?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for 6GK1161-3AA01. Our team replies within 30 minutes (working hours).
