Siemens Machine control panel 6FC5303-0AF22-0AA1
Siemens

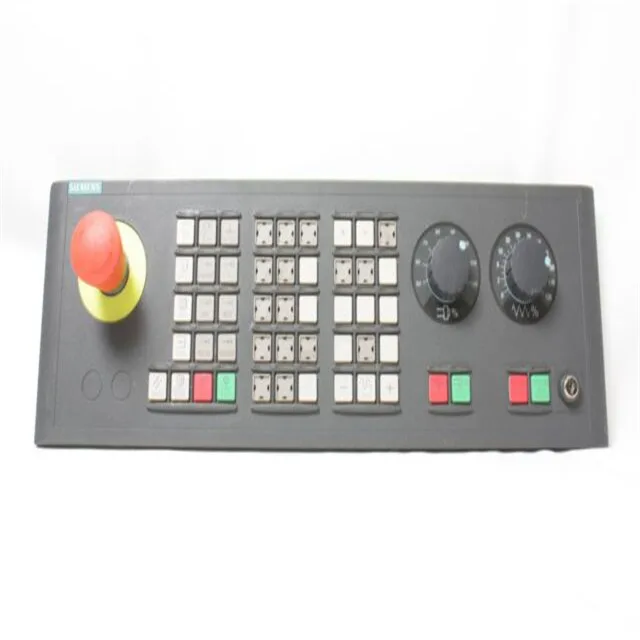

Siemens Machine control panel 6FC5303-0AF22-0AA1
Home / Spare Parts / CNC Panels / Siemens 6FC5303-0AF22-0AA1 Need Siemens 6FC5303-0AF22-0AA1? Machine control panel for SINUMERIK CNC control systems. Supplied…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6FC5303-0AF22-0AA1 |
| Official Product Name | 6FC5303-0AF22-0AA1 |
| Applicable System | SINUMERIK CNC control systems (840D, 840Di, 810D, 840D sl) |
| Product Type | Machine control panel (MCP 483C PN) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | Active |
| Supply Voltage | 24 V DC |
| Power Consumption | 21.2 W max |
| Communication | PROFINET / Industrial Ethernet |
| Width | 19 inch (483 mm) |
| Dimensions (W x H x D) | 483 x 155 x 106.3 mm |
| Mounting Cutout | 450 x 135 mm |
| Emergency Stop | 22 mm, red, ISO 13850 compliant |
| Protection Front | IP54 |
| Protection Rear | IP00 |
| Net Weight | 2.0 kg |
| Operating Temperature Front | 0 to 45 deg C |
| Operating Temperature Rear | 0 to 55 deg C |
| Storage Temperature | -25 to 55 deg C |
| Approvals | CE, cULus |
| Predecessor | 6FC5303-0AF22-0AA0 |
| Country of Origin | Germany |
| Product Type | SINUMERIK Machine Control Panel MCP 483C PN |
Product Description
It provides a dedicated operator interface for SINUMERIK CNC systems, connects via PROFINET and Industrial Ethernet, and includes a 22 mm emergency stop button for safety. Powered by 24 V DC (21.2 W max) with IP54 front protection, it is built for machine tools in automotive, aerospace and general manufacturing. The Siemens 6FC5303-0AF22-0AA1 is a SINUMERIK Machine Control Panel MCP 483C PN with a 19-inch (483 mm) width and tactile mechanical keys.
Basic Product Information
- Integrated 22 mm emergency stop button for immediate safety shutdown
- PROFINET and Industrial Ethernet communication for seamless CNC integration
- IP54 front protection for industrial environments (IP00 rear for enclosure mounting)
- 19-inch (483 mm) operator panel with tactile mechanical keys for precise machine control
Technical Specifications
Version & Model Difference
- Successor to 6FC5303-0AF22-0AA0; adds the PROFINET (PN) interface on the MCP 483C 19-inch platform while keeping the same 483 x 155 mm footprint and integrated 22 mm emergency stop.
Application Scenarios
- Operator interface for CNC machine tools and machining centers
- Control stations in automotive, aerospace and metalworking production
- Industrial automation lines requiring a 19-inch SINUMERIK MCP
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What communication interface does the MCP 483C PN use?
It connects via PROFINET and Industrial Ethernet, integrating directly with SINUMERIK CNC control systems.
What are the panel dimensions and supply voltage?
The panel is 483 x 155 x 106.3 mm (19-inch width), powered by 24 V DC with a maximum power consumption of 21.2 W.
Does it include a safety emergency stop?
Yes, it has an integrated 22 mm red emergency stop button compliant with ISO 13850 for immediate machine shutdown.
What is the ingress protection rating?
The front is rated IP54 for industrial operation and the rear is IP00, intended for mounting inside a protected enclosure.
Need 6FC5303-0AF22-0AA1?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for 6FC5303-0AF22-0AA1. Our team replies within 30 minutes (working hours).
