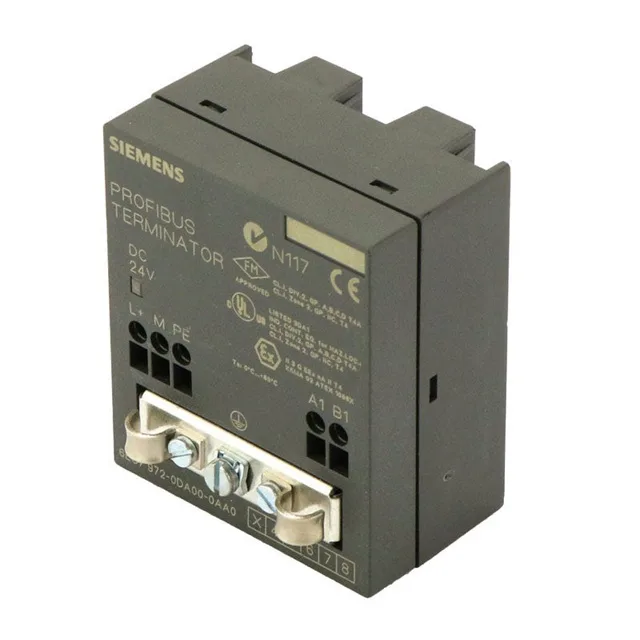

Siemens Bus terminating resistor 6ES7972-0DA00-0AA0
6ES7972-0DA00-0AA0

Siemens
Siemens Bus terminating resistor 6ES7972-0DA00-0AA0
Siemens 6ES7972-0DA00-0AA0 Bus terminating resistor. For SIMATIC PROFIBUS / MPI networks. Supplied with full traceability and documentation. Get a quote. Price…
$126.18
Current ModelAvailability on request
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7972-0DA00-0AA0 |
| Official Product Name | RS485 Terminating Resistor for PROFIBUS/MPI |
| Applicable System | SIMATIC PROFIBUS / MPI networks |
| Product Type | Bus terminating resistor |
| Equivalent Standard | IEC 61158 |
| Product Status | Active |
| Lifecycle note | Commercialized |
| For networks | PROFIBUS, MPI |
| Supply voltage | 24 V DC |
| Data rate | up to 12 Mbit/s |
| Protection class | IP20 |
| Dimensions (W x H x D) | 60 mm x 70 mm x 43 mm |
| Weight | 95 g |
| Country of origin | Germany |
| Type | RS485 terminating resistor |
Product Description
Basic Product Information
- Data rate up to 12 Mbit/s
- RS485 bus termination for PROFIBUS and MPI
Technical Specifications
Version & Model Difference
- ['6ES7972-0DA00 denotes the powered RS485 terminating resistor', 'Distinct from passive bus connectors in the 6ES7972 family']
Application Scenarios
- PROFIBUS/MPI bus termination
- PLC network end-of-line resistors
- Factory automation bus installations
- Yes, it is powered at 24 V DC.
- Contact our team for stock, pricing and the Siemens datasheet.
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the 6ES7972-0DA00-0AA0?
An RS485 terminating resistor for PROFIBUS and MPI networks, supplied at 24 V DC, up to 12 Mbit/s, in an IP20 housing.
What are its dimensions and weight?
About 60 x 70 x 43 mm and 95 g, country of origin Germany.
Does it need power?
Yes, it is powered at 24 V DC.
How do I order?
Contact our team for stock, pricing and the Siemens datasheet.
