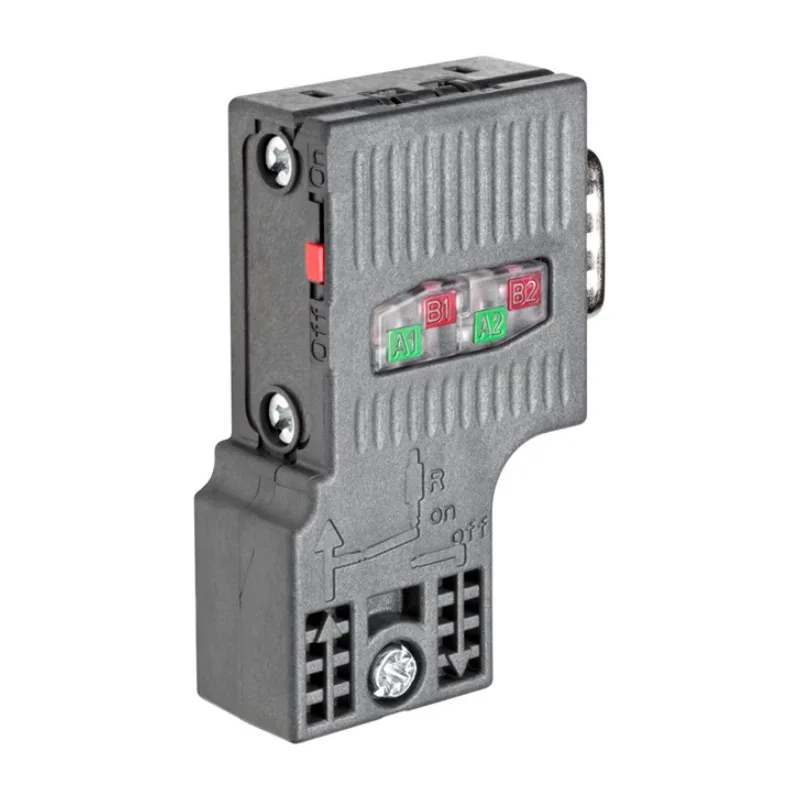

Siemens PROFIBUS DP Bus Connector 6ES7972-0BA52-0XA0
6ES7972-0BA52-0XA0

Siemens
Siemens PROFIBUS DP Bus Connector 6ES7972-0BA52-0XA0
Siemens 6ES7972-0BA52-0XA0 PROFIBUS DP Bus Connector. For SIMATIC S7-300 / S7-400 and PROFIBUS DP networks. Supplied with full traceability and documentation. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7972-0BA52-0XA0 |
| Official Product Name | SIMATIC DP PROFIBUS Bus Connector, RS485, Fast Connect, without PG socket, 90° |
| Applicable System | SIMATIC S7-300 / S7-400 and PROFIBUS DP networks |
| Product Type | PROFIBUS DP Bus Connector |
| Equivalent Standard | IEC 61158 / EN 50170 |
| Product Status | In Stock |
| Interface to network device | 9-pin Sub-D connector (RS485) |
| Cable connection | FastConnect insulation-displacement terminals (2-core PB FC cable) |
| Type of cable outlet | 90 degree |
| Terminating resistor | Integrated, selectable via slide switch |
| Dimensions (W x H x D) | 15.8 x 59 x 35.6 mm |
| Net weight | approx. 10 g |
| Degree of protection | IP20 |
| PG connection socket | No |
| Strain relief | Yes |
| Enclosure material | Plastic, silicone-free |
| Ambient temperature during operation | -25 ... +60 °C |
| Approvals | UL, RoHS (compliant since 15.09.2011) |
| Transfer rate (PROFIBUS DP) | 9.6 kbit/s ... 12 Mbit/s |
Product Description
Siemens 6ES7972-0BA52-0XA0 PROFIBUS DP Bus Connector. For SIMATIC S7-300 / S7-400 and PROFIBUS DP networks. Supplied with full traceability and documentation.
It uses FastConnect insulation-displacement termination, so the two-core PROFIBUS cable is pressed into the connector without stripping, which shortens assembly time in the field. A 90° cable outlet keeps the cable routed along the connector side for compact control-cabinet layouts, and an integrated terminating resistor can be switched in or out with a slide switch. It supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s and is supplied without a PG programming socket. The plastic housing is silicone-free, has strain relief, and carries IP20, UL and RoHS approval. The Siemens 6ES7972-0BA52-0XA0 is a SIMATIC DP RS485 bus connector that connects a PROFIBUS station to the PROFIBUS bus cable.
Basic Product Information
- 90° cable outlet with 9-pin Sub-D interface and strain relief
- Integrated terminating resistor, switchable with a slide switch
- PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s
- Silicone-free plastic housing, IP20 rated, UL and RoHS approved
- FastConnect insulation-displacement termination for fast, tool-light cable assembly
Technical Specifications
Version & Model Difference
The 6ES7972-0BA52-0XA0 is the FastConnect, 90°, no-PG member of the SIMATIC DP PROFIBUS connector family and supersedes the older screw-terminal 6ES7972-0BA12-0XA0. The 6ES7972-0BB52-0XA0 adds a PG programming socket, while the 35° 6ES7972-0BB42-0XA0 uses a screw connection with a PG port. All of these 90° and 35° variants terminate PROFIBUS segments up to 12 Mbit/s with the same integrated, switchable terminating resistor.
Application Scenarios
- Fast field wiring of PROFIBUS DP segments in S7-300 and S7-400 cabinets
- Bus termination at ET 200 distributed I/O nodes
- Connecting drives and HMIs to a PROFIBUS DP network
- Machine building and process automation with compact panel depth
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What does FastConnect mean on the 6ES7972-0BA52-0XA0?
It uses insulation-displacement terminals: the 2-core PROFIBUS FC cable is pressed into the connector without stripping the wires, which speeds up assembly and reduces wiring errors.
Does this connector include a PG socket?
No. This version has no PG programming socket. The 6ES7972-0BB52-0XA0 is the equivalent 90° connector that includes a PG port.
What is the maximum PROFIBUS transmission rate?
It supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s.
How should the terminating resistor be set?
Switch the integrated terminating resistor ON only at the two physical ends of a PROFIBUS segment and OFF for every mid-segment node.
