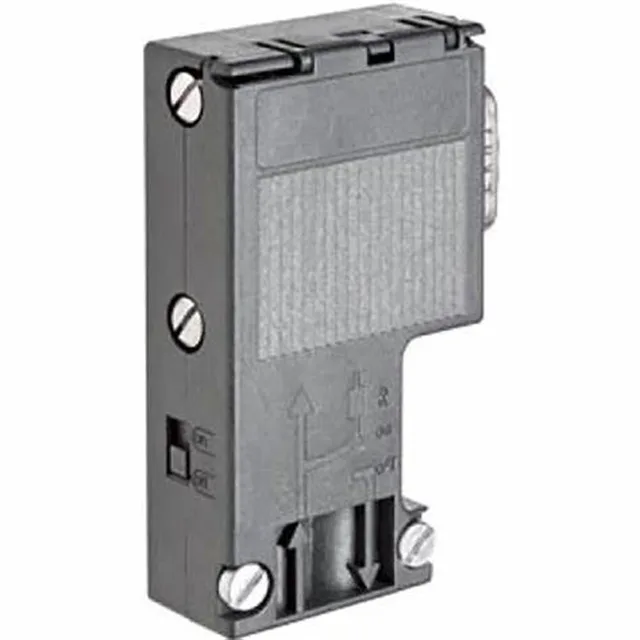

Siemens PROFIBUS DP Bus Connector 6ES7972-0BA12-0XA0
6ES7972-0BA12-0XA0

Siemens
Siemens PROFIBUS DP Bus Connector 6ES7972-0BA12-0XA0
Siemens 6ES7972-0BA12-0XA0 PROFIBUS DP Bus Connector. For SIMATIC S7-300 / S7-400 and PROFIBUS DP networks. Supplied with full traceability and documentation. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7972-0BA12-0XA0 |
| Official Product Name | SIMATIC DP PROFIBUS Bus Connector, RS485, screw, without PG socket, 90° |
| Applicable System | SIMATIC S7-300 / S7-400 and PROFIBUS DP networks |
| Product Type | PROFIBUS DP Bus Connector |
| Equivalent Standard | IEC 61158 / EN 50170 |
| Product Status | In Stock |
| Interface to network device | 9-pin Sub-D connector (RS485) |
| Cable connection | Screw terminals |
| Type of cable outlet | 90 degree |
| Terminating resistor | Integrated, selectable via slide switch with isolating function |
| Dimensions (W x H x D) | 15.8 x 64 x 35.6 mm |
| Net weight | approx. 10 g |
| Degree of protection | IP20 |
| PG connection socket | No |
| Strain relief | Yes |
| Enclosure material | Plastic, silicone-free |
| Ambient temperature during operation | -25 ... +60 °C |
| Approvals | UL, RoHS |
| Transfer rate (PROFIBUS DP) | 9.6 kbit/s ... 12 Mbit/s |
Product Description
Siemens 6ES7972-0BA12-0XA0 PROFIBUS DP Bus Connector. For SIMATIC S7-300 / S7-400 and PROFIBUS DP networks. Supplied with full traceability and documentation.
It uses a 90° cable outlet with screw terminals and a 9-pin Sub-D interface, so it fits neatly into S7-300 and S7-400 control cabinets where mounting depth is limited. An integrated terminating resistor with an isolating function is switched on or off through a slide switch, letting the same part serve as a mid-segment node or a physical end-of-line terminator. It supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s and is supplied without a PG programming socket. The plastic housing is silicone-free, rated IP20 and carries UL and RoHS approval. The Siemens 6ES7972-0BA12-0XA0 is a SIMATIC NET RS485 bus connector that links a PROFIBUS DP node to the PROFIBUS bus cable.
Basic Product Information
- Integrated terminating resistor with isolating function, switched via slide switch
- PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s
- Supplied without a PG (programming) socket for mid-segment node use
- Silicone-free plastic housing, IP20 rated, with UL and RoHS approval
- 90° cable outlet with screw-terminal cable connection and 9-pin Sub-D interface
Technical Specifications
Version & Model Difference
The 6ES7972-0BA12-0XA0 is the early-generation 90° PROFIBUS connector with screw terminals and no PG socket. Later Siemens revisions include the 35° 6ES7972-0BA42-0XA0 and the 90° FastConnect 6ES7972-0BA52-0XA0, which use insulation-displacement cable termination for faster assembly. The 6ES7972-0BB12-0XA0 is the mechanically similar sibling that adds a PG programming socket, and the low-cost 6ES7972-0BA30-0XA0 uses a 30° outlet without an integrated terminating resistor.
Application Scenarios
- PROFIBUS DP cabling in SIMATIC S7-300 and S7-400 control cabinets
- Terminating PROFIBUS segments at ET 200 distributed I/O nodes
- Connecting SINAMICS and MICROMASTER drives to a PROFIBUS network
- Machine-tool, process and factory automation with limited cabinet depth
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Does the 6ES7972-0BA12-0XA0 include a PG programming socket?
No. This version is supplied without a PG socket. If you need a programming port, the 6ES7972-0BB12-0XA0 is the equivalent connector with a PG socket.
What is the maximum transmission rate this connector supports?
It supports PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s.
When should the terminating resistor be switched on?
Switch the integrated terminating resistor ON only at the two physical ends of a PROFIBUS segment, and OFF for all mid-segment nodes.
What kind of cable connection does it use?
This variant uses screw terminals for the PROFIBUS cable; for faster insulation-displacement wiring choose the FastConnect 6ES7972-0BA52-0XA0.
