Siemens · PLC Module

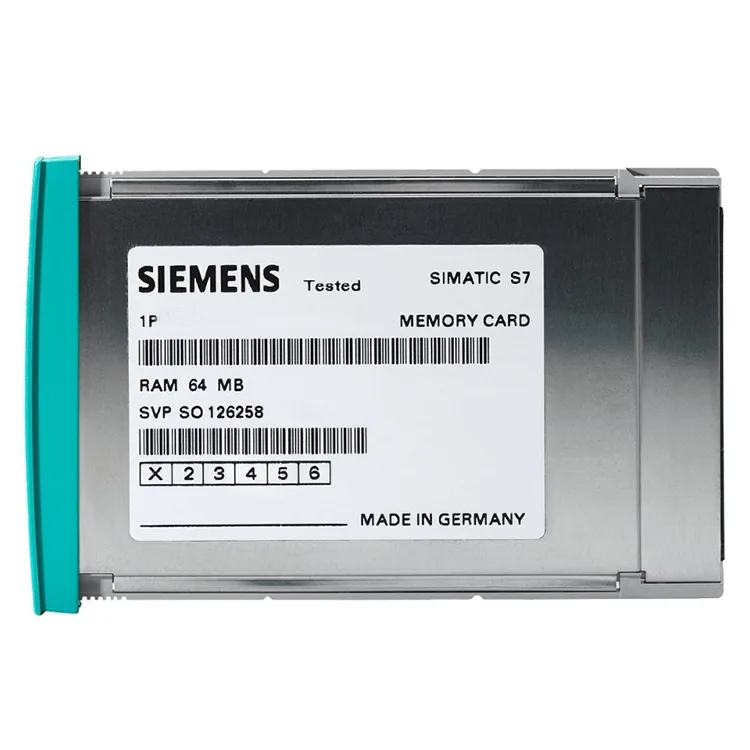

Siemens Memory card 6ES7952-0KH00-0AA0

6ES7952-0KH00-0AA0

Siemens Siemens

Siemens Memory card 6ES7952-0KH00-0AA0

Siemens 6ES7952-0KH00-0AA0 Memory card. For SIMATIC S7-400. Supplied with full traceability and documentation. Request a quote and current availability today. …

$191.30
Availability on request

Quoted price from our sales team

Specifications

BrandSiemens
Model Number6ES7952-0KH00-0AA0
Official Product NameSIMATIC S7 memory card for S7-400, long design, 5 V Flash EPROM, 256 Kbyte
Applicable SystemSIMATIC S7-400 (all CPUs)
Product TypeMemory card (Flash EPROM / load memory)
Equivalent StandardN/A
Product StatusIn Stock
SeriesSIMATIC S7-400
Memory typeFlash EPROM (FEPROM), 5 V
Memory size256 Kbyte
DesignLong
VolatilityNon-volatile
CompatibilitySIMATIC S7-400 (all CPUs)
Battery required for program retentionNo
Weightapprox. 40 to 51 g
Country of originGermany
Product typeMemory card

Product Description

As non-volatile load memory it stores the user program without needing a backup battery, and on power-up the CPU automatically copies the program from the card into work memory and starts execution. It is intended for final, stable program deployment rather than development, since FEPROM cards do not support online block modification or RUN-mode program downloads. All S7-400 CPUs accept the long-design card in their standard memory card slot, and no firmware change is required when upgrading from a smaller card. The Siemens 6ES7952-0KH00-0AA0 is a 256 KB Flash EPROM (FEPROM) memory card in the long design for the SIMATIC S7-400 controller family.

Basic Product Information

  • Non-volatile, retaining the user program without a backup battery
  • Long design that fits the standard S7-400 memory card slot
  • CPU copies the program from the card into work memory on power-up
  • No hardware or firmware change needed when migrating from a smaller card
  • RoHS compliant, manufactured in Germany
  • 256 Kbyte Flash EPROM (FEPROM) load memory for SIMATIC S7-400 CPUs

Technical Specifications

Version & Model Difference

The 6ES7952-0KH00-0AA0 is the 256 KB long-design FEPROM card; other order numbers in the 6ES7952 series provide different capacities (for example 64 KB, 128 KB, 512 KB, 1 MB, 2 MB) and both RAM and FEPROM types. FEPROM is chosen for battery-free final deployment, whereas RAM cards (such as 6ES7952-0AF00-0AA0) are used during commissioning where online block changes are required.

Application Scenarios

  • Storing the final user program on S7-400 CPUs without a backup battery
  • Replacing an older or undersized S7-400 memory card during a program update
  • Long-term program backup for S7-400 process control and plant automation
  • Retrofitting and maintaining legacy SIMATIC S7-400 systems
  • No. As a Flash EPROM card it retains the user program without a battery, although the CPU itself still needs a battery to keep retentive runtime data such as flags, timers and counters.
  • Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
  • Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
  • Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
  • Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
  • Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
  • Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY

Frequently Asked Questions

Does the 6ES7952-0KH00-0AA0 need a backup battery?

No. As a Flash EPROM card it retains the user program without a battery, although the CPU itself still needs a battery to keep retentive runtime data such as flags, timers and counters.

Which controllers accept this memory card?

All SIMATIC S7-400 CPUs support the long-design Flash EPROM memory card in their standard memory card slot.

Can I modify the program online while using this card?

No. FEPROM cards do not support online block modification or RUN-mode downloads; use a RAM card during commissioning and the FEPROM card for final deployment.

How do I download a program to the FEPROM card?

In STEP 7 SIMATIC Manager use PLC > Download User Program to Memory Card with the CPU in STOP mode; the standard Download button only writes to internal CPU RAM.
