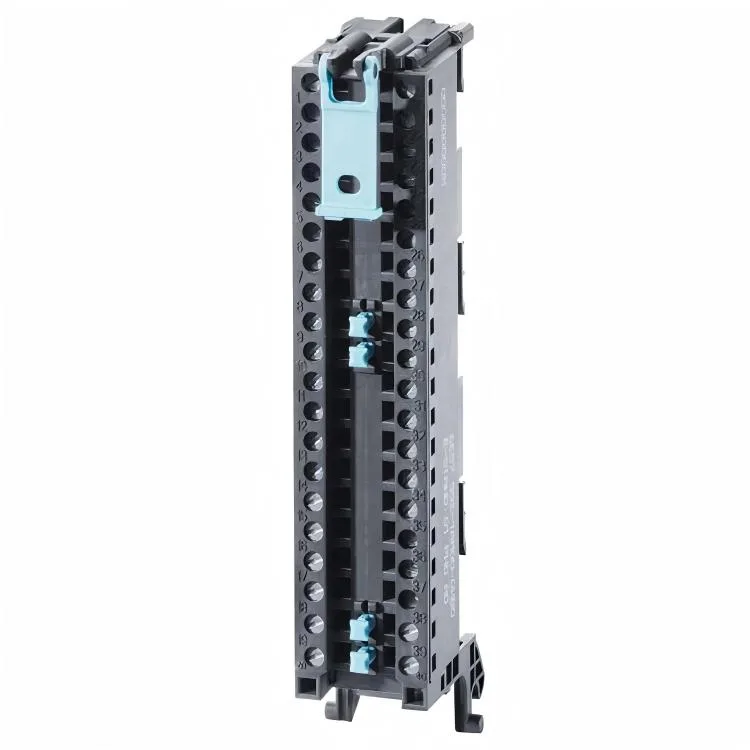

Siemens Front connector 6ES7592-1AM00-0XB0
6ES7592-1AM00-0XB0

Siemens
Siemens Front connector 6ES7592-1AM00-0XB0
Siemens 6ES7592-1AM00-0XB0 Front connector. For SIMATIC S7-1500 and ET 200MP I/O modules. Supplied with full traceability and documentation. Get a quote. Price…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7592-1AM00-0XB0 |
| Official Product Name | SIMATIC S7-1500 Front Connector, screw-type connection system, 40-pole |
| Applicable System | SIMATIC S7-1500 and ET 200MP I/O modules (35 mm wide) |
| Product Type | Front connector / terminal block accessory |
| Equivalent Standard | Screw terminals; wire end ferrules per DIN 46228 supported |
| Product Status | In Stock |
| Connection System | Screw-type, 40-pole |
| Suitable Module Width | 35 mm |
| Connectable Conductor Cross-Section | 0.25 to 1.5 mm2 (solid and stranded) |
| AWG Range | 24 to 16 |
| Stripped Length | 10 to 11 mm |
| Tightening Torque | 0.4 to 0.7 N·m |
| Screwdriver | Conical, 3 to 3.5 mm |
| Dimensions (W x H x D) | approx. 25.5 x 131 x 37 mm |
| Net Weight | approx. 0.123 kg |
| Included Accessories | 4 potential bridges and 1 cable tie |
| Ambient Operating Temperature | 0 to +60 °C |
| Country of Origin | Germany |
| Product Lifecycle | PM300 - Active Product |
| Article Number | 6ES7592-1AM00-0XB0 |
Product Description
It uses a screw-type connection system rated for 0.25 to 1.5 mm2 (AWG 24 to 16) conductors, so sensors, actuators and analog signals land directly at the module. The connector ships with four potential bridges and a cable tie, letting engineers build 24 V DC or 0 V potential groups without buying extra jumpers. Because the connector unplugs from the module while the wiring stays in place, a faulty signal module can be swapped during maintenance with minimal downtime. It is a genuine Siemens accessory widely used in control-cabinet building and spare-parts stock for S7-1500 systems. The Siemens 6ES7592-1AM00-0XB0 is a 40-pole front connector from the SIMATIC S7-1500 / ET 200MP family that terminates field wiring at 35 mm wide I/O modules.
Basic Product Information
- Accepts solid or stranded conductors 0.25 to 1.5 mm2 (AWG 24 to 16); one wire or two ferruled wires up to 1.5 mm2 total per terminal
- Supplied with four potential bridges and one cable tie for building potential groups and strain relief
- Tool-free module replacement: field wiring stays on the connector while the I/O module is exchanged
- Integrated shielding concept for analog and technology modules, improving EMC stability
- 40-pole screw-type terminal block arranged in two numbered rows for clear terminal assignment
Technical Specifications
Version & Model Difference
This screw-type 40-pole variant (6ES7592-1AM00-0XB0) is intended for 35 mm wide S7-1500 modules. The push-in equivalent for the same 35 mm modules is 6ES7592-1BM00-0XB0, and the 40-pole push-in version for 25 mm modules and compact CPUs is 6ES7592-1BM00-0XA0. Choose the screw version where high vibration and frequent field rewiring are expected, and the push-in version for fast, tool-light commissioning. Front connectors for 25 mm modules are normally supplied with the module, whereas this 35 mm version is ordered separately.
Application Scenarios
- Control-cabinet wiring of S7-1500 signal modules in machine and plant building
- Fast module replacement during scheduled maintenance without rewiring field cables
- Automotive, logistics, chemical and power-monitoring panels built around S7-1500 I/O
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the 6ES7592-1AM00-0XB0 used for?
It is a 40-pole screw-type front connector that terminates field wiring at 35 mm wide SIMATIC S7-1500 and ET 200MP I/O modules.
Which conductor sizes are supported?
Solid and stranded conductors from 0.25 to 1.5 mm2 (AWG 24 to 16); each terminal takes one wire, or two ferruled wires up to 1.5 mm2 total.
What is included in the scope of supply?
Siemens lists four potential bridges and one cable tie with this connector; the shielding components are supplied with the analog and technology modules.
How do I choose between the screw and push-in versions?
Pick the screw version (1AM00) for high-vibration areas and frequent rewiring, and the push-in version (1BM00-0XB0) for faster, tool-light commissioning on the same 35 mm modules.
