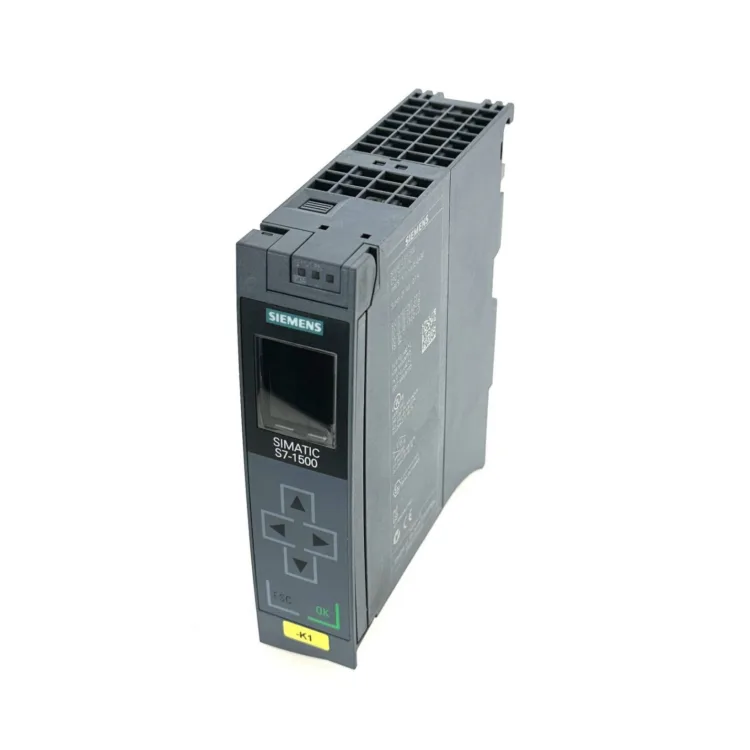

6ES7511-1AL03-0AB0

Product Description

This CPU features a powerful multi-layer concept that ensures fast processing speeds and excellent system performance. With a work memory of 150 KB for program and 1 MB for data, it offers ample space for complex control logic and data handling. The integrated PROFINET IO IRT interface supports real-time communication, enabling seamless integration into modern industrial networks. The CPU is equipped with a 60 ns bit operation time, making it one of the fastest in its class, and supports up to 24 additional communication modules via the system's backplane bus. The CPU 1511-1 PN is engineered for flexibility and scalability. It supports a maximum of 32 modules (including CPU and communication modules) and can handle up to 1,024 digital I/O points and 256 analog I/O points. The device is designed with a robust, fanless housing that operates in a wide temperature range from 0°C to 60°C, ensuring reliable performance in harsh industrial environments. It also features an integrated web server for diagnostics and remote access, and supports firmware updates via the memory card or PROFINET, keeping the system up-to-date with the latest Siemens innovations. This CPU is part of Siemens' TIA Portal engineering framework, offering intuitive configuration, programming, and diagnostics. It supports high-level languages such as LAD, FBD, STL, and SCL, and includes integrated safety functions when used with appropriate safety modules. The 6ES7511-1AL03-0AB0 is the latest version (firmware V3.0) of the CPU 1511-1 PN, succeeding earlier models with enhanced performance and additional features like improved handling of system diagnostics and faster startup times. It is an ideal choice for applications in automotive, food & beverage, chemical, and logistics industries, where precision, speed, and reliability are paramount. The Siemens 6ES7511-1AL03-0AB0 is a CPU 1511-1 PN central processing unit from the SIMATIC S7-1500 series, designed for demanding automation tasks in medium to high-end machine and plant engineering.

Basic Product Information

• Integrated PROFINET IO IRT interface with 2-port switch
• 150 KB work memory for program, 1 MB for data
• Supports up to 32 modules (CPU + 31 modules)
• Integrated web server for diagnostics and remote access
• Firmware version V3.0 with enhanced performance
• High-speed processing: 60 ns bit operation, 72 ns word operation

Technical Specifications

Version & Model Difference

The 6ES7511-1AL03-0AB0 is the third generation of the CPU 1511-1 PN, succeeding the 6ES7511-1AL02-0AB0 (firmware V2.x) and 6ES7511-1AL01-0AB0 (firmware V1.x). The AL03 version comes with firmware V3.0, which introduces improved system diagnostics, faster startup times, and enhanced PROFINET communication performance. It also supports the latest TIA Portal versions (V17 and higher) and offers additional security features like integrated firewall and secure communication. The hardware design remains largely identical, but the AL03 has an updated bootloader and supports larger memory cards (up to 32 GB) for firmware updates and data logging.

Application Scenarios

• What is the difference between the 6ES7511-1AL03-0AB0 and the previous version 6ES7511-1AL02-0AB0?

The AL03 version comes with firmware V3.0, which offers improved system diagnostics, faster startup times, and enhanced PROFINET communication. It also supports the latest TIA Portal versions (V17+) and includes additional security features like integrated firewall and secure communication. The hardware is largely the same, but the AL03 has an updated bootloader and supports larger memory cards (up to 32 GB).
